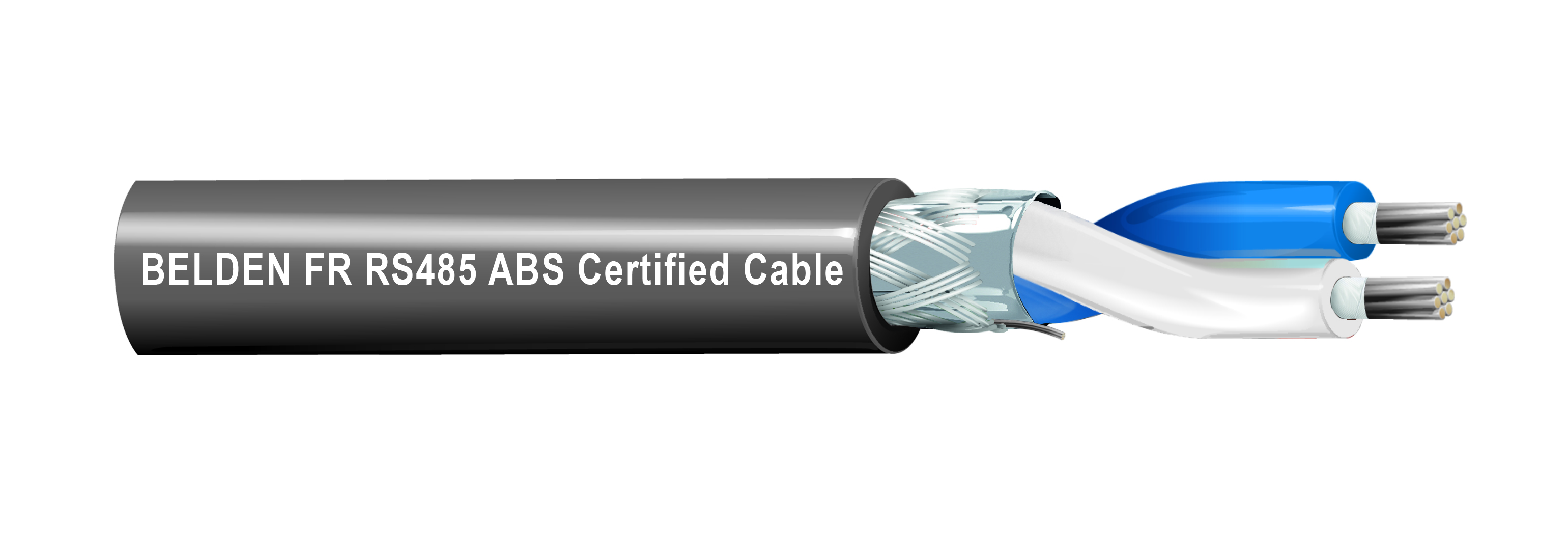

50001L

RS485 FR, 1P 22AWG Str TC, MGT, XLPE Ins, OS+TC Brd, LSZH Jkt, IEC60331-23, ABS Approved

...
RS-485 Fire Resistant, 1PR x 22AWG Stranded Tinned Copper, Mica Glass Tape, Electron-Beam Cross Linked Polyethylene Insulation, Overall Foil Plus Tinned Copper Braid Shield, Low Smoke Zero Halogen Jacket, IEC60331-23 Fire Resistant Rating, ABS Approved
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Designed for applications which are used for RS 232/422/485, CANBUS, MODBUS communication protocols. Cable applications include motion oriented machine, machine control networks, temperature controllers, control panels, machine cutting tools, auxiliary equipment, SCADA communications, etc. These cables are used in emergency evacuation / shutdown systems in building automation, offshore, oil & gas and railway applications and are flame retardant according to IEC 60332-3-22 Category A

Construction Details
Conductor
Size Stranding Material
22 AWG Stranded TC - Tinned Copper
Insulation
Material Color Code Notes
Mica Glass Tape
XLPE White & Blue *XLPE (Electron-Beam Cross Linked Polyethylene)
Outer Shield
Shield Type Material Drainwire Type
Tape Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 22 AWG (7x30) TC
Outer Jacket
Material
LSZH - Low Smoke Zero Halogen (Flame Retardant)

Overall Cable Diameter (Nominal)

8.5 mm (0.33 in)

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence
59.4 Ohm/km (18.1 Ohm/1000ft) 46 pF/m (14 pF/ft) 82 pF/m 120 Ohm

Table Notes

Nom. Inductance to Resistance ratio (L/R): 25 µH/Ω

Voltage
Voltage Rating Breakdown Voltage
300 V 1.5 kVac / 5 min

Table Notes

Voltage Test in Water : 450Vac X 4 hours

Mechanical Characteristics
Temperature
Operating
-40°C To +90°C

Table Notes

Insulation Resistance ≥ 3670 MΩ*km

Bulk Cable Weight

94.1 kg/km (63.2 lbs/1000ft)

Standards and Compliance

Environmental Suitability

Sunlight Resistance, UV Resistance, Oil Resistance, Oil Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-22

Resistance to Fire

IEC 60331-23-E90

Marine Compliance

ABS Type Approval Certificate 20-2029060-PDA

ISO/IEC Compliance

IEC 60092-376, IEC 61034-2 - Smoke Density Min Transmittance = Min. 70% as per IEC 61034-2

European Halogen Free Standards

IEC 60754-1 - Halogen Amount = Max 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

Toxicity Index 5 as per EN 50305 / NF F63-305 (ITC)

Product Notes

Notes

Smoke Density ASTM D2843 Max. 40%

History

Update and Revision

Revision Number: 0.59 Revision Date: 07-05-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
50001L 010500M Black Reel 500 m
50001L 0101000M Black Reel 1,000 m
50001L-D305 Chrome Reel 305 m 8719605219657
50001L-D500 Chrome Reel 500 m 8719605219664
50001L-D1000 Chrome Reel 1,000 m 8719605219640
50001L 060500M Grey Reel 500 m
50001L 0601000M Grey Reel 1,000 m
