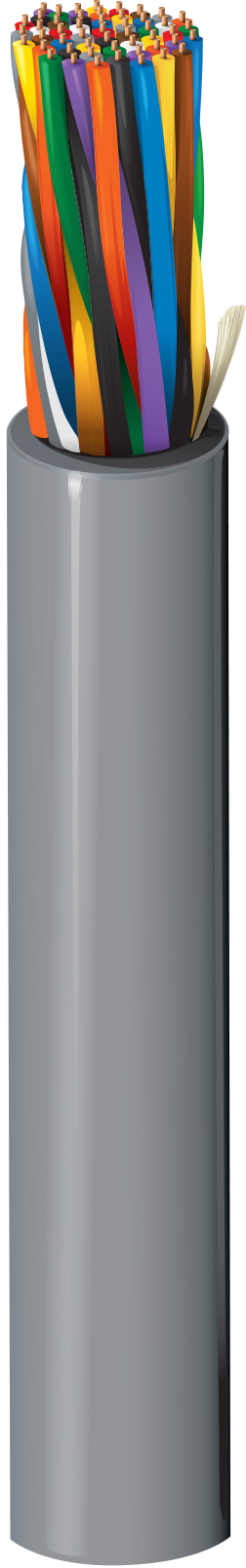

Category 5e Backbone Cable, 25 Pair, U/UTP, CMP
|
Suitable Applications |
Premise Backbone Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE |
|---|
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 AWG | Solid | BC - Bare Copper | 25 |
| Material | Color Code |
|---|---|
| FEP - Fluorinated Ethylene Propylene | Western Electric (Non-Striped) |
| Material | Nom. Diameter | Ripcord |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene | 0.478 in (12.1 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.478 in (12.1 mm) |
|---|
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 93.8 Ohm/km (28.6 Ohm/1000ft) | 330 pF/100m |
| Frequency | Max. Delay | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m | 72% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. PSNEXT [dB] | Min. RL (Return Loss) [dB] | Max./Min. Fitted Impedance [Ohm] |
|---|---|---|---|---|
| 1 | 2.0 dB/100m | 62.3 | 20.0 | 100 ± 15% |
| 4 | 4.1 dB/100m | 53.3 | 23.0 | 100 ± 15% |
| 8 | 5.8 dB/100m | 48.8 | 24.5 | 100 ± 15% |
| 10 | 6.5 dB/100m | 47.3 | 25.0 | 100 ± 15% |
| 16 | 8.2 dB/100m | 44.3 | 25.0 | 100 ± 15% |
| 20 | 9.3 dB/100m | 42.8 | 25.0 | 100 ± 15% |
| 25 | 10.4 dB/100m | 41.3 | 24.3 | 100 ± 15% |
| 31.25 | 11.7 dB/100m | 39.9 | 23.6 | 100 ± 15% |
| 62.5 | 17.0 dB/100m | 35.4 | 21.5 | 100 ± 15% |
| 100 | 22.0 dB/100m | 32.3 | 20.1 | 100 ± 15% |
| UL Voltage Rating |
|---|
| 300 V (CMP) |
| UL Temperature | Operating | Installation | Storage |
|---|---|---|---|
| 60°C | -40°C To +60°C | 0°C To +60°C | -40°C To +60°C |
| Stationary Min. | Installation Min. |
|---|---|
| 4.5 in (110 mm) | 8.75 in (222 mm) |
|
Max. Pull Tension |
150 lbs (68 kg) |
|---|---|
|
Bulk Cable Weight |
137 lbs/1000ft |
|
Environmental Suitability |
Plenum, Indoor |
|---|---|
|
Flammability / Reaction to Fire |
NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
CMP |
|
CEC / C(UL) Compliance |
CMP |
|
ICEA Compliance |
S-90-661 |
|
NEMA Compliance |
NEMA WC-63.1 |
|
Data Category |
Category 5e |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 5e |
|
Third Party Performance Verification |
Category 5e |
|
ISO/IEC Compliance |
ISO/IEC 11801-1, IEC 61156-5 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
IBDN25R |
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings. |
|---|
|
Update and Revision |
Revision Number: 0.475 Revision Date: 04-29-2024 |
|---|
| Item # | Color | Putup Type | Length | UPC |
|---|---|---|---|---|
| IBDN25P 008CUT | Gray | Cut to Length | 612825061885 | |
| IBDN25P 008CUT | Gray | Cut to Length | 1 ft | 612825061885 |
| IBDN25P 0081000 | Gray | Reel | 1,000 ft | 612825061892 |
| IBDN25P 0081000 | Gray | Reel | 1,000 ft | 612825061892 |
