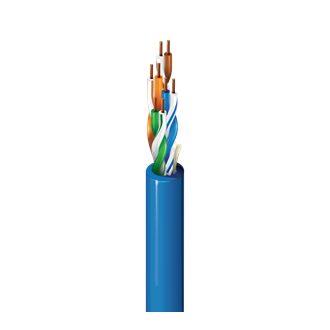

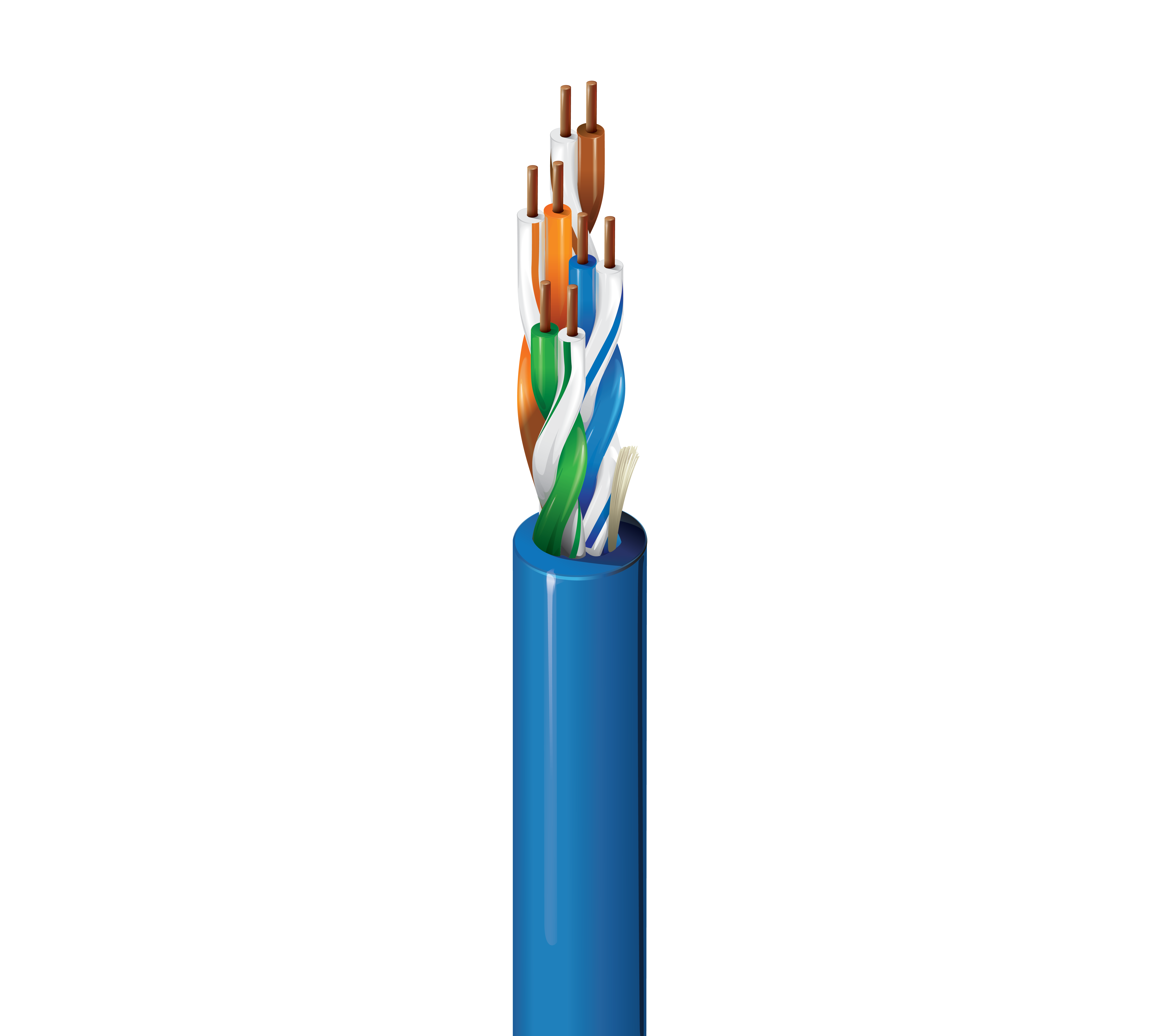

Product Number: D6UP
Category 6 Cable, 4 Pair, U/UTP, CMP
Category 6 Premise Horizontal Cable (250MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket
-
Availability:
Americas
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Surveillance, PoE++, PoE+, PoE |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
Construction Details
Conductor
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 | Solid | BC - Bare Copper | 4 |
Insulation
| Material | Color Code |
|---|---|
| PO+FEP - Polyolefin + Fluorinated Ethylene Propylene | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
Outer Jacket
| Material | Material Trade Name | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.224 in (5.69 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.224 in (5.69 mm) |
|---|
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 78 Ohm/km | 330 pF/100m |
Delay
| Frequency | Max. Delay | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 35 ns/100m | 72% |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMP) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating | Installation | Storage |
|---|---|---|---|
| 75°C | -20°C To +75°C | 0°C To +50°C | -20°C To +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.0 in (25 mm) | 2.25 |
|
Max. Pull Tension |
25 lbs (11 kg) |
|---|---|
|
Bulk Cable Weight |
25 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Plenum |
|---|---|
|
Sustainability |
Product Lens™, Environmental Product Declaration (EPD) Available |
|
Flammability / Reaction to Fire |
NFPA 262, UL 910 (Plenum) |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
CMP |
|
CEC / C(UL) Compliance |
CMP |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
|
Data Category |
Category 6 |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 6 |
|
Third Party Performance Verification |
Category 6 |
|
ISO/IEC Compliance |
ISO/IEC 11801-1, IEC 61156-5 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10 |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
D6UR |
Product Notes
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. |
|---|
History
|
Update and Revision |
Revision Number: 0.113 Revision Date: 06-03-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.113 Revision Date: 06-03-2024 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length |
|---|---|---|---|
| D6UP 010U1000 | Black | UnReel | 1,000 ft |
| D6UP D15U1000 | Blue | UnReel | 1,000 ft |
| D6UP 008U1000 | Gray | UnReel | 1,000 ft |
| D6UP 005U1000 | Green, Dark | UnReel | 1,000 ft |
