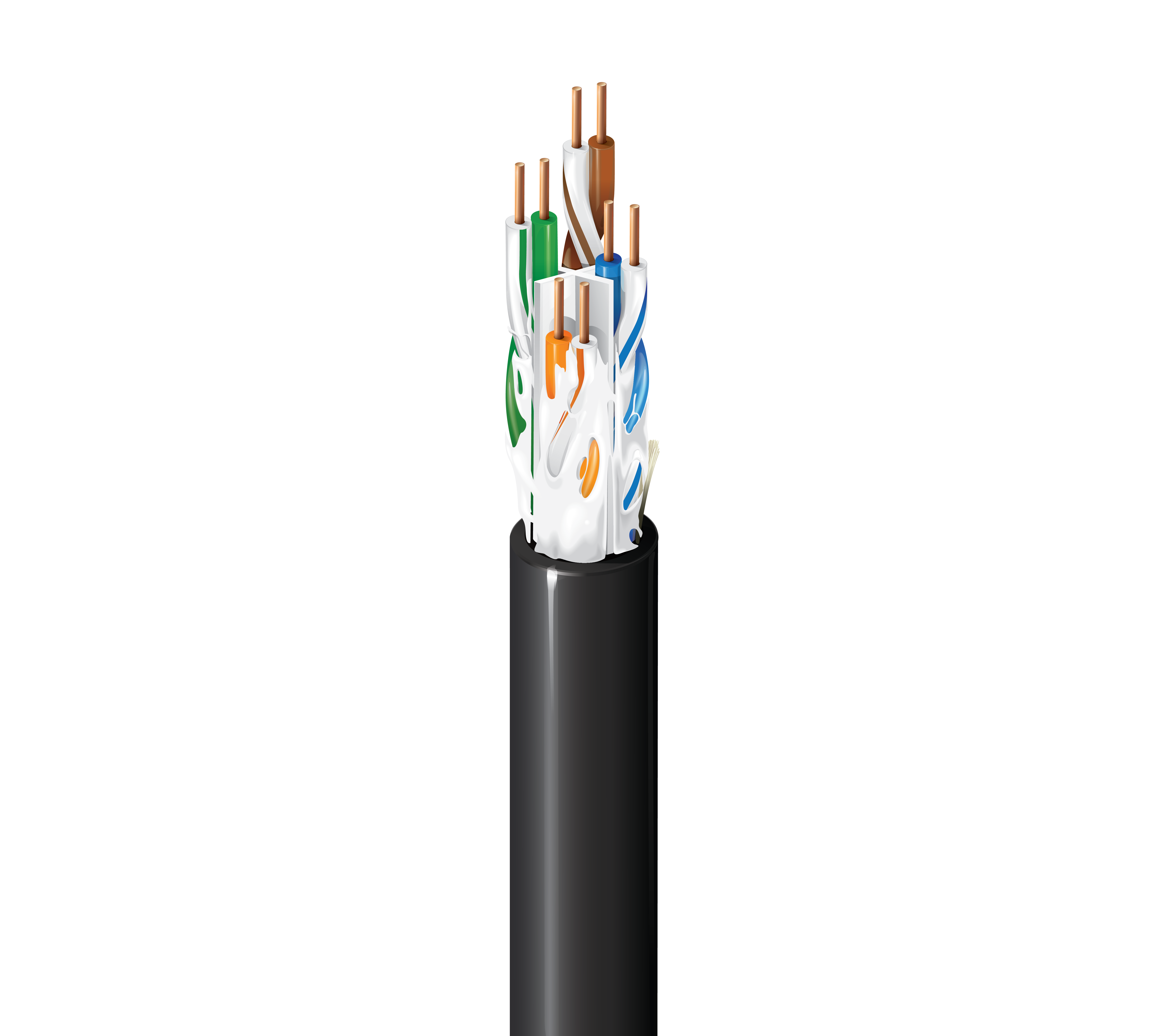

Product Number: VersaLAN I/O OSP Cat 6 UTP

Mohawk Category 6 Indoor/Outdoor Cable, 4 Pair, U/UTP, OSP/CM-LS, LSZH

Mohawk Category 6 Premise Horizontal Cable, Indoor/Outdoor OSP/CM-LS, 4-Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Gel-filled, Haloarrest® UV Resistant Flame Retardant LSZH Jacket

  • Availability:
    Global
  • Global inventory:
    Available
VersaLAN I/O OSP Cat 6 UTP
  • VersaLAN I/O OSP Cat 6 UTP
1 of 1
  • Specifications
  • Part numbers
  • Resources

Specifications

Report An Error

Suitable Applications

OSP-Outdoor, Indoor/Outdoor, Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE, Noisy Environments: Not OSP-Outdoor, Indoor/Outdoor, Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE, Noisy Environments, Not Suitable for Marine Application

Conductor

Size Stranding Material No. of Pairs
23 AWG Solid BC - Bare Copper 4

Insulation

Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Waterblocking

Gel Filled

Outer Jacket

Separator Material Nom. Diameter
Flexweb® Core Separator LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.275 in (6.99 mm)

Overall Cable Diameter (Nominal)

0.275 in (6.99 mm)

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 160 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100ft 65%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm] Min. TCL [dB] Min. ELTCTL [dB]
1 2.0 74.3 72.3 72.3 70.3 67.8 64.8 20.0 100 ± 15 100 ± 15 40.0 35.0
4 3.8 65.3 63.3 61.5 59.5 55.7 52.7 23.0 100 ± 15 100 ± 15 40.0 23.0
8 5.3 60.8 58.8 55.4 53.4 49.7 46.7 24.5 100 ± 15 100 ± 15 40.0 16.9
10 6.0 59.3 57.3 53.4 51.4 47.8 44.8 25.0 100 ± 15 100 ± 15 40.0 15.0
16 7.6 56.3 54.3 48.7 46.7 43.7 40.7 25.0 100 ± 15 100 ± 15 38.0 10.9
20 8.5 54.8 52.8 46.3 44.3 41.7 38.7 25.0 100 ± 15 100 ± 15 37.0 9.0
25 9.5 53.3 51.3 43.8 41.8 39.8 36.8 24.3 100 ± 15 100 ± 15 36.0 7.0
31.25 10.7 51.9 49.9 41.2 39.2 37.9 34.9 23.6 100 ± 15 100 ± 15 35.1 5.1
62.5 15.4 47.4 45.4 32.0 30.0 31.8 28.8 21.5 100 ± 15 100 ± 15 32.0
100 19.8 44.3 42.3 24.5 22.5 27.8 24.8 20.1 100 ± 15 100 ± 15 30.0
155 25.2 41.5 39.5 16.3 14.3 23.9 20.9 18.8 100 ± 22 100 ± 15 28.1
200 29.0 39.8 37.8 10.8 8.8 21.7 18.7 18.0 100 ± 22 100 ± 15 27.0
250 32.8 38.3 36.3 5.5 3.5 19.8 16.8 17.3 100 ± 32 100 ± 15 26.0
500 48.9 33.8 31.8 15.2 100 ± 32 100 ± 15 23.0
550 51.8 33.2 31.2 14.9 100 ± 32 100 ± 15 22.6

Voltage

UL Voltage Rating
300 V (CM-LS)

Temperature

UL Temperature Operating Storage
60°C -40°C To +60°C -40°C To +60°C

Bend Radius

Stationary Min.
2.75 in (69.9 mm)

Max. Pull Tension

25 lbs (11 kg)

Bulk Cable Weight

39 lbs/1000ft (58 kg/km)

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance, Aerial - Black only, When supported by messenger wire, Burial - Engineered burial only

Sustainability

Product Lens™, Environmental Product Declaration (EPD) Available

Flammability / Reaction to Fire

UL 1685 (UL Loading-Limited Smoke), IEC 60332-1-2

NEC / UL Compliance

Article 800, CM-LS

CEC / C(UL) Compliance

CMG-ST1

ICEA Compliance

S-116-732, S-56-434, S-99-689, S-100-685

IEEE Compliance

IEEE 802.3bt Type1,Type2, Type3, Type4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.39 Revision Date: 04-29-2024

Update and Revision

Revision Number: 0.39 Revision Date: 04-29-2024

Part Numbers

Item # Color Putup Type Length
M58772 Black Reel 1,000 ft
M59132 Blue Reel 1,000 ft
M59092 White Reel 1,000 ft
