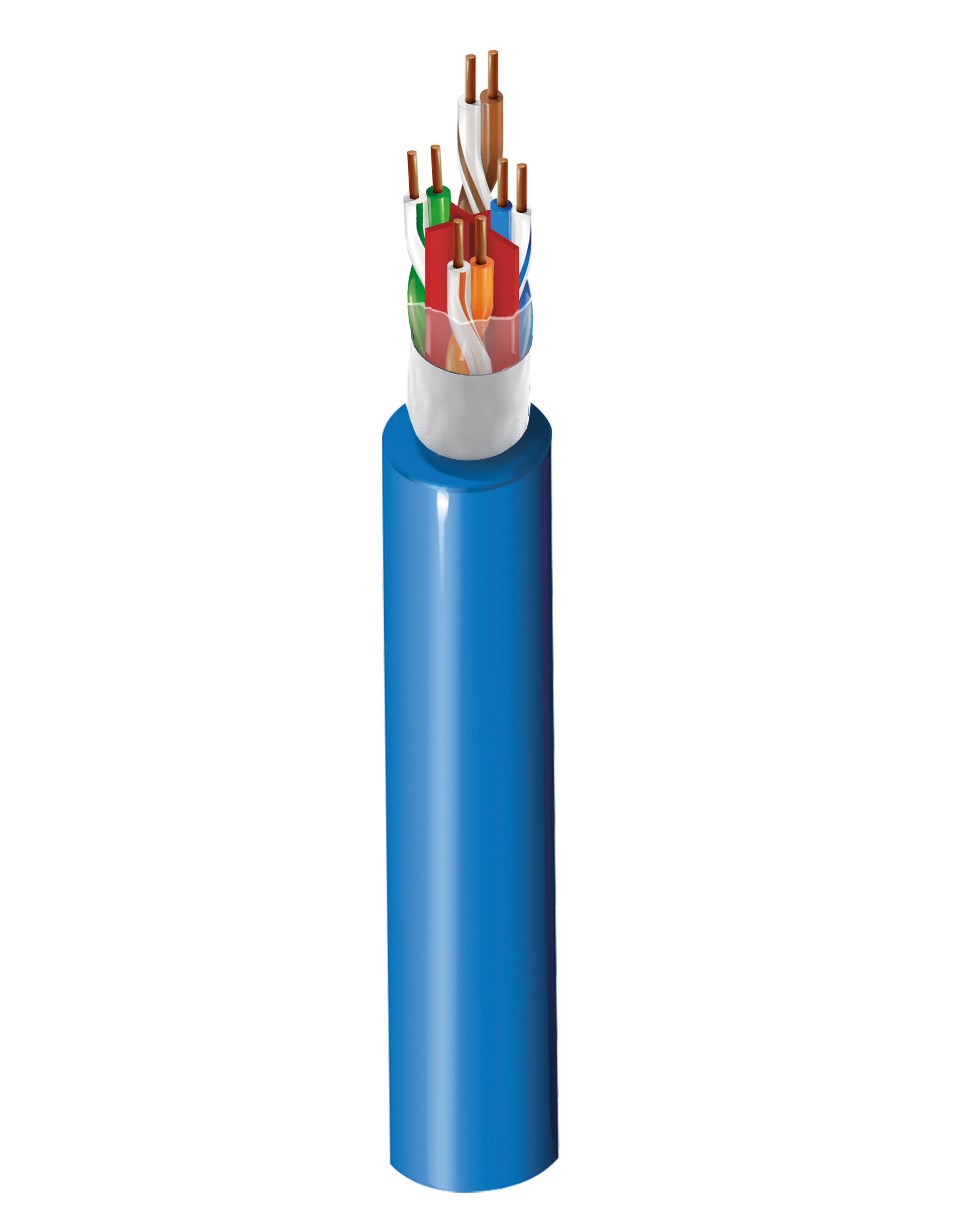

10GA24

CAT 6A 4P 23AWG, U/UTP, LSZH Jkt, Indoor

...
CAT 6A 4PR x 23AWG U/UTP, Solid Bare Copper Conductors, PE Insulation, LSZH Jacket, Indoor

Regions Available: Asia Pacific
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Horizontal and building backbone cable; Support current and future Category 6a and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM as well as PoE application etc.

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details
Conductor
Size Stranding Material No. of Pairs
23 Solid BC - Bare Copper 4
Insulation
Material Nom. Insulation Diameter Color Code
PE - Polyethylene 1.14 mm (0.0449 in) White & Blue, Orange & White with Orange Stripe, Green & White with Green Stripe, Brown & White with Brown Stripe
Outer Jacket
Material Nom. Diameter Ripcord
LSZH - Low Smoke Zero Halogen (Flame Retardant) 7.2 mm (0.28 in) No

Table Notes

A Separator tape "EquiBlockTM Barrier Technology" wrapped below outer jacket

Electrical Characteristics
Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
80.0 Ohm/km (24.4 Ohm/1000ft) 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 538 ns/100m 45 ns/100m 67%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. PSANEXT [dB] Min. PSAACRF [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 2.1 75.3 72.3 73.2 71.2 68.0 65.0 20.0 67.0 67.0 40.0 35.0
4 3.8 66.3 63.3 62.5 59.5 56.0 53.0 23.0 67.0 66.2 40.0 23.0
8 5.3 61.8 57.3 56.5 55.5 49.7 46.7 24.5 67.0 58.2 40.0 16.9
16 7.5 57.2 54.2 49.6 46.6 43.9 40.9 25.0 67.0 54.1 38.0 10.9
31.25 10.5 52.9 49.9 42.4 39.4 38.1 35.1 23.6 67.0 48.3 35.1
62.5 15.0 48.4 45.4 33.4 30.4 31.9 28.9 21.5 65.6 42.3 32.0
100 19.1 45.3 42.3 26.2 23.2 28.0 25.0 20.1 62.5 38.2 30.0
125 21.5 43.8 40.8 22.3 19.3 26.1 23.1 19.4 61.0 36.3 29.0
200 27.6 40.8 37.8 13.2 10.2 22.0 19.0 18.0 58.0 32.2 27.0
250 31.1 39.3 36.3 8.2 5.2 19.8 16.8 17.3 56.5 30.2 26.0
300 34.3 38.1 35.1 3.8 0.8 18.5 15.5 17.3 55.3 28.7 25.2
500 45.3 34.8 31.8 14.0 11.0 17.3 52.0 24.2 23.0
600 50.1 33.6 30.6 12.4 9.4 17.3 50.8 22.6
650 52.3 33.1 30.1 11.7 8.7 17.3 50.3 21.9

Table Notes

Jacket sequentially marked. Limits for 1MHz ,600MHz, 650MHz are for information only.

Mechanical Characteristics
Temperature
Operating Installation
-20°C to +60°C 0°C to +50°C
Bend Radius
Installation Min.
50 mm (2.0 in)

Max. Pull Tension

110 N (25 lbf)

Bulk Cable Weight

52 kg/km (35 lbs/1000ft)

Standards and Compliance

Environmental Suitability

Indoor, Indoor, Non-Halogenated

Flammability / Reaction to Fire

IEC 60332-1-2

IEEE Compliance

PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Data Category

Category 6A

TIA/EIA Compliance

ANSI/TIA 568.2-D

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

European Halogen Free Standards

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

Product Notes

Notes

Cold bend test: -30℃ x 4 Hrs, No Crack

History

Update and Revision

Revision Number: 0.71 Revision Date: 07-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Length
10GA24 010305M Black 305 m
10GA24 006305M Blue 305 m
10GA24 008305M Gray 305 m
10GA24 005305M Green 305 m
10GA24 003305M Orange 305 m
10GA24 2SP305M Pink 305 m
10GA24 002305M Red 305 m
10GA24 009305M White 305 m
10GA24 004305M Yellow 305 m
