127953A

DataTuff® Cat 6, (4 pr) 23 AWG Solid BC, PP/PVC/Alum Armor/PVC, EtherNet/IP, Foil Shld, CMG CM, 600V AWM

...

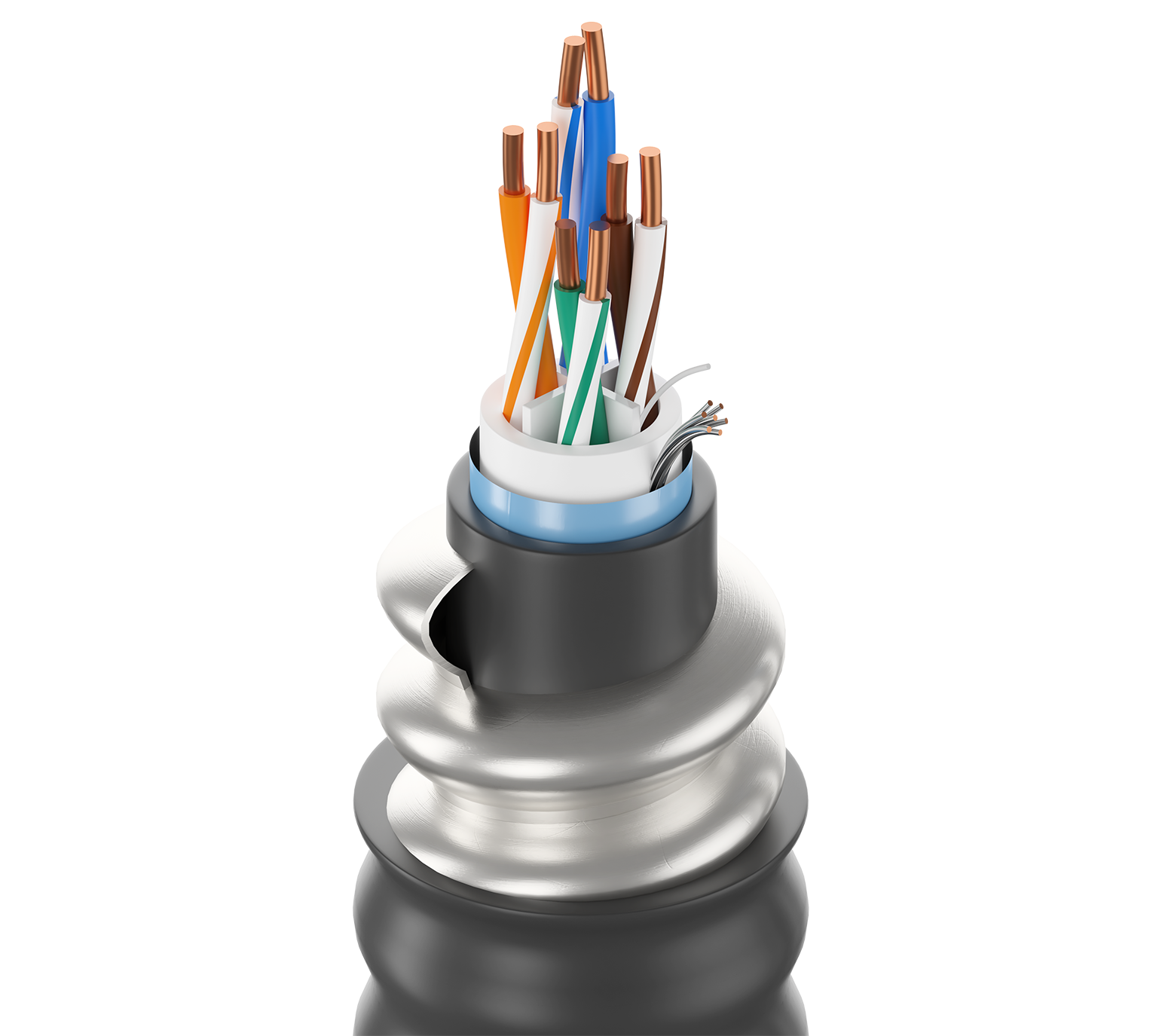

Four Cat 6 24 AWG Bonded-Pairs solid bare copper conductors, polypropylene insulation, FRPE spline center member, inner PVC jacket, overall Beldfoil® Shield (100% coverage), industrial grade oil- and UV-resistant PVC outer jacket, CMG CM

Regions Available: Global
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Armored Ethernet applications, In Cable tray, in cabinet with high volt devices, such as motor control center, mining, outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. exposure to rodent, crush, or cut through force,

Construction Details
Conductor
Element Size Stranding Material No. of Elements
Pair(s) 23 AWG Solid BC - Bare Copper 4
Insulation
Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Inner Jacket
Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.254 in (6.45 mm) Yes
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Armor
Armor Type & Material Armor Thickness Diameter Over Armor
AIA - Aluminum Interlock Armor 0.025 in (0.64 mm) 0.595 in (15.1 mm)
Outer Jacket
Separator Material Nom. Diameter
Polyester Tape PVC - Polyvinyl Chloride 0.695 in (17.7 mm)

Overall Cable Diameter (Nominal)

0.695 in (17.7 mm)

Electrical Characteristics
Electricals
Max. Conductor DCR Max. Capacitance Unbalance
82 Ohm/km (25 Ohm/1000ft) 330 pF/ft
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.0 dB/100m 74.3 72.3 72.3 70.3 67.8 64.8 21 100 ± 15 100 ± 15
4 3.8 dB/100m 65.3 63.3 61.5 59.5 55.8 52.7 24 100 ± 15 100 ± 15
8 5.3 dB/100m 60.8 58.8 55.4 53.4 49.7 46.7 25.5 100 ± 15 100 ± 15
10 6 dB/100m 59.3 57.3 53.3 51.3 47.8 44.8 26 100 ± 15 100 ± 15
16 7.6 dB/100m 56.2 54.3 48.7 46.7 43.7 40.7 26 100 ± 15 100 ± 15
20 8.5 dB/100m 54.8 52.8 46.3 44.3 41.8 38.8 26 100 ± 15 100 ± 15
25 9.5 dB/100m 53.3 51.3 43.8 41.8 39.8 36.8 25.3 100 ± 15 100 ± 15
31.25 10.7 dB/100m 51.9 49.9 41.2 39.2 37.9 34.9 24.6 100 ± 15 100 ± 15
62.5 15.4 dB/100m 47.4 45.4 32 30 31.9 28.9 22.5 100 ± 15 100 ± 15
100 19.8 dB/100m 44.3 42.3 24.5 22.5 27.8 24.8 21.1 100 ± 15
155 25.2 dB/100m 41.5 39.5 16.3 14.3 23.9 20.9 19.8 100 ± 22
200 29.0 dB/100m 39.8 37.8 10.8 8.8 21.8 18.8 19 100 ± 22
250 32.8 dB/100m 38.3 36.3 5.5 3.5 19.8 16.8 18.3 100 ± 32
Voltage
UL Voltage Rating
300 V (CMR), 300 V (CMX)
Mechanical Characteristics
Temperature
UL Temperature Operating Storage
75°C -40°C to +75°C -40°C to +85°C
Bend Radius
Stationary Min.
2.10 in (53.3 mm)

Max. Pull Tension

200 lbs (91 kg)

Bulk Cable Weight

164 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Sunlight Resistance

Flammability / Reaction to Fire

UL 1685 (UL Loading)

NEC / UL Compliance

CM

CEC / C(UL) Compliance

CMG, HL, CSA CMG, HL, -40C

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6

ISO/IEC Compliance

ISO/IEC 11801 Cat 6

History

Update and Revision

Revision Number: 0.129 Revision Date: 04-29-2024
