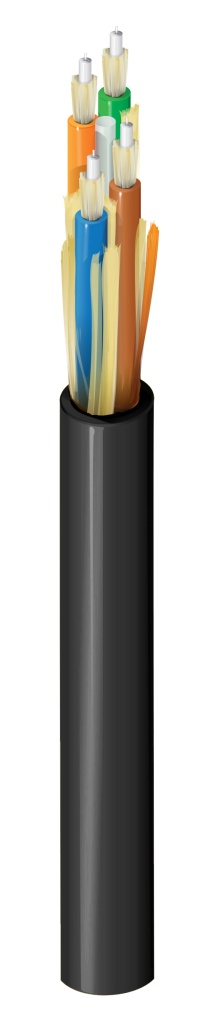

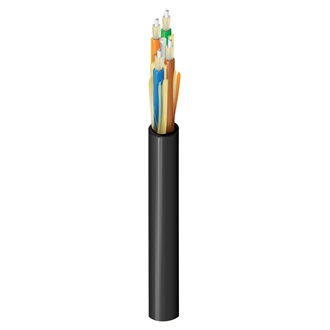

FD1B004LB

Indoor/Outdoor LSZH/Riser OM1 Breakout 4 Fibers

FX Indoor/Outdoor OM1 Breakout 4 Fibers LSZH Sub-Units (2.0MM) Black Jacket

Request Quote

Specifications

Report An Error

Suitable Applications	Horizontal Backbone

Fiber Type	OM1
Fiber Core Diameter	62.5/125μm µm
Fiber Diameter	250 µm
Buffer Material	LSZH - Low Smoke Zero Halogen (Flame Retardent)
Buffer Diameter	900 μm µm
Fiber Count	4
Fiber Color Coding	TIA-598-D

Strength Member	Waterblocking Aramid Yarns
Jacket Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	0.321 in (8.2 mm)
Color	Black
Number of Ripcords	2

Wavelength	850 nm	1300 nm
Max. Attenuation	3.25 dB/km	1.0 dB/km
1 Gigabit Ethernet Performance	300 m	550 m
10 Gigabit Ethernet Performance	33 m	--
Min. Restricted Mode Launch	220 MHz.km	--
Min. Overfilled Launch (OFL) Bandwidth	200 MHz.km	500 MHz.km

Min. Bend Radius During Installation	15x Cable OD
Min. Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	1330 N (300 lbf)
Max. Tensile Strength During Operation	400 N (90 lbf)
Crush Resistance	220 N/cm

Bulk Cable Weight	17 lbs/kft (26 kg/km)

Installation Temperature Range	-20°C to +70°C
Operating Temperature Range	-40°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	OFNR, FT4
ICEA Compliance	S-104-696
TIA/EIA Compliance	ANSI/ICEA S-104-696

Update and Revision	Revision Number: 0.69 Revision Date: 05-31-2024
