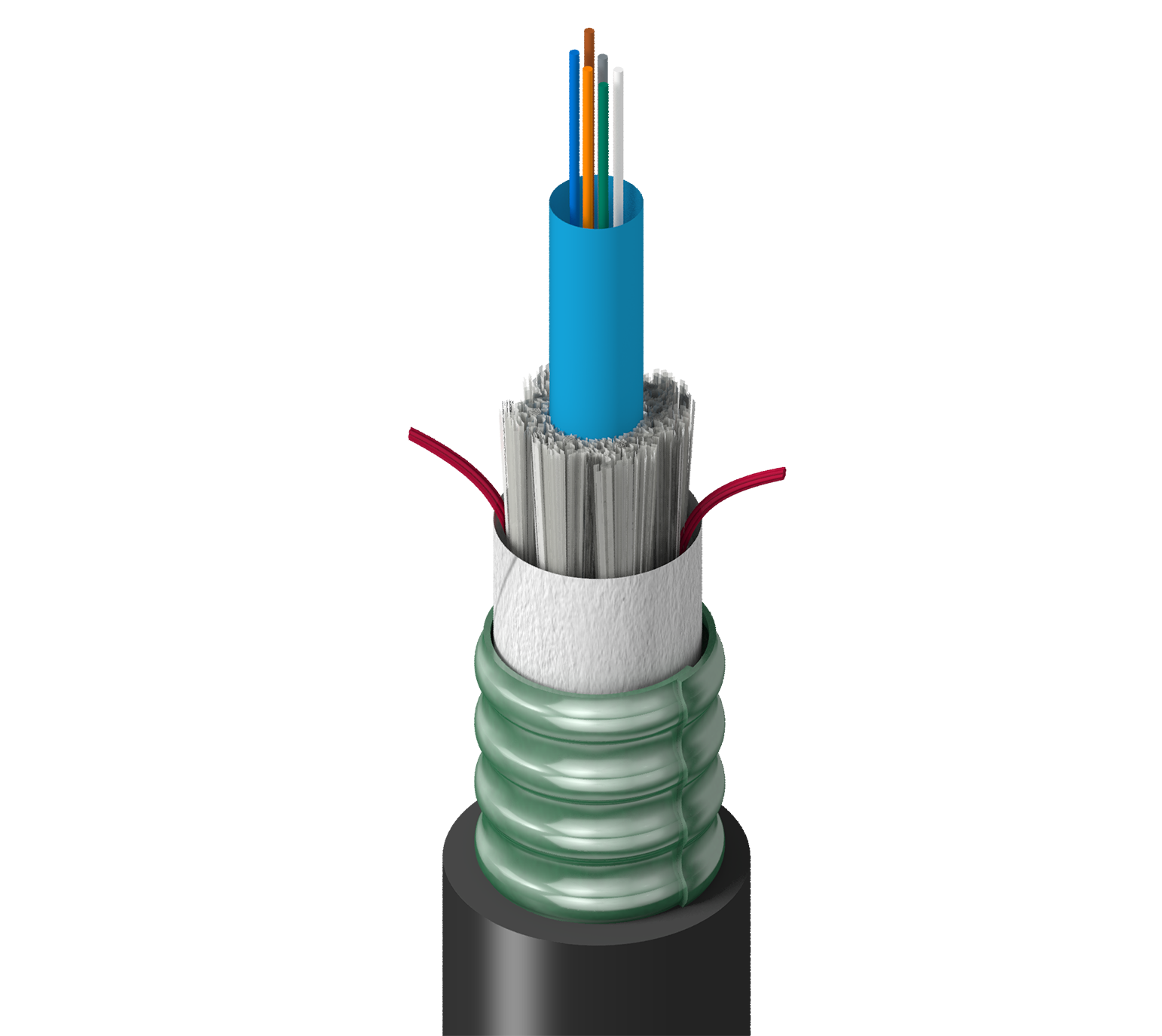

Product Number: TF-SC0-006-RS5
Factory, In+Outdoor, CLT, OS2, 6f, Gel Tube 3.8mm, CST, Sgl Jkt - PVC, OFCR, Ozone-UV-Oil Res
Factory Grade, Indoor/Outdoor, Central Loose-Tube, OS2, 6 Fibers, Gel Filled Tube 3.8mm, Corrugated Steel Tape, Single Jacket - PVC, OFCR, Ozone-UV-Oil Resistant
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Product Category |
Fiber Central Loose Tube Cable |
|---|---|
|
Suitable Applications |
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof |
Fiber Specifications
|
Fiber Type |
OS2 |
|---|---|
|
Fiber Core Diameter |
8.2 µm |
|
Fiber Diameter |
250 µm |
|
Fiber Count |
6 |
|
Fiber Color Coding |
TIA-598-D |
Cable Construction
|
Number of Active Subunits |
1 |
|---|---|
|
Fibers Per Subunit |
6 |
|
Subunit Waterblocking |
Gel Filled |
Armor Specifications
|
Armor Type and Material |
CST - Corrugated Steel Tape |
|---|
Outer Jacket Specifications
|
Strength Member |
Waterblocking Fiberglass Yarns |
|---|---|
|
Jacket Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.410 in (10.4 mm) |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.40 dB/km | 0.30 dB/km |
| Mode Field Diameter | 9.2 µm | 10.4 µm |
| 1 Gigabit Ethernet Performance | 5,000 m | -- |
| 10 Gigabit Ethernet Performance | 10,000 m | 40,000 m |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
20x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
2670 N (600 lbf) |
|
Max. Tensile Strength During Operation |
800 N (180 lbf) |
|
Crush Resistance |
220 N/cm |
|
Bulk Cable Weight |
83 lbs/kft (124 kg/km) |
|---|
Temperature Range
|
Installation Temperature Range |
-10°C to +60°C |
|---|---|
|
Operating Temperature Range |
-40°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Sunlight Resistance, Oil Resistance |
|---|---|
|
Flammability / Reaction to Fire |
OFCR, FT4 |
|
ICEA Compliance |
S-104-696 |
Product Notes
|
Notes |
Ozone, Hydraulic fluid resistant |
|---|
History
|
Update and Revision |
Revision Number: 0.20 Revision Date: 11-14-2022 |
|---|
Information
|
Update and Revision |
Revision Number: 0.20 Revision Date: 11-14-2022 |
|---|
Part Numbers
| Item # | Color | Putup Type |
|---|---|---|
| TF-SC0-006-RS5N | Black | Reel |
