Product Number: TT-1LG-012-HNN

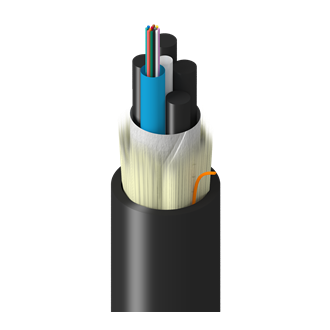

Transit, In+Outdoor, MLT, OM1, 12f, Gel Tubes 2.8mm, Sgl Jkt - LSZH, OFNG-ST1
Transit Grade, Indoor/Outdoor, Multi-Loose-Tube, OM1, 12 Fibers, Gel Filled Tubes 2.8mm, Single Jacket - LSZH, OFNG-ST1
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Product Category |
Fiber Multi-Loose Tube Cable |
|---|---|
|
Suitable Applications |
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations |
Fiber Specifications
|
Fiber Type |
OM1 |
|---|---|
|
Fiber Core Diameter |
62.5/125 µm |
|
Fiber Diameter |
250 µm |
|
Fiber Count |
12 |
|
Fiber Color Coding |
TIA-598-D |
Cable Construction
|
Number of Active Subunits |
1 |
|---|---|
|
Number of Fillers |
4 |
|
Fibers Per Subunit |
12 |
|
Subunit Waterblocking |
Gel Filled |
|
Subunit Diameter |
0.110 in (2.8 mm) |
|
Central Strength Member |
GRP |
|
Core Wrap |
Waterblocking Tape |
Outer Jacket Specifications
|
Strength Member |
Waterblocking Aramid Yarns |
|---|---|
|
Jacket Material |
LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|
Nom. Diameter |
0.454 in (11.5 mm) |
|
Number of Ripcords |
1 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.25 dB/km | 1.0 dB/km |
| 1 Gigabit Ethernet Performance | 300 m | 550 m |
| 10 Gigabit Ethernet Performance | 33 m | - |
| Min. Restricted Mode Launch | 220 MHz.km | - |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz.km | 500 MHz.km |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
15x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
2670 N (600 lbf) |
|
Max. Tensile Strength During Operation |
800 N (180 lbf) |
|
Crush Resistance |
220 N/cm |
|
Bulk Cable Weight |
87 lbs/kft (129 kg/km) |
|---|
Temperature Range
|
Installation Temperature Range |
-10°C to +60°C |
|---|---|
|
Operating Temperature Range |
-40°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Sunlight Resistance, Burial |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
OFNG-ST1, FT4 |
|
ICEA Compliance |
S-104-696 |
|
Other Standard Compliance(s) |
NFPA 130, NFPA 502 |
History
|
Update and Revision |
Revision Number: 0.33 Revision Date: 11-14-2022 |
|---|
Information
|
Update and Revision |
Revision Number: 0.33 Revision Date: 11-14-2022 |
|---|
Part Numbers
| Item # | Color | Putup Type |
|---|---|---|
| TT-1LG-012-HNNN | Black | Reel |
