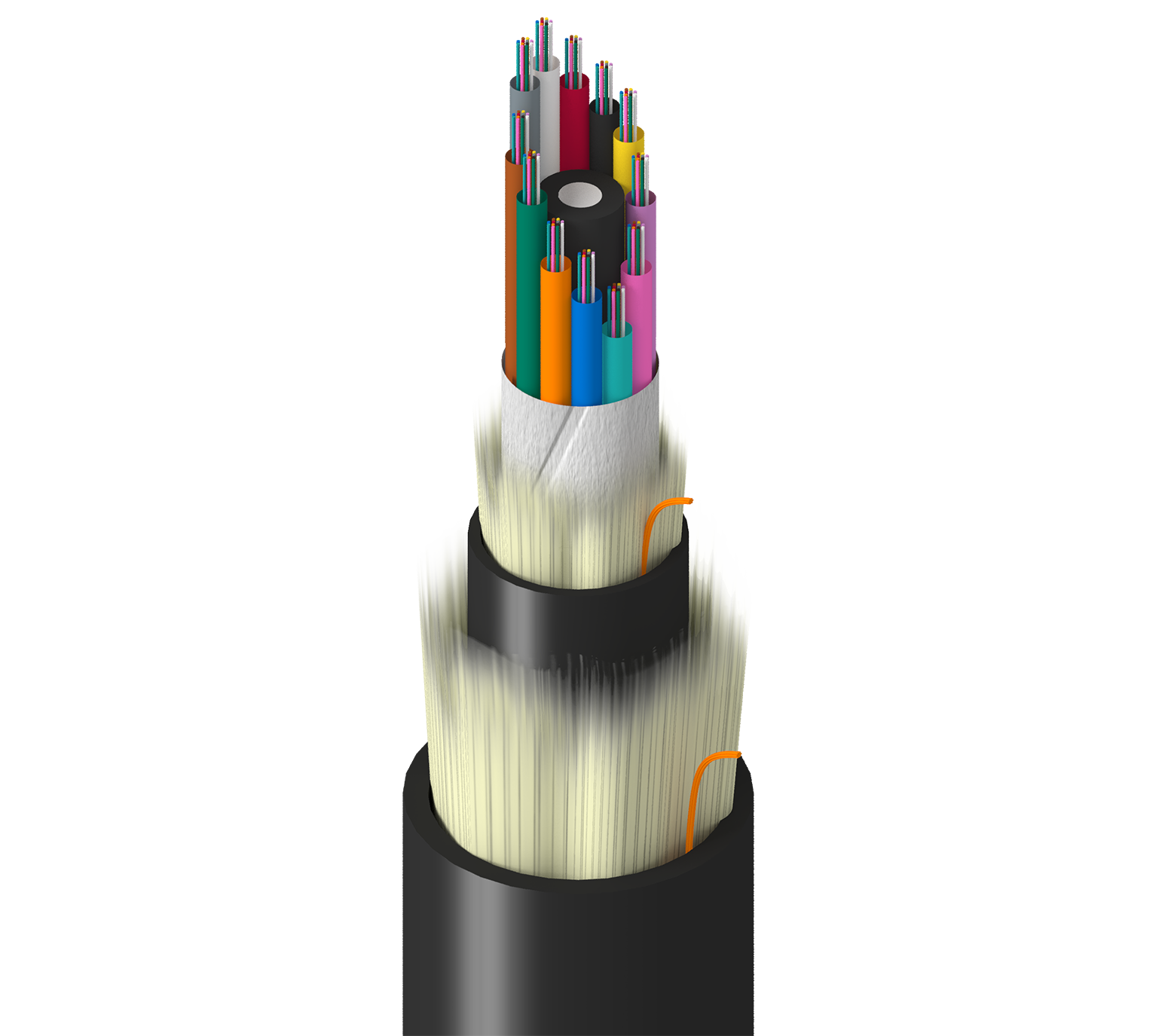

Product Number: TT-SLD-144-LXN
Transit, In+Outdoor, MLT, OS2, 144f, Dry Tubes 2.5mm, RP Dbl Jkt, Blk, LSZH, OFNG-ST1
Transit Grade, Indoor/Outdoor, Multi-Loose-Tube, OS2, 144 Fibers, Dry Tubes 2.5mm, Rodent Protected, Double Jacket, Black, LSZH, OFNG-ST1
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Product Category |
Fiber Multi-Loose Tube Cable |
|---|---|
|
Suitable Applications |
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/ Outdoor & Wet Locations, Rodent Proof, UV Resistant |
Fiber Specifications
|
Fiber Type |
OS2 |
|---|---|
|
Fiber Core Diameter |
8.2/125 µm |
|
Fiber Diameter |
250 µm |
|
Fiber Color Coding |
TIA-598-D |
Cable Construction
|
Number of Active Subunits |
12 |
|---|---|
|
Number of Fillers |
0 |
|
Fibers Per Subunit |
12 |
|
Subunit Waterblocking |
Gel Free |
|
Subunit Diameter |
0.098 in (2.5 mm) |
|
Subunit Color |
TIA-598-D |
|
Central Strength Member |
Upjacketed GRP |
Inner Jacket Specifications
|
Strength Member |
Fiberglass Yarns |
|---|---|
|
Material |
LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|
Nom. Diameter |
0.546 in (13.9 mm) |
|
Color |
Black |
|
Number of Ripcords |
1 |
Outer Jacket Specifications
|
Strength Member |
Fiberglass Yarns |
|---|---|
|
Jacket Material |
LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|
Nom. Diameter |
0.746 in (18.9 mm) |
|
Number of Ripcords |
1 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.35 | 0.25 |
| Mode Field Diameter | 9.2 µm | 10.4 µm |
| 1 Gigabit Ethernet Performance | 5000 m | |
| 10 Gigabit Ethernet Performance | 10000 m | 40000 m |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
15x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
2670 N (600 lbf) |
|
Max. Tensile Strength During Operation |
800 N (180 lbf) |
|
Crush Resistance |
220 N/cm |
|
Bulk Cable Weight |
347 lbs/kft (516 kg/km) |
|---|
Temperature Range
|
Installation Temperature Range |
-10°C to +60°C |
|---|---|
|
Operating Temperature Range |
-40°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Sunlight Resistance, Burial |
|---|---|
|
Flammability / Reaction to Fire |
UL 1685 FT4 Loading, Limited Smoke, FT4 |
|
NEC / UL Compliance |
OFNG-ST1 |
|
ICEA Compliance |
S-104-696 |
History
|
Update and Revision |
Revision Number: 0.9 Revision Date: 11-14-2022 |
|---|
Information
|
Update and Revision |
Revision Number: 0.9 Revision Date: 11-14-2022 |
|---|
Part Numbers
| Item # |
|---|
| TT-SLD-144-LXNN |
