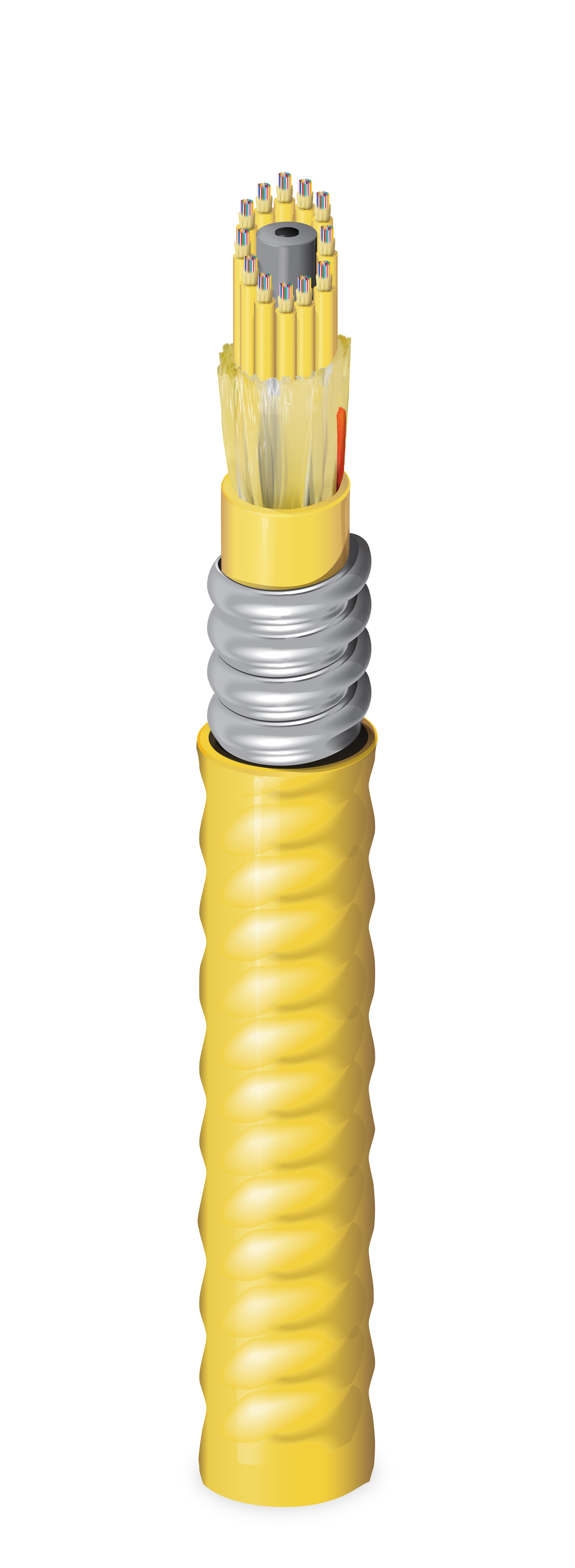

Indoor OFCP OS2 Flexible Ribbon 288 Fibers 24F Subs
Regions Available: Global
|
Product Category |
Fiber Ribbon Cable |
|---|---|
|
Suitable Applications |
Data Center, RAN, Horizontal Backbone, Premise Backbone |
|
Fiber Type |
OS2 |
|---|---|
|
Fiber Core Diameter |
8.2/125μm µm |
|
Fiber Count |
288 |
|
Fiber Color Coding |
TIA-598-D |
|
Number of Active Subunits |
12 |
|---|---|
|
Fibers Per Subunit |
24 |
|
Subunit Diameter |
0.118 in (3.0 mm) |
|
Subunit Color |
Yellow |
|
Subunit Strength Members |
Aramid Yarns |
|
Central Strength Member |
Upjacketed GRP |
|
Strength Member |
Aramid Yarns |
|---|---|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.720 in (18.3 mm) |
|
Color |
Yellow |
|
Armor Type and Material |
AIA - Aluminum Interlock Armor |
|---|
|
Jacket Material |
PVC - Polyvinyl Chloride |
|---|---|
|
Nom. Diameter |
1.07 (27.2 mm) |
|
Color |
Yellow |
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.50 dB/km | 0.50 dB/km |
| 1 Gigabit Ethernet Performance | 5,000 m | |
| 10 Gigabit Ethernet Performance | 10,000 m | |
| Min. Effective Modal Bandwidth (EMB) | 0.050 dB/km |
|
Min. Bend Radius During Installation |
20x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
1320 N (300 lbf) |
|
Max. Tensile Strength During Operation |
400 N (90 lbf) |
|
Crush Resistance |
440 N/cm |
|
Bulk Cable Weight |
420 lbs/kft (625 kg/km) |
|---|
|
Installation Temperature Range |
0°C to +60°C |
|---|---|
|
Operating Temperature Range |
0°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
|
Environmental Suitability |
Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
NFPA262 |
|
NEC / UL Compliance |
OFCP |
|
CEC / C(UL) Compliance |
FT6 |
|
ICEA Compliance |
S-83-596 |
|
TIA/EIA Compliance |
598-D |
|
Telcordia Compliance |
GR-409 |
|
European Directive Compliance |
EU Directive 2015/863/EU (RoHS 2 amendment) |
|
Update and Revision |
Revision Number: 0.24 Revision Date: 01-28-2025 |
|---|
