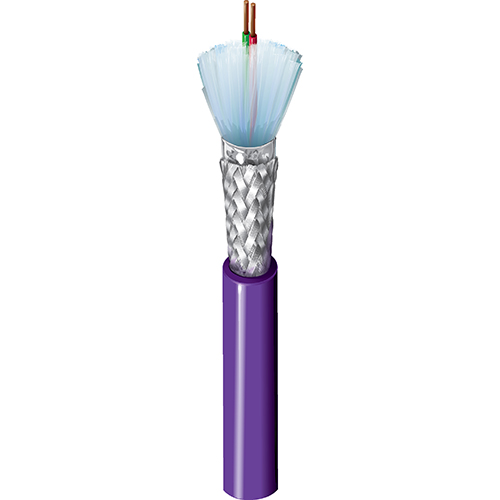

183079A

Profibus, 1 Pr #22 Sol BC, PE Ins, OS+TC Brd, PVC jkt, CCA, PVC Jkt, PLTC CMG Profibus DP

...
Profibus, 1 Pair 22AWG (Solid) Bare Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Continuously Corrugated Aluminum Armor, PVC Outer Jacket, PLTC CMG SUN RES Profibus DP

Regions Available: Global
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

exposure to rodent, crush, or cut through force, harsh environment, outdoors, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil.

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG Solid BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Pair(s) PE - Polyethylene (Foam) 0.035 in (0.89 mm) 0.099 in (2.5 mm) Red & Green Flame Retardant, Foam w/ skin
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 65%
Inner Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.043 in (1.1 mm) 0.315 in (8.00 mm)
Armor
Armor Type & Material
CCAA - Continuously Corrugated Aluminum Armor
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.055 in (1.4 mm) 0.665 in (16.9 mm)

Overall Cable Diameter (Nominal)

0.665 in (16.9 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 16 Ohm/1000ft (52 Ohm/km) 150 Ohm 78% 2.3 Amps per Conductor

Nom. Outer Shield DCR

3.9 Ohm/1000ft (13 Ohm/km)

High Frequency (Nominal/Typical)
Element Frequency [MHz] Nom. Insertion Loss (Attenuation)
Pair(s) 0.2 0.27 dB/100ft
4 0.67 dB/100ft
16 1.37 dB/100ft
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation)
0.2 1.1 dB/100m
4 2.65 dB/100m
16 5.4 dB/100m
Voltage
UL Voltage Rating
300 V (CMG, PLTC)
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -30°C to +60°C
Bend Radius
Stationary Min. Installation Min.
2.5 in (64 mm) 2.5 in

Max. Pull Tension

50 lbs (23 kg)

Bulk Cable Weight

170 lbs/1000ft (250 kg/km)

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance

Flammability / Reaction to Fire

UL1685 FT4 Loading, 1202, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, Article 800, CMG, PLTC

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.257 Revision Date: 05-31-2024
