Product Number: 9463LS
Blue Hose, 1PR #20 Str TC, PO ins, F/B, LSNH Jkt,SWA
Blue Hose, 1 Pair AWG 20 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil + Braid(s) shielding, LSZH / FRNC jacket , Steel Wire Armor
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Twinaxial instrumentation and computer cable; For data transmission applications; Suitable for outdoor application (sunlight resistant) and direct burial |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 20 | 7x28 | TC - Tinned Copper | 1 |
|
Conductor Count |
2 |
|---|---|
|
Total Number of Pairs |
1 |
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PE - Polyethylene | 1.96 mm | 0.05 mm |
Color Chart
| Number | Color |
|---|---|
| Pair 1 | Clear & Blue |
Inner Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® (Z-Fold®) | TC - Tinned Copper | AWG20/7 | |
| Braid | Tinned Copper (TC) | 55% |
Inner Jacket
| Material | Color | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Blue (RAL 5012) | 6.35 mm | 0.89 mm |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 10.75 mm | 1.3 mm |

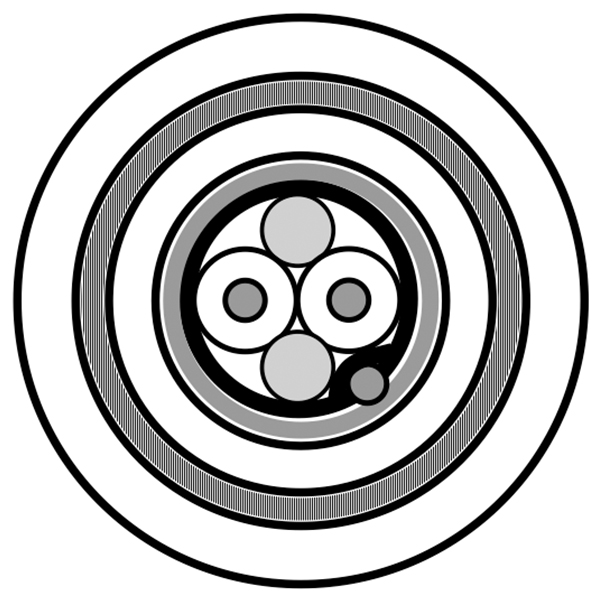

Construction and Dimensions
Cabling
| Description | Filler |
|---|---|
| 1 pair and 2 fillers twisted to cable core | Polyethylene (2x) (Clear, 1.32 mm) |
Armor
| Type of Armor | Material | Thickness of Armoring Wires | Coverage Percentage |
|---|---|---|---|
| Steel Wire Armoring | Galvanized steel wire | 0.9 mm | Min. 95% |
Electrical Characteristics
Conductor DCR
| Max. DCR Unbalance | Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|---|
| 2.53 % | 31.2 Ohm/km | 13.5 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 64.6 pF/m | 118.1 pF/m |
Impedance
| Frequency [MHz] | Nominal Characteristic Impedance |
|---|---|
| N/A | 78 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 1.97 dB/100m |
| 10 MHz | 6.89 dB/100m |
| 50 MHz | 11.81 dB/100m |
| 100 MHz | 24.61 dB/100m |
| 200 MHz | 36.09 dB/100m |
| 400 MHz | 52.49 dB/100m |
Delay
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66% |
Voltage
| Voltage Rating [V] |
|---|
| 300 V |
Temperature Range
|
Installation Temperature Range |
-15°C To +80°C |
|---|---|
|
Storage Temperature Range |
-45°C To +80°C |
|
Operating Temp Range (Flexible Install) |
-15°C To +80°C |
|
Operating Temp Range (Fixed Install) |
-45°C To +80°C |
Mechanical Characteristics
|
Oil Resistance |
IEC 60811-404 |
|---|---|
|
Min. Bend Radius During Installation |
161.25 mm |
Standards
|
CENELEC Compliance |
EN 50290-2-20 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor - Euroclass Eca |
|---|
Suitability
|
Suitability - Sunlight Resistance |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-3-24 |
|---|---|
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
|
IEC 61034-2 - Smoke Density Min. Transmittance |
60% |
History
|
Update and Revision |
Revision Number: 0.233 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.233 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 9463LS.00500 | Blue | Reel | 500 m | 8719605020697 |
| 9463LS.001000 | Blue | Reel | 1,000 m | 8719605020673 |
| 9463LS.001500 | Blue | Reel | 1,500 m | 8719605020680 |
