9860

Twinax 124Ω, 1 Pr #16 Sol BC, PO Ins, OA DF+TC Brd, PVC Jkt, CMX

...

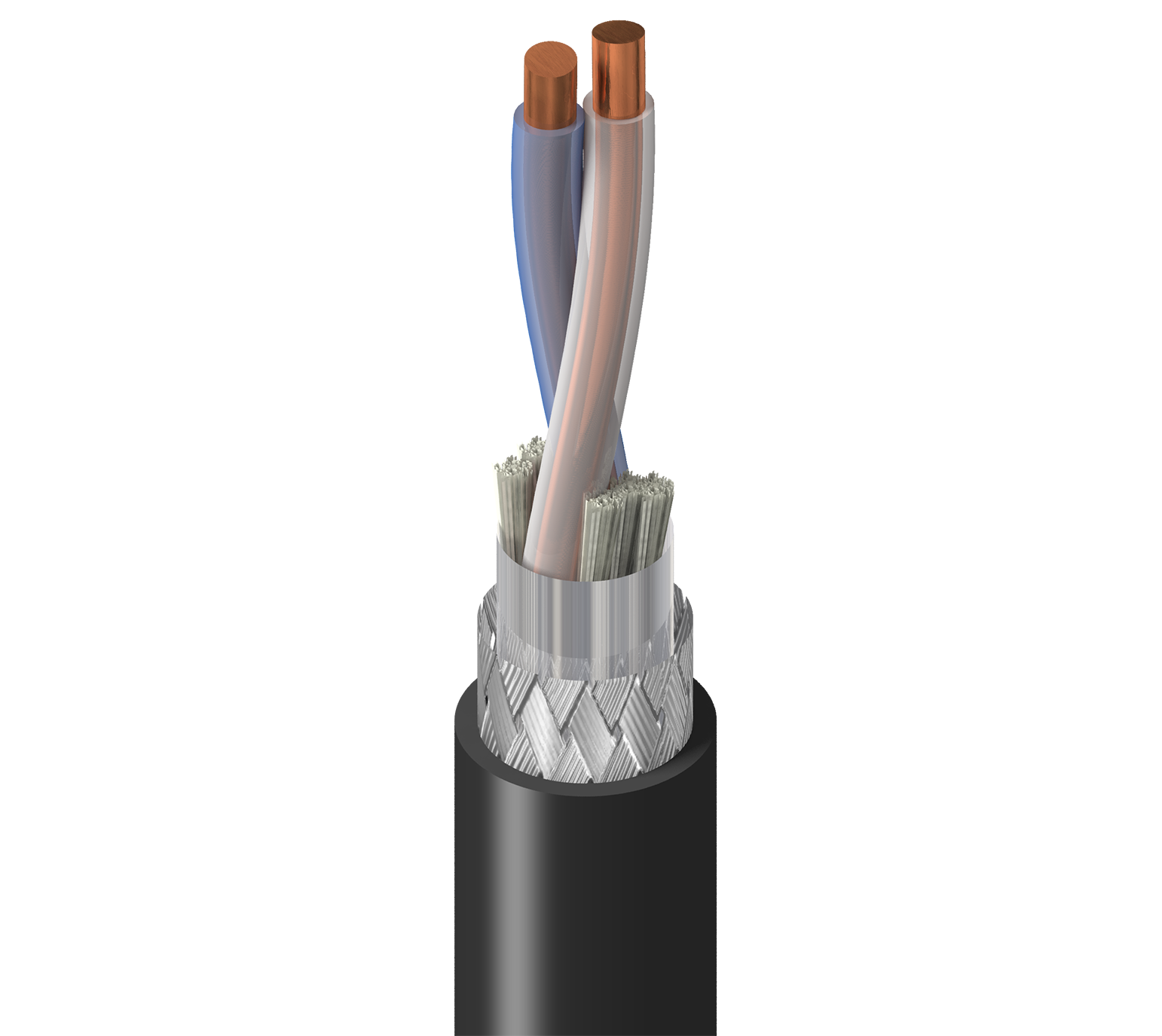

Twinax 124Ω, 1 Pair 16AWG (Solid) Bare Copper, PO Insulation, Overall Duofoil®+Tinned Copper Braid(90%) Shield, PVC Outer Jacket, CMX
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
16 Solid BC - Bare Copper 0.051 in 1

Conductor Count

2

Insulation
Material Nominal Diameter
PE - Polyethylene (Foam) 0.161 in
Color Chart
Number Color
1 Blue & Clear
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Tinned Copper (TC) 90%
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.44 in 0.045 in
Construction and Dimensions
Stranding
Diameter
0.322 mm
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
4.2 Ohm/1000ft 1.3 Ohm/1000ft 1.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield Nom. Capacitance Conductor to Shield
10.9 pF/ft 19.3 pF/ft 10.9 pF/ft
Inductance
Element Nominal Inductance
(Loop) (Loop) 0.24 µH/ft
Impedance
Nominal Characteristic Impedance
124 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.2 dB/100m
10 MHz 0.7 dB/100m
50 MHz 1.8 dB/100m
100 MHz 2.9 dB/100m
200 MHz 4.1 dB/100m
400 MHz 6.2 dB/100m
Delay
Max. Delay Skew Nominal Delay Nominal Velocity of Propagation (VP) [%]
78 ns/100m 1.3 ns/ft 78%
High Frequency
Frequency [MHz]
1 MHz
10 MHz
50 MHz
100 MHz
200 MHz
400 MHz
Voltage
UL Voltage Rating Voltage Rating [V]
300 V RMS (CM) AWM style 2448: 30 V RMS
300 V RMS (CMX)
Temperature Range

UL Temp Rating

60°C

Operating Temperature Range

-20°C To +60°C

Mechanical Characteristics

Bulk Cable Weight

98 lbs/1000ft

Max. Pull Tension

73 lbs

Min. Bend Radius/Minor Axis

4.5 in
Standards

NEC Articles

Article 800

NEC/(UL) Compliance

CMX

CEC/C(UL) Compliance

CMX

UL AWM Style Compliance

AWM 2448

CPR Euroclass

Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

VW-1

UL voltage rating

300 V RMS (CM)

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.486 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
9860 010500 Black Reel 500 ft 612825259725
9860 0101000 Black Reel 1,000 ft 612825259701
9860 0102000 Black Reel 2,000 ft 612825259718
