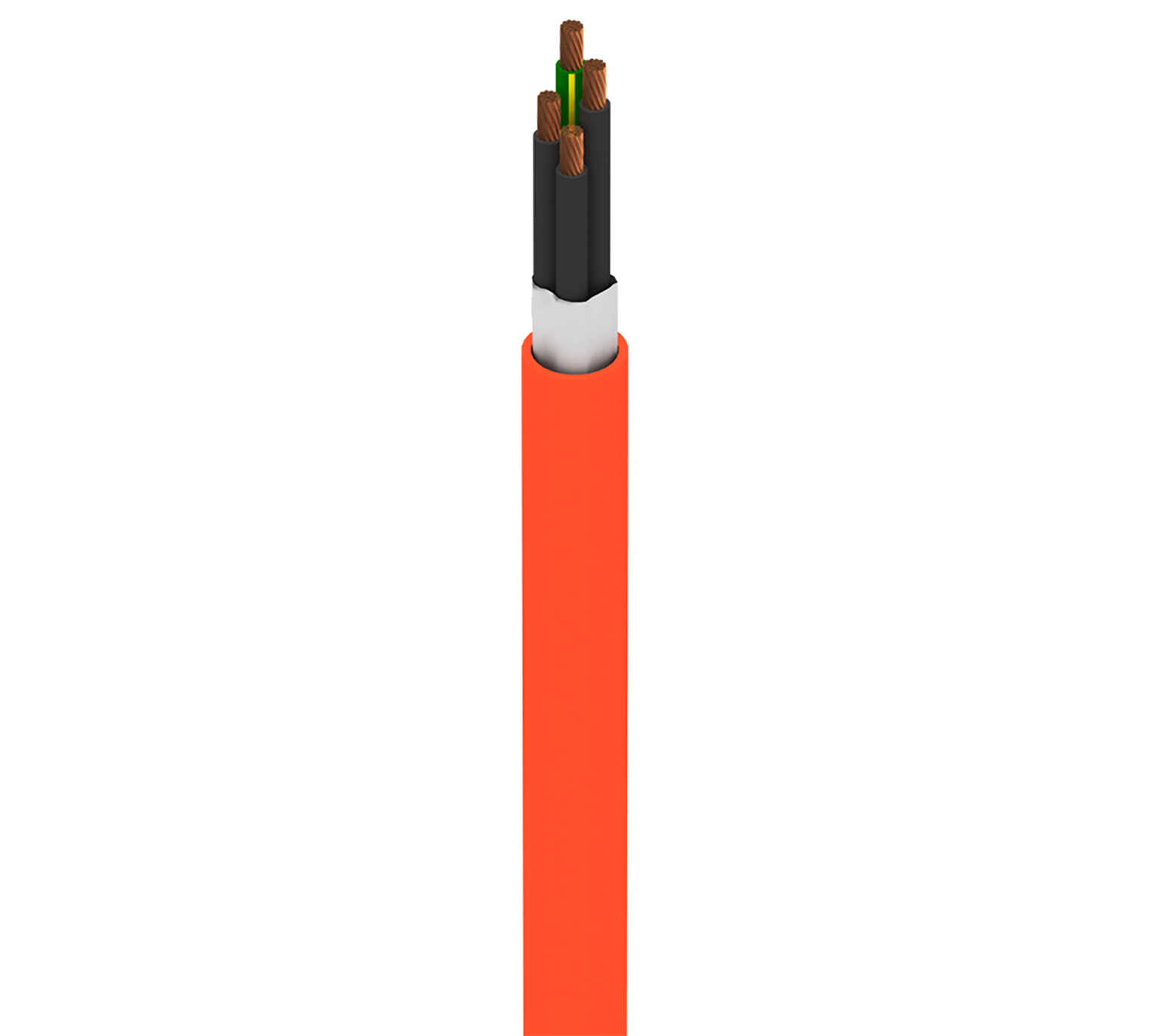

Product Number: 7102W
MachFlex™, 3+1G C #20 Str BC, PVC Ins, TPE Jkt, PLTC
MachFlex™ for High Flex, 3+1G Conductor 20AWG (74x38) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Robotics, Robot, Continuous Flex |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 20 AWG | 74x38 | BC - Bare Copper |
| Ground Wire | 1 | 20 AWG | 74x38 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PVC - Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.074 in (1.9 mm) | Black and Numbered |
| Ground Wire | PVC - Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.074 in (1.9 mm) | Green/Yellow |
Outer Shield
| Material |
|---|
| No Shield |
Outer Jacket
| Separator | Material | Nom. Thickness | Nom. Diameter |
|---|---|---|---|
| non-Woven Tape | TPE - Thermoplastic Elastomer | 0.037 in (0.94 mm) | 0.256 in |
|
Overall Cable Diameter (Nominal) |
0.256 in |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Max. Current |
|---|---|---|
| Conductor(s) | 10.7 Ohm/1000ft | 9 Amps per Conductor at 30ºC |
| Ground Wire | 10.7 Ohm/1000ft (35.1 Ohm/km) | 14.4 Amps per Conductor at 30ºC |
Voltage
| UL Voltage Rating | Voltage Rating |
|---|---|
| 300 V | 600 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| UL : 90°C, AWM 20327 : 105°C | -40°C To 105°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.56 in (65.0 mm) | 2.56 in |
|
Max. Pull Tension |
50.4 lbs (22.9 kg) |
|---|---|
|
Bulk Cable Weight |
40 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance |
|---|---|
|
Flammability / Reaction to Fire |
UL1685 UL Loading, IEEE 1202 FT4 |
|
NEC / UL Compliance |
Article 725, PLTC |
|
AWM Compliance |
AWM 20327, AWM I/II A/B |
|
European Directive Compliance |
EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.381 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.381 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 7102W 003250 | Orange | Reel | 250 ft | 612825181941 | C |
| 7102W 0031000 | Orange | Reel | 1,000 ft | 612825181934 | C |
| 7102W 0035000 | Orange | Reel | 5,000 ft | 612825181958 |
