7127W

MachFlex™, 11+1G C #16 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER

...

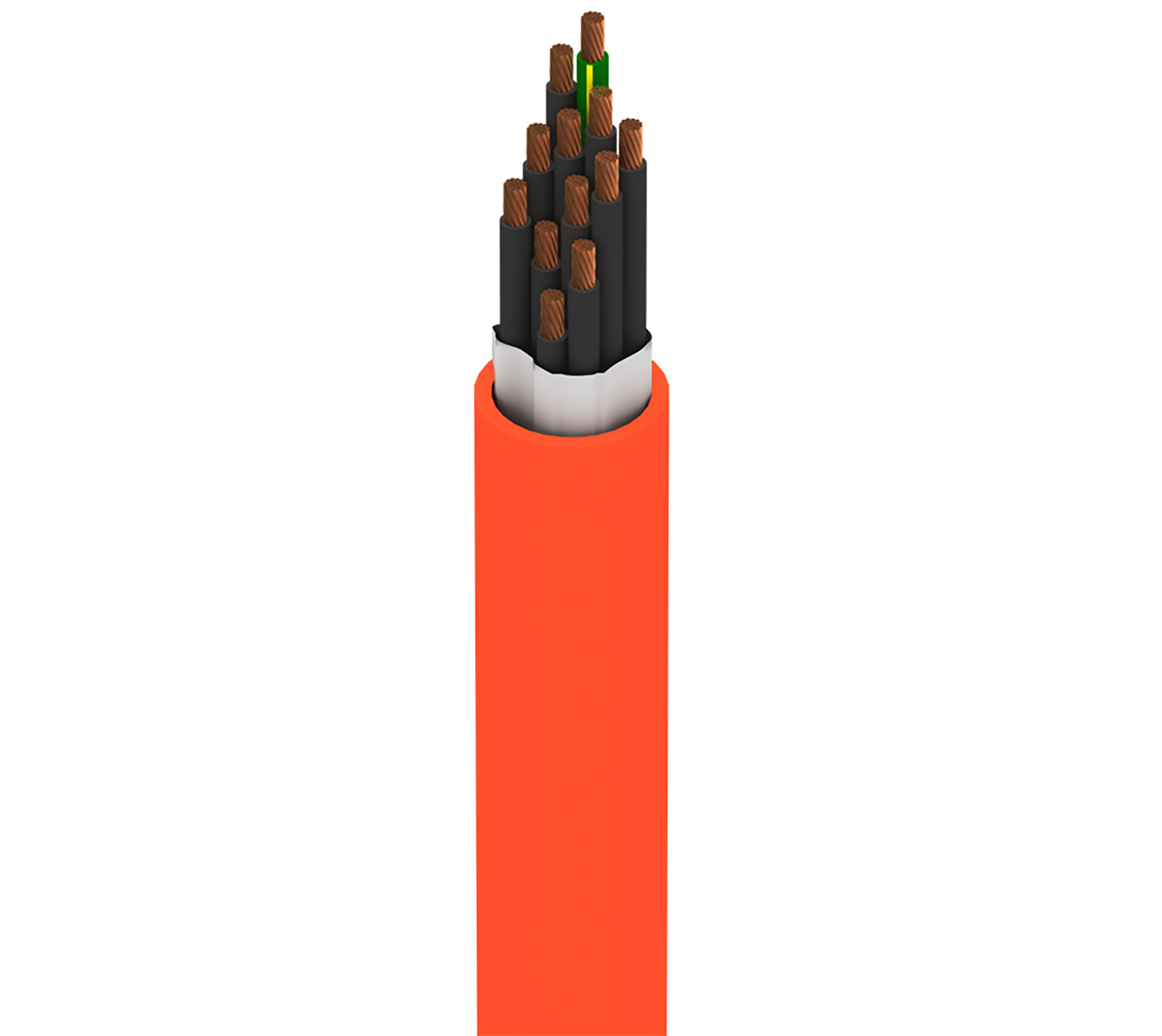

MachFlex™ for High Flex, 11+1G Conductor 16AWG (168(7x24) x38) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Robotics, Robot, Continuous Flex

Physical Characteristics (Overall)
Conductor
Element AWG Stranding Material No. of Conductors
16 163x38 BC - Bare Copper 11
Ground Wire 16 163x38 BC - Bare Copper 1

Conductor Count

12

Insulation
Material Nominal Diameter
PVC/Nylon - Polyvinyl Chloride + Nylon 0.109 in
Color Chart
Number Color
1 Black and Numbered
2 Black and Numbered
3 Black and Numbered
4 Black and Numbered
5 Black and Numbered
6 Black and Numbered
7 Black and Numbered
8 Black and Numbered
9 Black and Numbered
10 Black and Numbered
11 Black and Numbered
12 Green/Yellow
Outer Shield
Material
No Shield
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
TPE - Thermoplastic Elastomer 0.582 in 0.063 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
5.7 Ohm/1000ft
Voltage
UL Voltage Rating
1000 V RMS
600 V RMS
Temperature Range

UL Temp Rating

75°C Dry, 90°C Wet

Other Temp Range

Flexing: -5°C To +90 °C

Mechanical Characteristics

Oil Resistance

Yes

UV Resistance

Yes

Flex Cycle Rating

10 Million Flexes

Bulk Cable Weight

199 lbs/1000ft

Max. Pull Tension

456 lbs

Min. Bend Radius (Continuous Flexing)

5.8 in
Standards

NEC/(UL) Compliance

TC-ER, WTTC

CEC/C(UL) Compliance

CIC, TC

UL AWM Style Compliance

AWM 20328

CSA AWM Compliance

AWM I/II A/B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Non-Halogenated

No

Suitability - Oil Resistance

Yes - Oil Res II

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 UL Loading

CSA Flammability

FT4

IEEE Flammability

IEEE 1202

UL voltage rating

1000 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.385 Revision Date: 01-10-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
7127W 003250 Orange Reel 250 ft 612825182436
7127W 0031000 Orange Reel 1,000 ft 612825182429
7127W 0035000 Orange Reel 5,000 ft 612825182443
