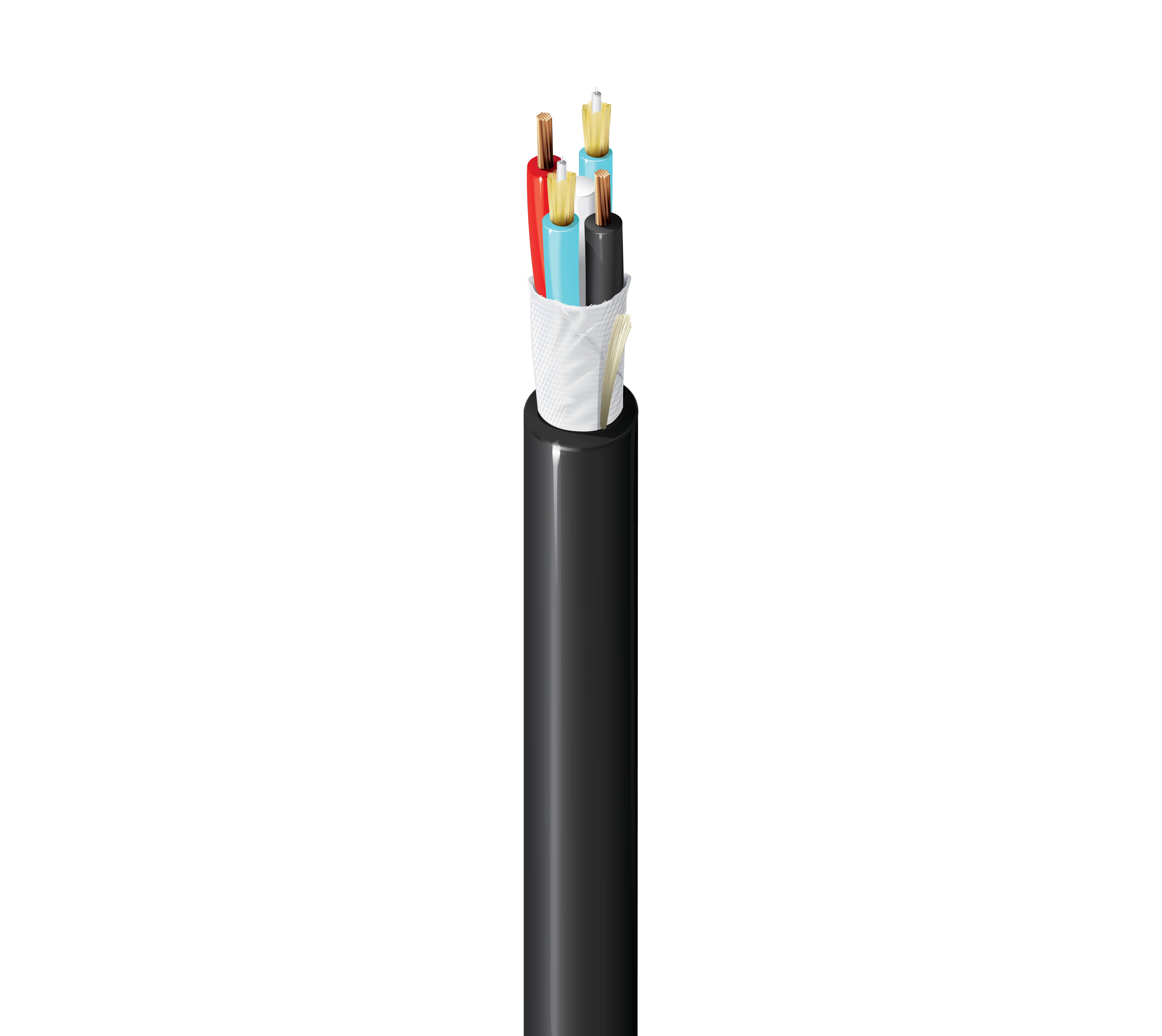

Product Number: HD3B0020212PC
Indoor/Outdoor Hybrid Copper-Fiber Cable, OM3, 2 Breakout Fibers, #12-2c, CL3P-OF
FX HYBRID INDOOR/OUTDOOR, OM3, BREAKOUT 3.0MM, 2 FIBERS, 02 x 12AWG, CL3P-OF, 3.0MM SUB (1F X 900UM), BLACK JACKET
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Distributed Antenna Systems (DAS), Passive Optical Network (PON), Wireless Access Points (WAP), Security (Cameras) |
|---|
Fiber Specifications
|
Fiber Type |
OM3 |
|---|---|
|
Fiber Core Diameter |
50/125 µm |
|
Buffer Material |
PVC - Polyvinyl Chloride |
|
Buffer Diameter |
900 µm |
|
Fiber Count |
2 |
|
Fiber Color Coding |
TIA-598-D |
Fiber Construction
|
Subunit Strength Members |
Waterblocking aramid yarns |
|---|---|
|
Fibers Per Subunit |
1 |
|
Nom. Jacket Diameter |
0.118 in. (3.0 mm) |
|
Jacket Color |
Aqua |
Conductor Specifications
|
AWG Size |
12 |
|---|---|
|
Number of Strands |
19x25 |
|
Conductor Type |
TC - Tinned Copper |
|
Number of Conductors |
2 |
|
Insulation Material |
PVC |
|
Nom. Insulation Diameter |
0.118 in. (3.0 mm) |
Outer Jacket Specifications
|
Jacket Material |
PVC - Polyvinyl Chloride |
|---|---|
|
Nom. Diameter |
0.366 in (9.3 mm) |
|
Color |
Black |
|
Number of Ripcords |
1 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
| 1 Gigabit Ethernet Performance | 1000 m | 550 m |
| 10 Gigabit Ethernet Performance | 300 m | -- |
| Min. Effective Modal Bandwidth (EMB) | 2000 MHz.km | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz.km | 500 MHz.km |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
15x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
1335 N (300 lbf) |
|
Max. Tensile Strength During Operation |
400 N (90 lbf) |
|
Crush Resistance |
220 N/cm |
|
Bulk Cable Weight |
88 lbs/kft (131 kg/km) |
Temperature Range
|
Installation Temperature Range |
0°C to +60°C |
|---|---|
|
Operating Temperature Range |
-40°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Sunlight Resistance, Burial |
|---|---|
|
Sustainability |
CA Prop 65 |
|
NEC / UL Compliance |
CL3P-OF |
|
ICEA Compliance |
S-120-742 |
|
TIA/EIA Compliance |
ICEA S-120-742 |
History
|
Update and Revision |
Revision Number: 0.51 Revision Date: 02-15-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.51 Revision Date: 02-15-2024 |
|---|
