Product Number: 551945
Surveillance CCTV, RG-59 #22 BC, 93% BC Braid, CM

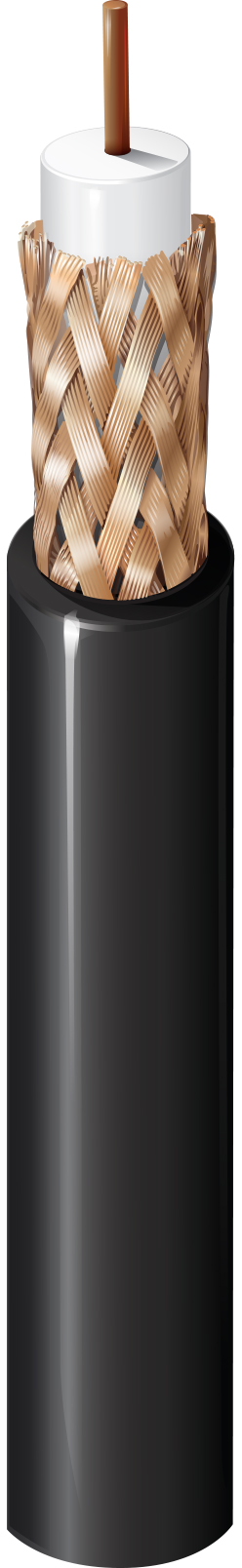

Surveillance & CCTV Cable, RG59, Rated-CM, 22 AWG stranded bare copper, foam polyolefin core, 93% bare copper braid, PVC jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Surveillance, CCTV Camera |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 22 | 7x30 | BC - Bare Copper | 0.03 in | 1 |
Insulation
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene (Foam) | 0.14 in |
|
Table Notes |
Gas Injected |
|---|
Outer Shield
| Type | Material | Coverage [%] |
|---|---|---|
| Braid | Bare Copper (BC) | 93% |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.232 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 15 Ohm/1000ft | 15 Ohm/1000ft | 2.6 Ohm/1000ft | 2.6 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield |
|---|
| 17.3 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.09 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 10 MHz | 0.9 dB/100ft |
| 50 MHz | 2.1 dB/100ft |
| 100 MHz | 3 dB/100ft |
| 200 MHz | 4.5 dB/100ft |
| 400 MHz | 6.6 dB/100ft |
| 700 MHz | 8.9 dB/100ft |
| 900 MHz | 10.1 dB/100ft |
| 1000 MHz | 10.9 dB/100ft |
Delay
| Max. Delay Skew | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 78 ns/100m | 1.3 ns/ft | 78% |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
UL Temp Rating |
75°C |
|---|---|
|
Operating Temperature Range |
-40°C To +75°C |
Mechanical Characteristics
|
Bulk Cable Weight |
28 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
49 lbs |
|
Min. Bend Radius/Minor Axis |
2.5 in |
Dimensions
| Width | Depth |
|---|---|
| 0.76 | 0.79 |
Standards
|
NEC Articles |
Article 800 |
|---|---|
|
NEC/(UL) Compliance |
CM |
|
CEC/C(UL) Compliance |
CM |
|
RG Type |
59 |
|
Series Type |
59 |
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive Compliance |
Yes |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1685 UL Loading |
|---|---|
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
History
|
Update and Revision |
Revision Number: 0.397 Revision Date: 03-27-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.397 Revision Date: 03-27-2024 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 551945 0101000 | Black | Reel | 1,000 ft | 612825163992 |
