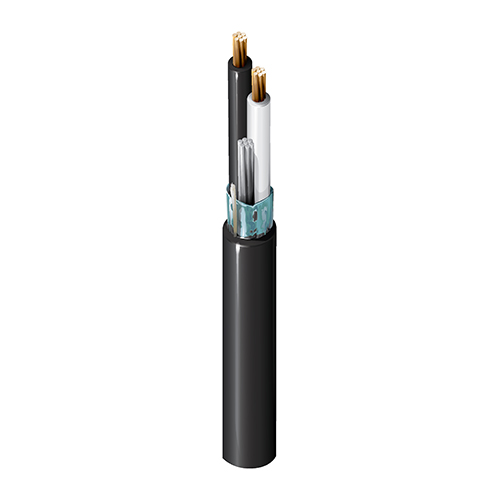

Product Number: 3103A
Inst, 1 Pr #12 Str BC, PVC-NYL Ins E1, OS, Blk PVC Jkt, 600V TC 150V NPLF THHN OR THWN
UL Instrumentation, 1 Pair 12AWG (7x20) Bare Copper, PVC-NYL Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC 150V NPLF THHN OR THWN 90C Dry 75C Wet SUN RES DIR BUR
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),RTD, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, actuators, positioners |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 12 AWG | 7x20 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PVC/Nylon - Polyvinyl Chloride + Nylon | 0.019 in (0.48 mm) | 0.131 in (3.33 mm) | Black, White |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.047 in (1.2 mm) | 0.364 in | Yes |
|
Overall Cable Diameter (Nominal) |
0.364 in |
|---|
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield | Max. Current |
|---|---|---|---|
| 1.65 Ohm/1000ft | 56 pF/ft (180 pF/m) | 106 pF/ft (348 pF/m) | 31 Amps per Conductor at 30ºC |
Voltage
| UL Voltage Rating |
|---|
| 600 V (TC-ER), 150 V (NPLF) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 90°C Dry/Wet | -25°C to +90°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 4.368 in (110.9 mm) | 4.368 in |
|
Max. Pull Tension |
228 lbs (103 kg) |
|---|---|
|
Bulk Cable Weight |
91 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial |
|---|---|
|
Flammability / Reaction to Fire |
UL1685 UL Loading, T-29-520, IEEE 1202 FT4 |
|
NEC / UL Compliance |
Article 336, Article 760 |
|
European Directive Compliance |
EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
Product Notes
|
Notes |
Alternate color coding available upon request. |
|---|
History
|
Update and Revision |
Revision Number: 0.272 Revision Date: 05-31-2024 |
|---|
