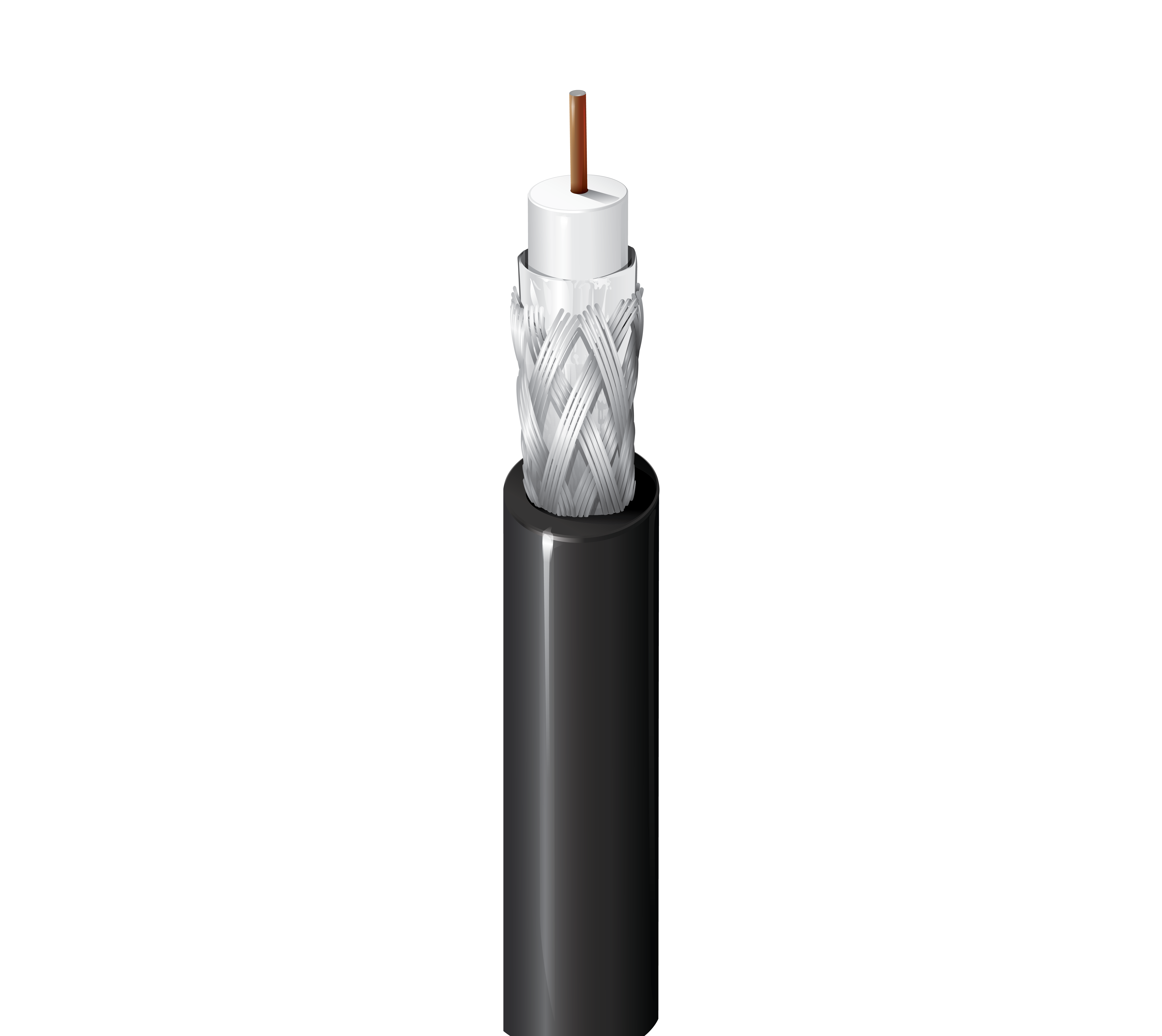

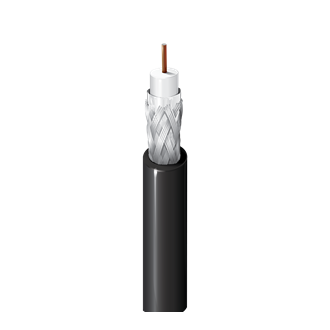

Product Number: 9116R
Broadband Coax, Series 6, 18 AWG Solid BCCS, Foil + 60% AL Braid, PVC Jkt, CMR
Broadband Coax, Series 6, 18 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil + 60% Aluminum Braid Shield, PVC Jacket, CMR
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas |
|---|
Construction Details
|
Series Type |
6 |
|---|
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 18 AWG | Solid | 0.040 in | BCCS - Bare Copper Covered Steel |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 0.180 in (4.57 mm) | White |
Outer Shield
| Layer | Outer Shield Type | Material | Material Trade Name | Coverage |
|---|---|---|---|---|
| 1 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duobond® II | 100% |
| 2 | Braid | Aluminum | 60% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.275 in (6.99 mm) |
|
Overall Cable Diameter (Nominal) |
0.275 in (6.99 mm) |
|---|
Electrical Characteristics
Return Loss
| Frequency | Min. Structural Return Loss |
|---|---|
| 5 - 1000 MHz | 20 dB |
Attenuation
| Frequency | Max. Attenuation |
|---|---|
| 5 MHz | 0.58 dB/100ft |
| 55 MHz | 1.60 dB/100ft |
| 211 MHz | 3.05 dB/100ft |
| 250 MHz | 3.30 dB/100ft |
| 270 MHz | 3.37 dB/100ft |
| 300 MHz | 3.55 dB/100ft |
| 330 MHz | 3.74 dB/100ft |
| 350 MHz | 3.85 dB/100ft |
| 400 MHz | 4.15 dB/100ft |
| 450 MHz | 4.40 dB/100ft |
| 500 MHz | 4.66 dB/100ft |
| 550 MHz | 4.90 dB/100ft |
| 600 MHz | 5.10 dB/100ft |
| 750 MHz | 5.65 dB/100ft |
| 870 MHz | 6.11 dB/100ft |
| 1000 MHz | 6.55 dB/100ft |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 28 Ohm/1000ft | 9 Ohm/1000ft (30 Ohm/km) | 16.2 pF/ft (53.1 pF/m) | 75 Ohm | 83% |
Voltage
| UL Voltage Rating |
|---|
| 350 V RMS (CMR, CMG) |
Mechanical Characteristics
Temperature
| Operating |
|---|
| -30°C to +80°C |
Bend Radius
| Installation Min. |
|---|
| 3 in (76 mm) |
|
Max. Pull Tension |
150 lbs (68 kg) |
|---|---|
|
Bulk Cable Weight |
30 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor - Riser, Indoor, Outdoor, Sunlight Resistance, Aerial - Black only, When supported by messenger wire |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL1666 Vertical Riser |
|
NEC / UL Compliance |
CMR, CATVR, CMG |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
ANSI/SCTE 74 |
|
Plenum Number |
9116P |
History
|
Update and Revision |
Revision Number: 0.477 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.477 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC |
|---|---|---|---|---|
| 9116R 0101000 | Black | Reel | 1,000 ft | 612825224518 |
| 9116R 010U1000 | Black | UnReel | 1,000 ft | 612825224532 |
