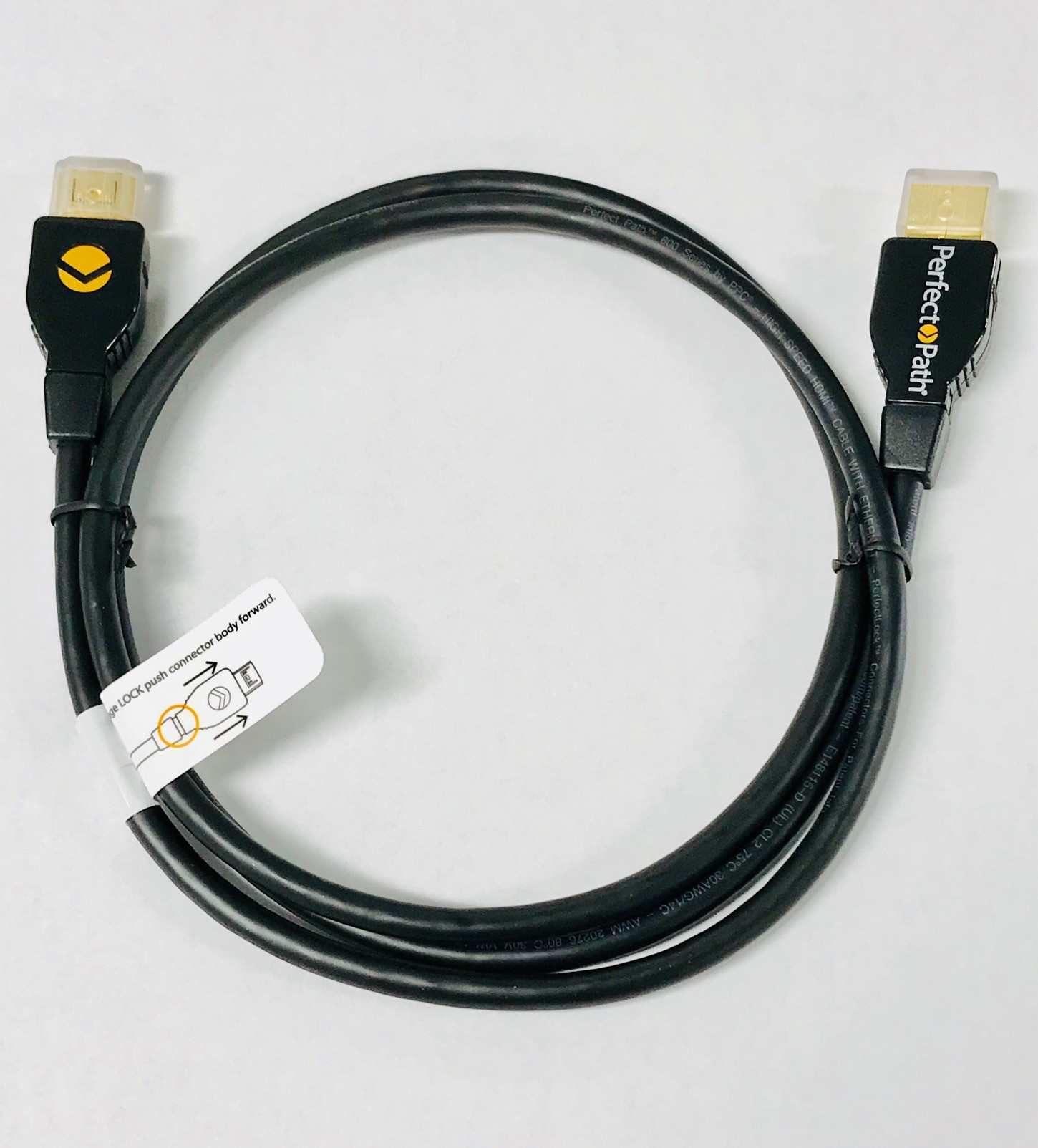

Product Number: Perfect Path Locking HDMI
High Speed HDMI Perfect Path HD-800 Series
High Speed HDMI Perfect Path Locking Connectors, exceeds 10.2 Gbps speed rating to deliver 1080p resolution, includes ethernet & audio return channel, 3D and 4K x 2K ready, 25lb port retention, supports HDMI 1.4.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Digital Signage, Computer Monitors, Projectors, Gaming Consoles, DVD Players |
|---|
Physical Characteristics (Overall)
Outer Shield
| Type | Material | Coverage [%] |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | Color | Nominal Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | Black | .217 in |
Electrical Characteristics
|
Performance Footnote1 |
*Lengths 16, 25, 35 & 50ft include an active extender. |
|---|
Temperature Range
|
Operating Temperature Range |
80°C |
|---|
Mechanical Characteristics
|
Max. Pull Tension |
25 lbs |
|---|
Termination Interface
| Connection |
|---|
| HDMI Type A Connector, 19-Pin Male |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|
Suitability
|
Suitability - Indoor |
Yes |
|---|
History
|
Update and Revision |
Revision Number: 0.54 Revision Date: 11-09-2022 |
|---|
Information
|
Update and Revision |
Revision Number: 0.54 Revision Date: 11-09-2022 |
|---|
Part Numbers
| Item # | Color | Length |
|---|---|---|
| HD-800-2 | Black | 2 ft |
| HD-800-4 | Black | 4 ft |
| HD-800-8 | Black | 8 ft |
| HD-800-16 | Black | 16 ft |
