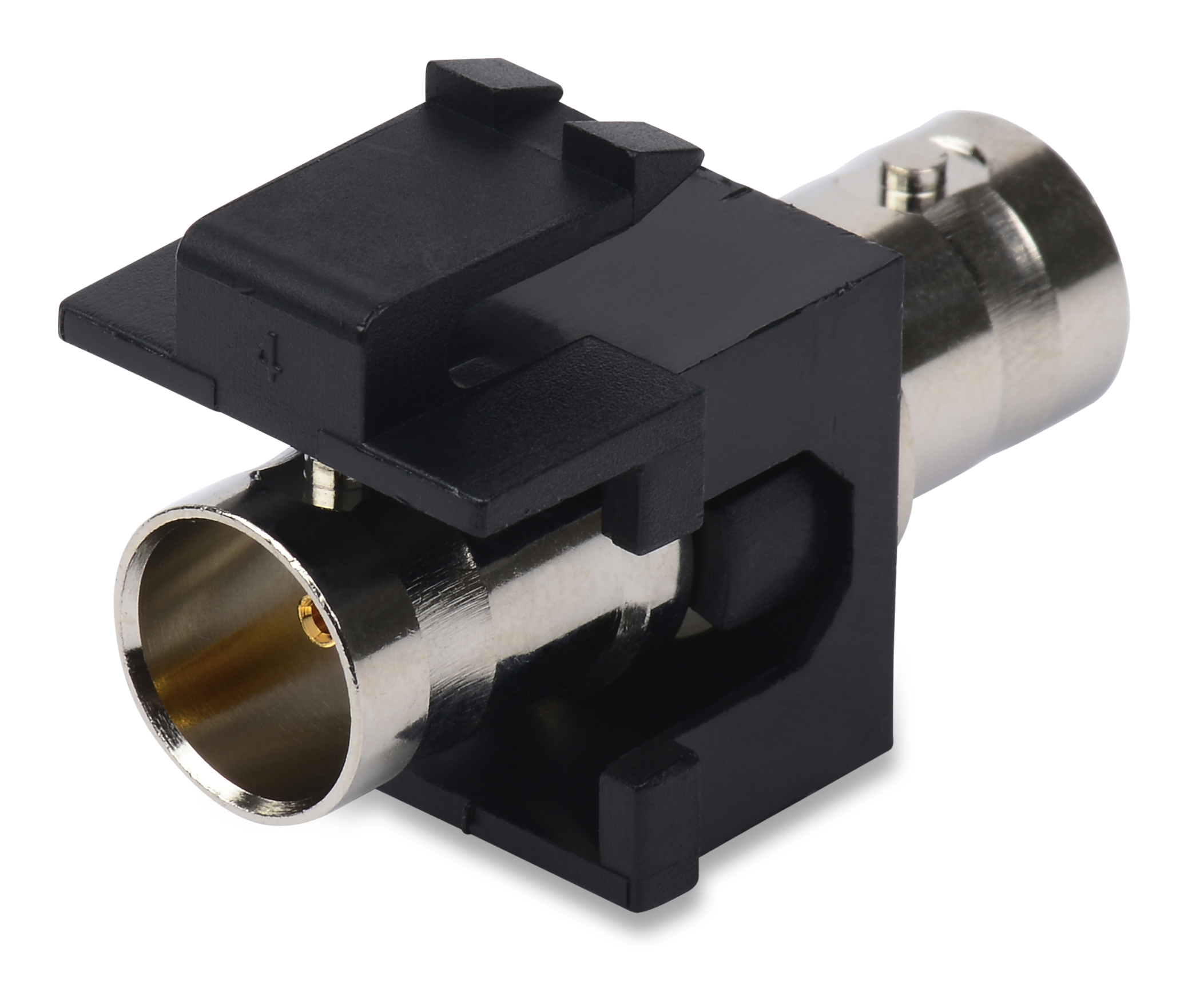

Product Number: KEYCONNECT BNC 75 MODULE
KeyConnect Video BNC 50 or 75 ohm, Surface Module
KeyConnect Video BNC 50 or 75 ohm, Surface Module. Available in several colors.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
BNC Coax |
|---|
Physical Characteristics (Overall)
|
Height |
0.87 m |
|---|---|
|
Width |
0.66 |
|
Depth |
1.28 |
|
Front Connection |
Flush |
|
Packaging |
10 units packaged in a plastic bag. |
|
Weight |
0.011 lbs |
Connectors
Materials
| Material |
|---|
| Plastic - UL94V-0 |
Temperature Range
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
Mechanical Characteristics
|
Footprint/Type |
KeyConnect |
|---|---|
|
Connector/Hardware Retention |
20 lbs |
Standards
|
Environmental Space |
Indoor |
|---|
Applicable Environmental and Other Programs
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|---|---|
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
c(UL)us Listed |
|---|
Related Part Numbers
|
Related Parts |
Compatible with KeyConnect Patch Panel and Faceplate, BNC Coax Cable Assembly |
|---|
Product Notes
|
Notes |
For proper installation refer to Installation Guide PX103826. Visit our web site at http://www.belden.com |
|---|
History
|
Update and Revision |
Revision Number: 0.180 Revision Date: 03-04-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.180 Revision Date: 03-04-2023 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| AX104573 | Almond | 611589006811 |
| AX104574 | Black | 611589006828 |
| AX104575 | Electric White | 611589006835 |
