Product Number: 716SNS1P11H-25

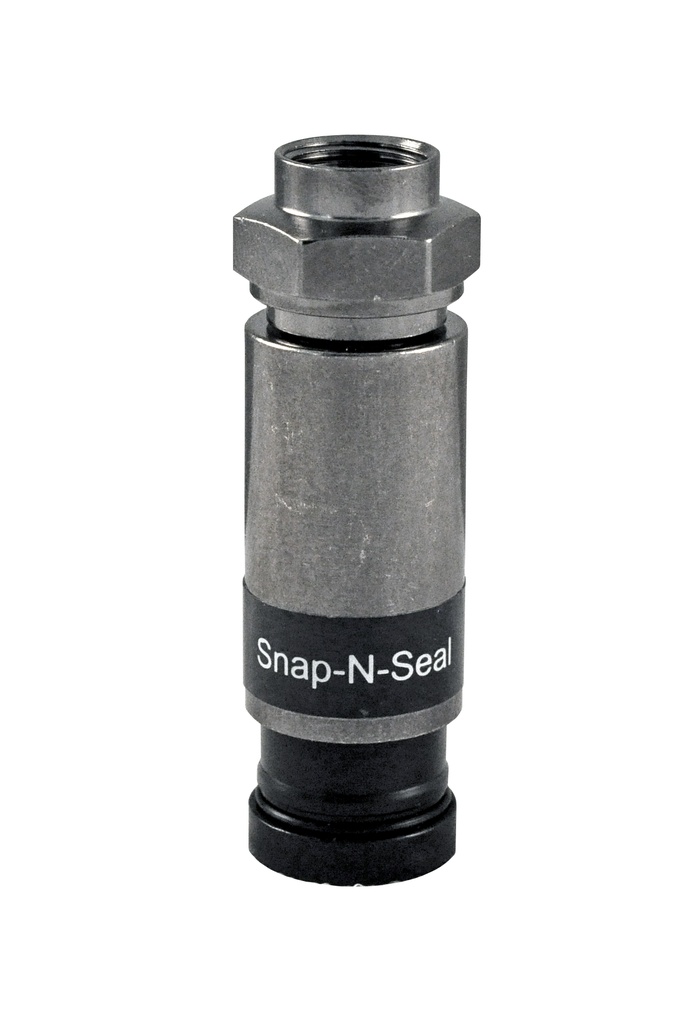

ProSNS RG-11 Universal "F" Coax Compression Connector 7/16" Hex Head
ProSNS RG11 Universal "F" male compression connector, 7/16" hex head, polymer compression sleeve for easy insertion & lowest possible tool compression force. 25 per Pack
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
CATV, Video Distribution, RF Applications |
|---|
Physical Characteristics (Overall)
|
Packaging |
25 Pack |
|---|---|
|
Number of Pieces |
1 |
Connectors
Materials
| Description | Material |
|---|---|
| Nut | Nickel/Tin Plated Brass |
| O-Ring | Ethylene Propylene |
| Body | Nickel/Tin Plated Brass |
| Contact | Gold Plated |
Electrical Characteristics
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
Return Loss
| Frequency [MHz] |
|---|
| ≥-30 dB up to 1 GHz typical |
|
Electrical Characteristics Notes |
Meets or exceeds SCTE specifications. |
|---|
Temperature Range
|
Operating Temperature Range |
-40°F (-40°C) to 140°F (60°C) |
|---|
Mechanical Characteristics
|
Footprint/Type |
Coax |
|---|---|
|
Connector Interface Type |
F |
|
Gender |
Male - plug |
|
Connector Series Name |
ProSNS |
|
Color Band |
Black |
|
Locking |
No |
|
Tool Compatibility |
CPLCCT-LS59/11 or SNSUNI (compression), PS11 (strip) |
|
Termination Type |
Compression |
|
Cable Center Conductor Diameter Limits |
.0634 - .0647 inch |
|---|---|
|
Cable Dielectric Diameter Limits |
.280 - .294 inch |
|
Cable Outer Jacket Diameter Limits |
.390 - .417 inch |
|
Cable Insertion Force |
20 lbf |
|
Cable Retention Force |
40 lbf |
Standards
|
RG Type |
11 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor/Outdoor |
|---|---|
|
EU CE Mark |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
|---|
Product Notes
|
Notes |
Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007, RFI Shielding: -85 dB (60% bonded foil) |
|---|
History
|
Update and Revision |
Revision Number: 0.91 Revision Date: 03-04-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.91 Revision Date: 03-04-2023 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 716SNS1P11H-25 | No Color | 845671002744 |
