Product Number: 1855ABHDL

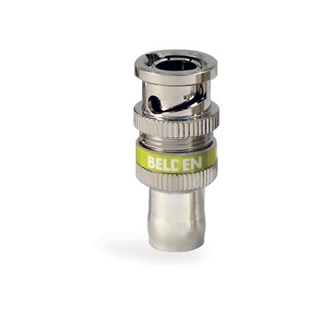

6 GHz Mini RG59 BNC Connector, Locking
Mini RG-59, 6 GHz, HD, BNC, 1 piece locking connector
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
HD-SDI, Video, Digital Video, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P |
|---|
Physical Characteristics (Overall)
|
Packaging |
50 per package |
|---|---|
|
Number of Pieces |
1 |
Connectors
Materials
| Description | Material |
|---|---|
| Nut | Brass, Nickel Plated |
| Body | Brass, Nickel Plated |
| Contact | Brass, Gold Plated |
| Insulator | PTFE |
Electrical Characteristics
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
Return Loss
| Frequency [MHz] | Minimum Return (RL) |
|---|---|
| 5-1485 | 15 dB |
| 1485-3000 | 10 dB |
| 3000-6000 | 7 dB |
|
Electrical Characteristics Notes |
SMPTE 2081-1 Return Loss or better |
|---|
Mechanical Characteristics
|
Footprint/Type |
Coax |
|---|---|
|
Connector Interface Type |
BNC |
|
Gender |
Male - plug |
|
Connector Series Name |
HD |
|
Color Band |
Violet |
|
Locking |
Yes |
|
Tool Compatibility |
CPLCRBC-BR (compression), PS59/6/RGB (strip) |
|
Termination Type |
Compression |
Standards
|
RG Type |
Mini 59 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
No |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
Q - STANDARD PACKAGES CANNOT BE BROKEN. |
|---|
History
|
Update and Revision |
Revision Number: 0.160 Revision Date: 03-04-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.160 Revision Date: 03-04-2023 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 1855ABHDL | Violet | 845671002324 |
