DB58BNC

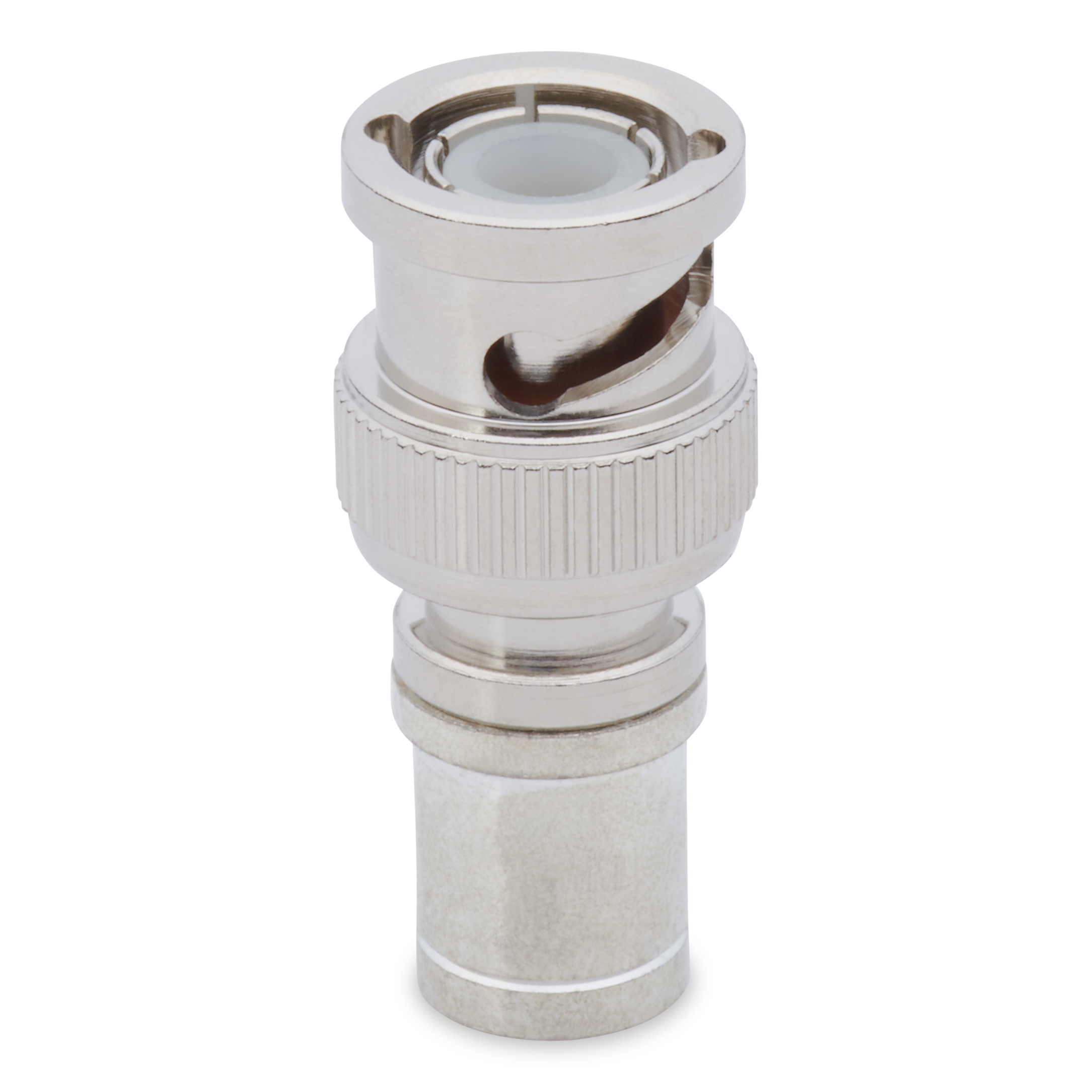

Double Bubble RG-58 BNC Coax Compression Connector

...
Double Bubble RG58 BNC connector, fits standard RG58 50 Ohm coaxial cable. Compression design that molds the metal completely around the cable. 25 per Pack

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Antenna, 50 Ohm

Physical Characteristics (Overall)

Packaging

25 Pack

Number of Pieces

1

Connectors
Materials
Material
Nickel plated Brass
Gold Plated
Electrical Characteristics
Impedance
Nominal Characteristic Impedance
50 Ohm
Mechanical Characteristics

Footprint/Type

Coax

Connector Interface Type

BNC

Gender

Male - plug

Connector Series Name

Double Bubble

Locking

No

Tool Compatibility

CPLCRBC-BR (compression)

Termination Type

Compression

Cable Center Conductor Diameter Limits

.0317 - .0339 inch

Cable Dielectric Diameter Limits

.0111 - .121 inch

Cable Outer Jacket Diameter Limits

.185 - .201 inch

Standards

RG Type

58

Applicable Environmental and Other Programs

EU CE Mark

Yes

Related Part Numbers

Footnote

Q - STANDARD PACKAGES CANNOT BE BROKEN.

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.
