FSNS59BNCU-25

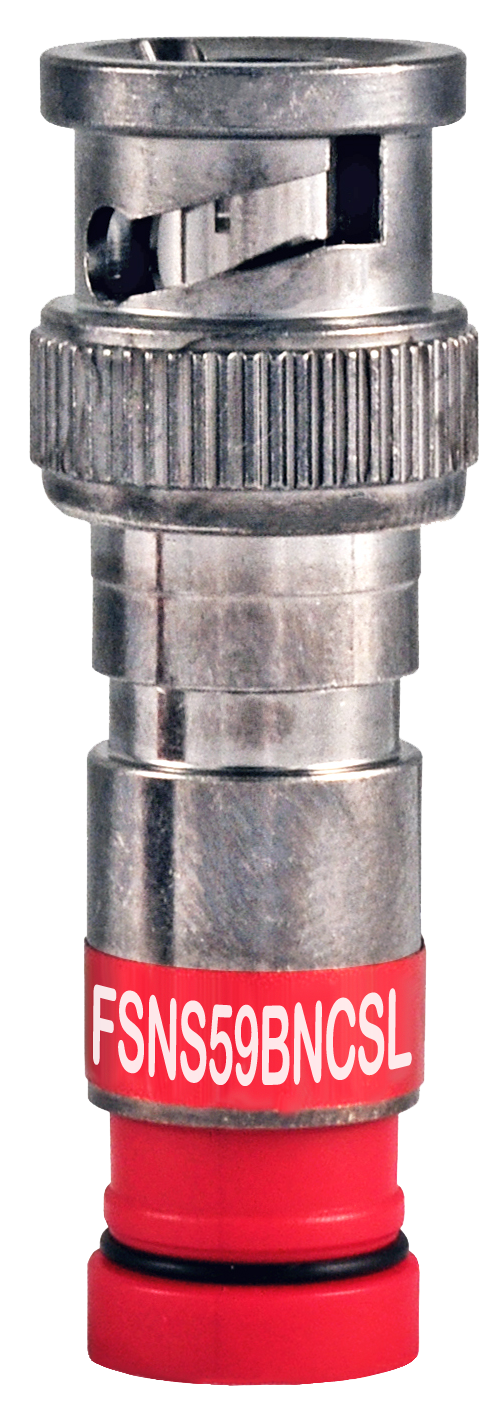

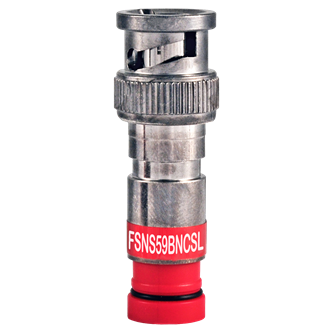

ProSNS RG-59 Universal BNC Coax Compression Connector

...
ProSNS RG59 Universal BNC compression connector, non-blind entry with split ferrule design, polymer compression sleeve for easy insertion & lowest possible tool compression force. Universal BNC connector for standard or quad-shield RG59 cable. 25 per Pack
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging

25 Pack

Number of Pieces

1

Connectors
Materials
Description Material
Nut Nickel/Tin Plated Brass
O-Ring Ethylene Propylene
Body Nickel/Tin Plated Brass
Contact Gold Plated
Electrical Characteristics
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz]
≥-32 dB up to 1 GHz typical

Electrical Characteristics Notes

Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007, RFI Shielding: -85 dB (60% bonded foil), All Belden ProSNS connectors meet or exceed SCTE return loss standards.

Temperature Range

Operating Temperature Range

-40°F (-40°C) to 140°F (60°C)

Mechanical Characteristics

Footprint/Type

Coax

Connector Interface Type

BNC

Gender

Male - plug

Connector Series Name

ProSNS

Color Band

Red

Locking

No

Tool Compatibility

CPLCCT-SLMR or CPSNSCT-596 (compression), PSA59/6 (strip)

Termination Type

Compression

Cable Center Conductor Diameter Limits

.0317 - .0339 inch

Cable Dielectric Diameter Limits

.144 - .157 inch

Cable Outer Jacket Diameter Limits

.232 - .273 inch

Cable Insertion Force

20 lbf

Cable Retention Force

40 lbf

Standards

RG Type

59

Applicable Environmental and Other Programs

Environmental Space

Indoor/Outdoor

EU CE Mark

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

Yes

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Product Notes

Notes

All Belden ProSNS connectors meet or exceed SCTE return loss standards.

History

Update and Revision

Revision Number: 0.132 Revision Date: 03-04-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
FSNS59BNCU-25 No Color 845671002584
