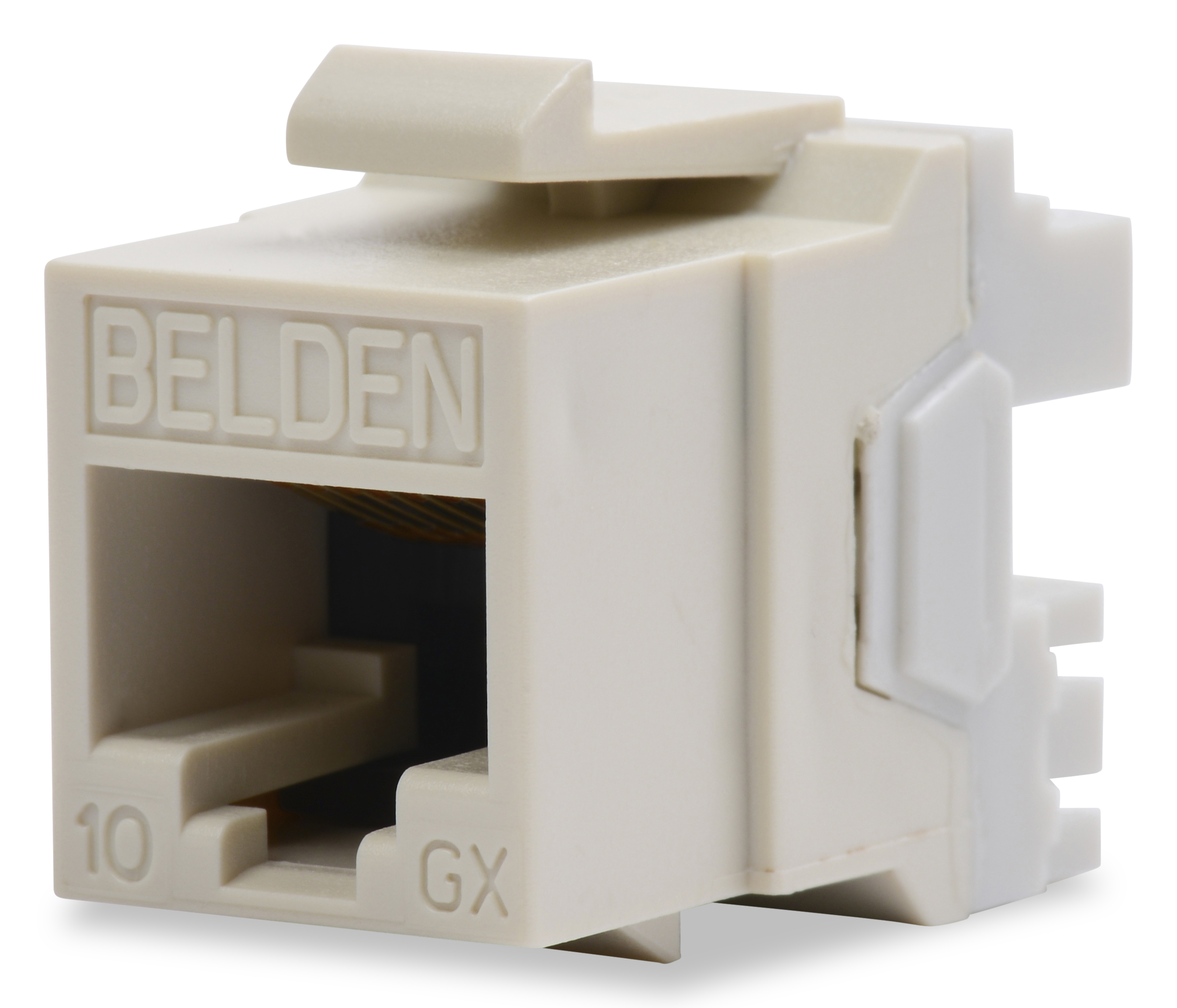

10GX Modular Jack, Category 6A, RJ45, KeyConnect Style
Regions Available: Global
|
Suitable Applications |
IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T |
|---|
|
Overall Height |
0.9 in |
|---|---|
|
Overall Width |
0.675 in |
|
Depth |
1.17 in |
|
Wiring Scheme |
T568A/B |
|
Packaging |
Individually packaged in a plastic bag. Standard pack of 50 units. |
|
Weight |
0.016 lbs |
| Description | Material | Type |
|---|---|---|
| Front Connection | Flexible PCB with 50 µ inch Gold over Nickel | Flexible PCB |
| Rear Connection | Phosphor Bronze with Tin Plating over Nickel | IDC |
| Connector Body | Plastic - UL94V-0 |
|
Dielectric Strength |
1,000V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Termination Resistance |
2.5 mOhm |
|
Installation Temperature Range |
-10°C to +60°C |
|---|---|
|
Storage Temperature Range |
-40°C to +70°C |
|
Operating Temperature Range |
-10°C to +60°C |
|
Footprint/Type |
KeyConnect |
|---|---|
|
Tool Compatibility |
Belden 110 Connecting Tool |
|
Plug /Jack Compatibility |
RJ45, RJ11 |
|
Termination Front Connection |
Mated Connection |
|
Termination Front Connection Durability |
750 cycles |
|
Termination Rear Connection |
IDC Connection |
|
Termination Rear Connection Durability |
20 terminations |
|
Cable/Connector Retention |
15 lbs. |
|
Connector/Hardware Retention |
20 lbs |
|
Plug/Connector Retention |
11.250 lbs |
|
Data Category |
Category 6A |
|---|---|
|
TIA/EIA Compliance |
Category 6A - TIA 568.2-D, ISO/IEC 11801:2002 Amendment 2 |
|
Other Standards |
FCC Part 68, Subpart F, IEC 60603-7 |
|
Third Party Performance Verification |
ETL - Verified Category 6A |
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
|
Safety Listing |
ACA, c(UL)us Listed |
|---|
|
Related Parts |
Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels |
|---|
|
Included Parts |
1 X-Bar |
|---|---|
|
Notes |
Please see Installation Guide PX103771 |
|
Update and Revision |
Revision Number: 0.304 Revision Date: 05-10-2023 |
|---|
| Item # | Color | Packaging |
|---|---|---|
| AX102281 | Almond | Single Pack |
| AX102283 | Black | Single Pack |
| AX104156 | Blue | Single Pack |
| AX104158 | Brown | Single Pack |
| AX102282 | Electric White | Single Pack |
| AX102280 | Gray | Single Pack |
| AX104155 | Green | Single Pack |
| AX103073 | Ivory | Single Pack |
| AX104152 | Orange | Single Pack |
| AX104157 | Purple | Single Pack |
| AX104232 | Stainless Steel | Individually packaged in a plastic bag. Standard pack of 50 units. |
| AX104233 | Stainless Steel | Individually packaged in a plastic bag. Standard pack of 50 units. |
| AX102288 | TIA Blue | Single Pack |
| AX102290 | TIA Brown | Single Pack |
| AX102287 | TIA Green | Single Pack |
| AX102284 | TIA Orange | Single Pack |
| AX102289 | TIA Purple | Single Pack |
| AX102285 | TIA Red | Single Pack |
| AX102286 | TIA Yellow | Single Pack |
| AX104154 | Yellow | Single Pack |
