Product Number: DataConnect CAT6 Jacks

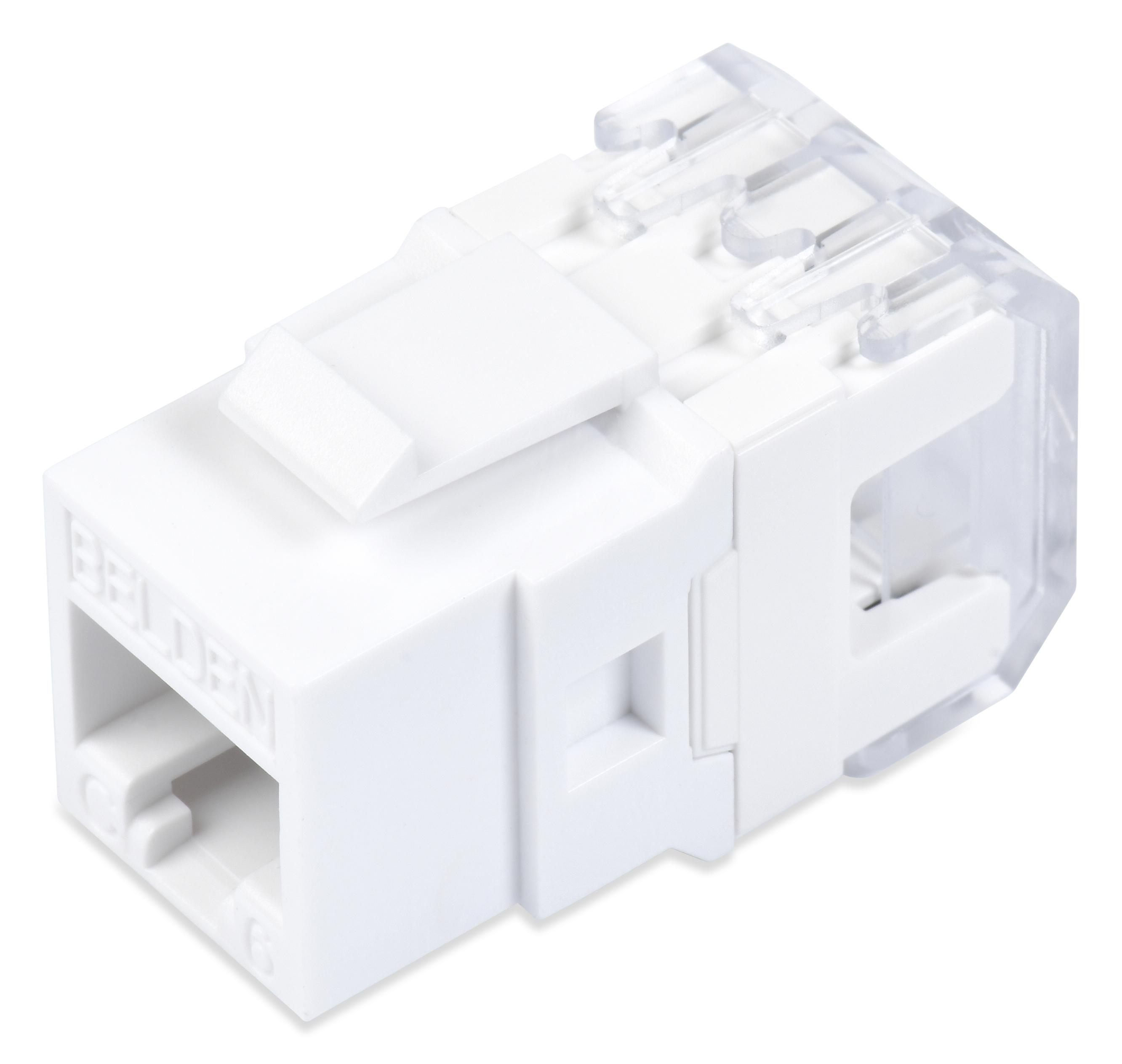

DataConnect CAT6 UTP Modular Jack, T568 A/B
DataConnect CAT6 UTP Modular Jack, T568 A/B, available in several colors
-
Availability:
Americas
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Ethernet 10/ 100/ 1000BASE-T, 2.5G/ 5GBASE-T |
|---|
Physical Characteristics (Overall)
|
Height |
0.93 in |
|---|---|
|
Width |
0.64 in |
|
Depth |
1.360 in |
|
Wiring Scheme |
T568A/B |
|
Packaging |
Packaged in single or bulk packs of 24 |
|
Weight |
0.017 lbs |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Front Connection | Lead Frame Copper Alloy with 50 micro- inch Gold over Nickel | RJ45 |
| Rear Connection | Copper alloy with Nickel Plating | |
| Connector Body | Plastic - UL94V-0 |
Electrical Characteristics
|
Dielectric Strength |
1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.5 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Termination Resistance |
2.5 mOhm |
Temperature Range
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
Mechanical Characteristics
|
Footprint/Type |
Keystone |
|---|---|
|
Tool Compatibility |
Belden 110 Connecting Tool (AX100749) MediaFlex Termination Station (AX101852) Belden Rapid TerminationTool (AX105566) |
|
Plug /Jack Compatibility |
RJ45, RJ11 |
|
Termination Front Connection |
Mated Connection |
|
Termination Front Connection Durability |
750 cycles |
|
Termination Rear Connection |
(IDC) 110 style termination |
|
Termination Rear Connection Durability |
˃ 20 cycles |
|
Cable/Connector Retention |
11.25 lbs. |
|
Connector/Hardware Retention |
20 lbs |
|
Plug/Connector Retention |
11.250 lbs |
Standards
|
UL Rating |
UL94V-0 |
|---|---|
|
ISO/IEC Compliance |
IEC 60603-7 |
|
Data Category |
Category 6 |
|
TIA/EIA Compliance |
ANSI/TIA 1096-A (formerly FCC Part 68-F) |
|
IEEE Compliance |
IEEE 802.3at type 1 and 2 (PoE) up to 30W, IEEE 802.3bt type 3 and 4 (PoE) up to 100W, CISCO (UPOE) up to 60W, Power over HDBaseTTM (POH) up to 100W |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
c(UL)us Listed, UL 1863, UL File E77103 |
|---|
Related Part Numbers
|
Related Parts |
Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels |
|---|
Product Notes
|
Included Parts |
1 Protective Cap |
|---|---|
|
Notes |
Please see Installation Guide PX106885. |
History
|
Update and Revision |
Revision Number: 0.39 Revision Date: 09-26-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.39 Revision Date: 09-26-2024 |
|---|
Part Numbers
| Item # | Color | Packaging |
|---|---|---|
| DC6MJKUBK-S1 | Black | Single Pack |
| DC6MJKUBL-S1 | Blue | Single Pack |
| DC6MJKUEW-S1 | Electric White | Single Pack |
| DC6MJKUGY-S1 | Gray | Single Pack |
