Product Number: FX Fusion OM4 SC Simplex 900

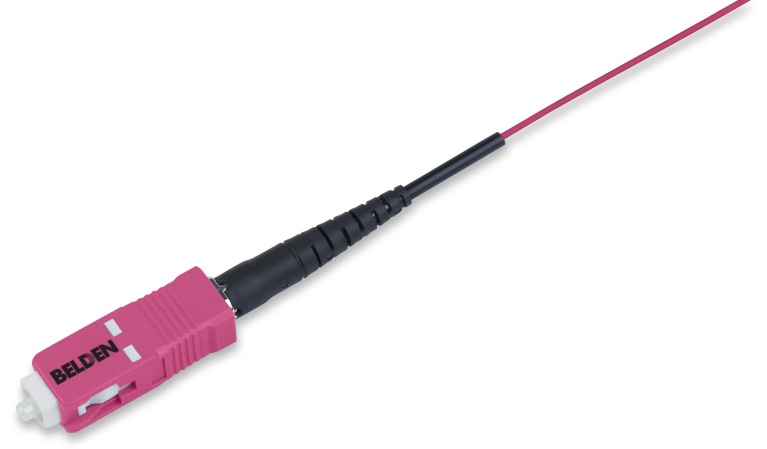

FX Fusion Splice-On Connector OM4 SC Simplex 900μm
FX Fusion Splice-On Connector, OM4, SC Simplex, 900µm Tight Buffer, Erika Violet Housing
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Environmental Space |
Indoor, Outdoor |
|---|---|
|
Suitable Applications |
Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units). |
Construction
Fiber Cable Construction
| Fiber Type |
|---|
| OM4 |
|
Weight |
0.021 kg |
|---|---|
|
Height |
9.652 mm |
|
Width |
6.096 mm |
|
Length |
79.756 mm |
Mechanical Characteristics
Mechanical Specifications
| Test | TIA 568.3-D (MM) |
|---|---|
| Intermateability Requirement | FOCIS compliant with latest revision of TIA-604-3 (SC) |
| Operating Temp Range | -40° to 85°C |
| Storage Temp Range | -40° to 75°C |
| Durability | 500 Insertions |
| Cable retention, straight pull | 0.51 kg |
| Cable retention, 90 degree pull | 0.2 kg |
| Flex | 0.20 kg |
| Twist | 0.20 kg |
| Transmission with Applied Load | 0.7 kgf (0° & 90°), 0.25kgf (135°) |
|
Maximum Insertion Loss |
0.2 dB |
|---|---|
|
Minimum Reflectance @ 1550nm |
-25 dB |
Mechanical Tests
| Description |
|---|
|
Termination Style |
Splice-On |
|---|
|
Durabilities@Termination1 |
500 Insertions |
|---|
Temperature Range
|
Operating Temperature Range |
-40° to 85°C |
|---|---|
|
Storage Temperature Range |
-40° to 75°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Boot | Rubber | Black |
| Protective Ferrule Cap | Plastic | Opaque |
| Connector Front Housing | Plastic | Erika Violet |
| Connector Rear Housing | Nickel plated zinc alloy diecast | |
| Ferrule | Zirconia-Ceramic | White |
Standards
|
TIA/EIA Compliance |
TIA 568.3 |
|---|---|
|
MII Order #39 (China RoHS) |
EUP 50 |
Related Part Numbers
|
Included Parts |
900 µm boot, protective ferrule cap, splice protection sleeve |
|---|---|
|
Related Parts |
FX Splice-On Installation Kit, FX Pigtails. |
Product Notes
|
Packaging |
Single Pack |
|---|
History
|
Update and Revision |
Revision Number: 0.251 Revision Date: 02-12-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.251 Revision Date: 02-12-2025 |
|---|
Part Numbers
| Item # | Color | Packaging | UPC |
|---|---|---|---|
| FT4SC900FS01 | Erika Violet | Single Pack | 611589217514 |
