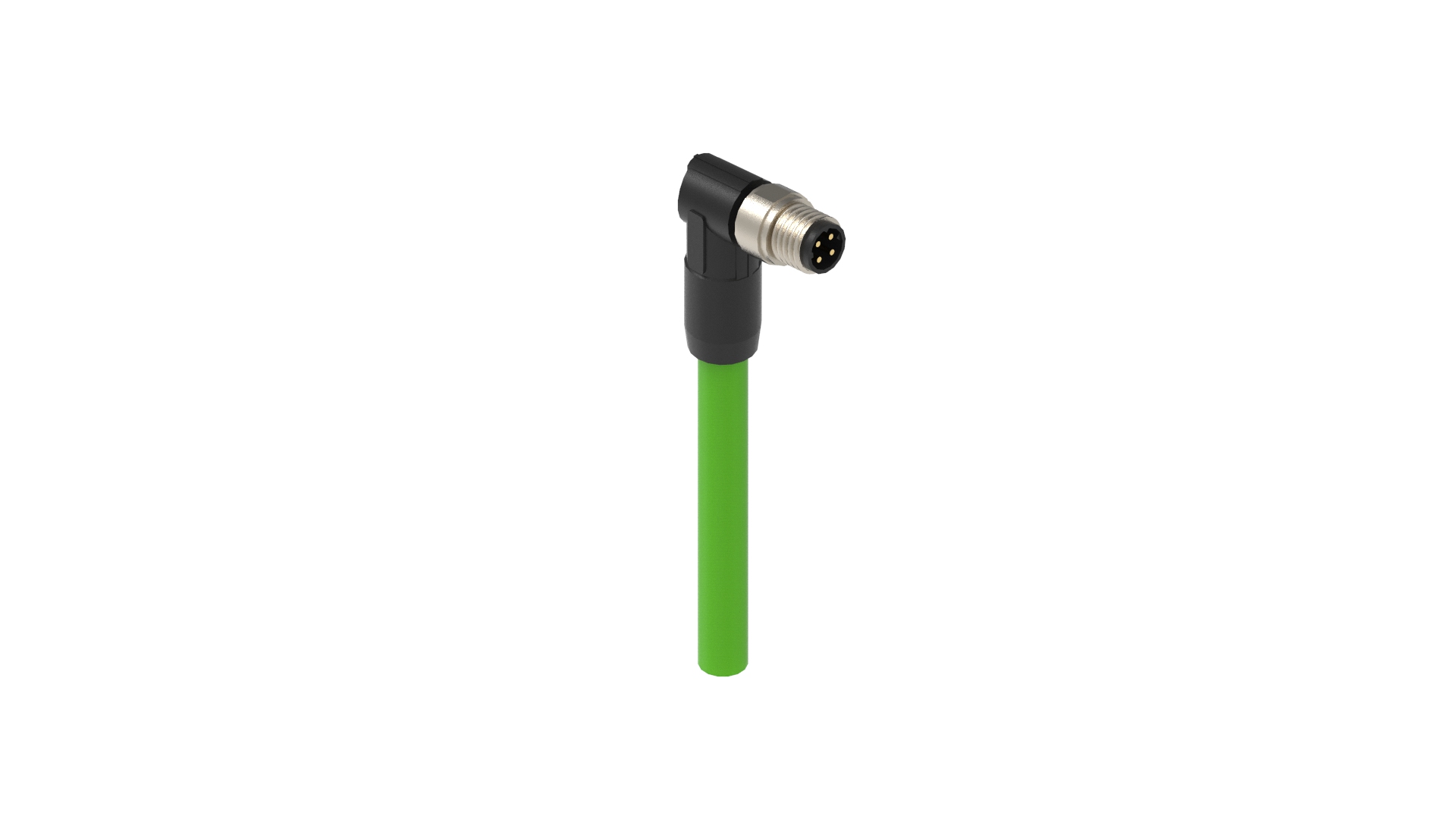

M8 pigtail, PROFINET (Fast Ethernet 100 Mbit/s), Cat 5e, shielded, male, 4 poles, D coded, angled, PUR green cable, AWM 20549, 48 V AC / 60 V DC, 4 A / 0.5 A UL rated, IP65, IP67
| Pin 1 | Pin 2 | Pin 3 | Pin 4 |
|---|---|---|---|
| yellow | white | orange | blue |
|
Product Family |
Data Connectors |
|---|---|
|
Product Sub Family |
M8 4D |
|
Connector Type |
Cordset, single ended |
|
Type of Contact / Gender |
Male |
|
Connector Design |
Angled |
|
Number of Pins |
4 |
|
Coding |
D |
|
Shielding |
Shielded |
|
Attachment Type |
Coupling Screw |
|
Rated Voltage |
60 V |
|
Rated Voltage (UL) |
30 V |
|
Rated Impulse Voltage |
1.5 kV |
|
Operating Voltage |
48 V AC / 60 V DC |
|
Rated Current* |
4 A |
|
Rated Current (UL)* |
0.5 A |
|
Data Transmission |
Fast Ethernet Cat5e |
|
Data Transmission Rate |
100 Mbit/s |
|
Contact Resistance |
10 mOhm |
|
Insulation Resistance |
˃ 10^8 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
- 25 °C - + 90 °C |
|
Protection Degree / IP Rating** |
IP65, IP67 |
|
Design Standard |
IEC 61076-2-114 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuSn |
|---|---|
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
PA |
|
Contact Bearer Color |
Black |
|
Molded Body Material |
TPU |
|
Molded Body Color |
Black |
|
Housing Material |
TPU |
|
Housing Color |
Black |
|
Attachment Material |
CuZn |
|
Attachment Plating |
Nickel-plated |
|
Fastening Torque (Attachment) |
M 8x1: 20 Ncm, hand-tight |
|---|
|
Cable Number |
467 |
|---|---|
|
Conductor Size |
2x2x0.34 mm² |
|
Number of Wires |
4 |
|
Minimal Bending Radius (Fixed Inst) |
5 x D |
|
Minimal Bending Radius (Flexible Inst) |
10 x D |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PUR |
|
Cable Jacket Color |
green |
|
Cable Diameter D |
ø 6.5 ±0.20 mm |
|
Wire Insulation Material |
PE |
|
Insulated Wire Diameter |
ø 1,63 ±0.05 mm |
|
Overall Shield (Cable) |
Cu-ETP1 tinned |
|
Foil shield |
AL-PETP |
|
Ambient Temperature (Fixed Installation) |
- 25 °C - + 90 °C |
|
Ambient Temperature (Flex Installation) |
-25 °C - +60 °C |
|
Ambient Temperature (Drag Chain Inst) |
- 5 °C - + 60 °C |
|
UL Cable Type |
AWM: 20549 |
|
Flammability Class (Cable Jacket) |
FT-2 |
|
Cable Characteristics |
Exclusion of dangerous materials |
|
Core Colors |
quad: white & blue & yellow & orange |
|
UL-File |
E469096 |
|---|---|
|
UL |
UL 1863; cULus |
|
RoHS Compliant |
yes |
|---|
|
Halogenfree |
IEC 60754-1 |
|---|
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Note |
Do not connect or disconnect under load. |
| Item # | Item Description | Cable Length |
|---|---|---|
| 935034001 | RSMWVS-4D-0467/01 M | 1 m |
| 935034002 | RSMWVS-4D-0467/02 M | 2 m |
| 935034003 | RSMWVS-4D-0467/05 M | 5 m |
| 935034004 | RSMWVS-4D-0467/10 M | 10 m |
