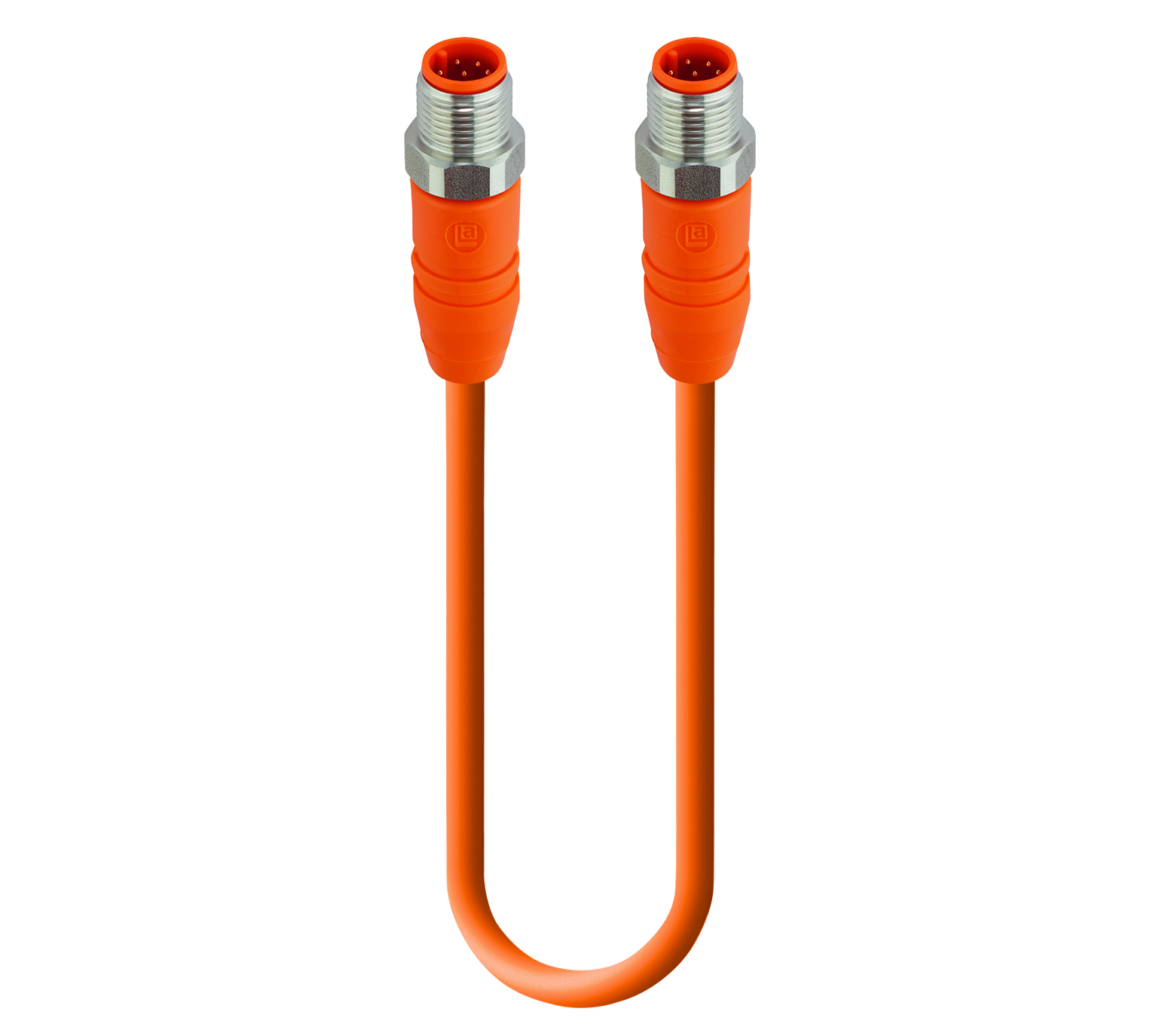

Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 8-pin M12 Standard connector to male straight A-coded orange 8-pin M12 Standard connector, shielded, 30 V AC/DC, 2 A; PVC orange cable, 8-wires, 0.25 mm²
| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 |
|---|---|---|---|---|---|---|---|
| white | brown | green | yellow | grey | pink | blue | red |
| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 |
|---|---|---|---|---|---|---|---|
| white | brown | green | yellow | grey | pink | blue | red |
|
Product Family |
Sensor / Actuator Connectors |
|---|---|
|
Connector Type |
Cordset, double ended |
|
Shielding |
Shielded |
|
Rated Voltage |
30 V |
|
Rated Impulse Voltage |
0.8 kV |
|
Operating Voltage |
30 V AC/DC |
|
Rated Current* |
2 A |
|
Product Sub Family |
M12 Standard |
|---|---|
|
Type of Contact / Gender |
Male |
|
Connector Design |
Straight |
|
Attachment Type |
Coupling Screw |
|
Number of Pins |
8 |
|
Coding |
A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
- 40 °C - + 90 °C |
|
Protection Degree / IP Rating** |
IP65, IP67 |
|
Design Standard |
IEC 61076-2-101 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
TPU-GF |
|
Contact Bearer Color |
Orange |
|
Flammability Class (Contact Bearer) |
UL 94 HB |
|
Molded Body Material |
TPU |
|
Molded Body Color |
Orange |
|
Flammability Class (Molded Body) |
UL 94 HB |
|
Attachment Material |
Stainless Steel |
|
Shielding Material |
Stainless Steel |
|
Fastening Torque (Attachment) |
M 12x1: (50-60) Ncm, hand-tight |
|
Note |
Do not connect or disconnect under load. |
|
Cable Number |
184 |
|---|---|
|
Conductor Size |
0.25 mm² |
|
Number of Wires |
8 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 5 x D |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PVC |
|
Cable Jacket Color |
orange |
|
Cable Diameter D |
ø 6.6 ± 0.20 mm |
|
Wire Insulation Material |
PVC |
|
Insulated Wire Diameter |
ø 1.30 mm |
|
Overall Shield (Cable) |
C-Shield |
|
Ambient Temperature (Fixed Installation) |
- 40 °C - + 105 °C |
|
Ambient Temperature (Flex Installation) |
+ 5 °C - + 105 °C |
|
Flammability Class (Cable Jacket) |
IEC 60332-1 , VDE 0482-265-2-1 , EN 50265-2-1 |
|
Cable Characteristics |
Mainly plasticizer diffusion free; Exclusion of silicone |
|
Product Sub Family, Side 2 |
M12 Standard |
|---|---|
|
Type of Contact / Gender, Side 2 |
Male |
|
Connector Design, Side 2 |
Straight |
|
Attachment Type, Side 2 |
Coupling Screw |
|
Number of Pins, Side 2 |
8 |
|
Coding, Side 2 |
A |
|
Contact Resistance, Side 2 |
≤ 10 mOhm |
|
Insulation Resistance, Side 2 |
˃ 10^9 Ohm |
|
Mating Cycles, Side 2 |
≤ 100 |
|
Ambient Temperature (Operation), Side 2* |
- 40 °C - + 90 °C |
|
Protection Degree / IP Rating, Side 2** |
IP65, IP67 |
|
Design Standard, Side 2 |
IEC 61076-2-101 |
|
Pollution Degree, Side 2 |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category, Side 2 |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material, Side 2 |
CuZn |
|
Contact Plating, Side 2 |
Cu/Au |
|
Contact Bearer Material, Side 2 |
TPU-GF |
|
Contact Bearer Color, Side 2 |
Orange |
|
Flammability Class (Contact Bearer), Side 2 |
UL 94 HB |
|
Molded Body Material, Side 2 |
TPU |
|
Molded Body Color, Side 2 |
Orange |
|
Flammability Class (Molded Body), Side 2 |
UL 94 HB |
|
Attachment Material, Side 2 |
Stainless Steel |
|
Shielding Material, Side 2 |
Stainless Steel |
|
Fastening Torque (Attachment), Side 2 |
M 12x1: (50-60) Ncm, hand-tight |
|
RoHS Compliant |
yes |
|---|
|
Oil Resistance |
Good chemical and oil resistance |
|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
Note Derating |
Notice derating |
| Item # | Item Description | Cable Length |
|---|---|---|
| 7148 | RSTSN 8-RSTSN 8-184/0,8 M | 0.8 m |
