Product Number: 1318SB

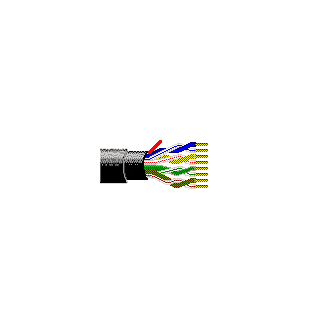

Upjacketed Category 5e, #24-4pr, LSZH Jacket, CMG-LS, Shipboard ABS Type Approved
24 AWG solid bare copper conductors, polyolefin insulation, rip cord, see color code chart (below), LSZH jacket. Descending footage marked every two feet.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422 |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 | Solid | BC - Bare Copper | 4 |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
Insulation
| Material |
|---|
| PO - Polyolefin |
|
Bonded-Pair |
N/A |
|---|
Color Chart
| Number | Color |
|---|---|
| 1 | White/Blue Stripe & Blue |
| 2 | White/Orange Stripe & Orange |
| 3 | White/Green Stripe & Green |
| 4 | White/Brown Stripe & Brown |
Inner Jacket
| Material | Nominal Diameter | Ripcord |
|---|---|---|
| PE - Polyethylene | 0.255 in | Yes |
Outer Shield
| Material |
|---|
| No Shield |
Outer Jacket
| Material | Nominal Diameter | Ripcord |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.308 in | No |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 93.8 Ohm/km | 3 % |
Capacitance
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 330 | 15 pF/ft |
Delay
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|---|
| 100 MHz | 538 ns/100m | 45 ns/100m | 70% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Min. SRL (Structural Return Loss) | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2 dB/100m | 65.3 dB | 62.3 dB | 63 dB | 60.3 dB | 63.8 dB | 60.8 dB | 20 dB | 23 dB | 100 ± 15 | 100 ± 15 |
| 4 MHz | 4.1 dB/100m | 56.3 dB | 53.3 dB | 51 dB | 49.2 dB | 51.7 dB | 48.7 dB | 23 dB | 23 dB | 100 ± 15 | 100 ± 15 |
| 8 MHz | 5.8 dB/100m | 51.8 dB | 48.8 dB | 46 dB | 43 dB | 45.7 dB | 42.7 dB | 24.5 dB | 24.5 dB | 100 ± 15 | 100 ± 15 |
| 10 MHz | 6.5 dB/100m | 50.3 dB | 47.3 dB | 43 dB | 40.8 dB | 43.8 dB | 40.8 dB | 25 dB | 25 dB | 100 ± 15 | 100 ± 15 |
| 16 MHz | 8.2 dB/100m | 47.3 dB | 44.3 dB | 39 dB | 36 dB | 39.7 dB | 36.7 dB | 25 dB | 25 dB | 100 ± 15 | 100 ± 15 |
| 20 MHz | 9.3 dB/100m | 45.8 dB | 42.8 dB | 36.5 dB | 33.5 dB | 37.7 dB | 34.7 dB | 25 dB | 25 dB | 100 ± 15 | 100 ± 15 |
| 25 MHz | 10.4 dB/100m | 44.3 dB | 41.3 dB | 33.9 dB | 30.9 dB | 35.8 dB | 32.8 dB | 24.3 dB | 24.3 dB | 100 ± 15 | 100 ± 15 |
| 31.25 MHz | 11.7 dB/100m | 42.9 dB | 39.9 dB | 31 dB | 28.2 dB | 33.9 dB | 30.9 dB | 23.6 dB | 23.6 dB | 100 ± 15 | 100 ± 15 |
| 62.5 MHz | 17 dB/100m | 38.4 dB | 35.4 dB | 22 dB | 19 dB | 27.8 dB | 24.9 dB | 21.5 dB | 21.5 dB | 100 ± 15 | 100 ± 15 |
| 100 MHz | 22 dB/100m | 35.3 dB | 32.3 dB | 14 dB | 10.3 dB | 23.8 dB | 20.8 dB | 20.1 dB | 20.1 dB | 100 ± 15 | 100 ± 15 |
| 155 MHz | 28.1 dB/100m | 32.5 dB | 29.5 dB | 4.4 dB | 1.4 dB | 19.9 dB | 16.9 dB | 15.8 dB | 100 ± 25 | 100 ± 15 | |
| 200 MHz | 32 dB/100m | 30.8 dB | 27.8 dB | 4 dB | 1 dB | 17.7 dB | 14.7 dB | 15 dB | 100 ± 25 | 100 ± 15 |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
UL Temp Rating |
60°C |
|---|---|
|
Storage Temperature Range |
-30°C To +60°C |
|
Operating Temperature Range |
-30°C To +60°C |
Mechanical Characteristics
|
Bulk Cable Weight |
44 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
35 lbs |
|
Min. Bend Radius/Minor Axis |
3 in |
Standards
|
NEC/(UL) Compliance |
CMG-LS |
|---|---|
|
CEC/C(UL) Compliance |
CMG-ST1 |
|
CPR Euroclass |
Eca |
|
IEEE Compliance |
Std. 45 clause 23 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor/Outdoor - Euroclass Eca |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1685 FT4 Loading, Limited Smoke |
|---|---|
|
IEC Flammability |
IEC 60332-1-2, IEC 60332-3-22 |
|
IEEE Flammability |
1202 |
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
Product Notes
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. RJ-45 Compatible. Jacket marked with descending footage at 2 ft. intervals. |
|---|
History
|
Update and Revision |
Revision Number: 0.499 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.499 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 1318SB 0101000 | Black | Reel | 1,000 ft | 612825111818 |
