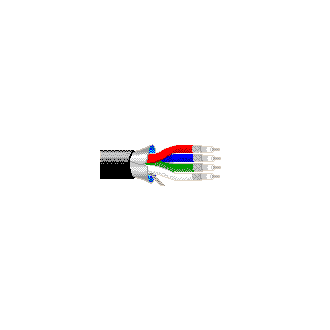

1521A

RGB Video, Mini #30-4 Coax Stranded TC, CL2

...
RGB Video Coax, CL2-Rated, 4-30 AWG stranded tinned copper conductors, foam HDPE insulation, Duofoil® +90% tinned copper braid shield, overall Beldfoil® shield, inner PVC jackets, PVC jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
30 7x38 TC - Tinned Copper 0.012 in 4

Conductor Count

4

Insulation
Material Nominal Diameter
PE - Polyethylene (Foam) 0.056 in
Color Chart
Number Color
1 Red
2 Green
3 Blue
4 White
Inner Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Tinned Copper (TC) 90%
Inner Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.102 in
Outer Shield
Type Material Material Trade Name Coverage [%]
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100%
Outer Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.31 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
100 Ohm/1000ft 100 Ohm/1000ft 9.5 Ohm/1000ft 9.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Other Conductor to Shield Nom. Capacitance Conductor to Shield
17.3 pF/ft 17.3 pF/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Minimum Return (RL)
10-40 MHz 25 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.8 dB/100ft
5 MHz 1.5 dB/100ft
10 MHz 2.2 dB/100ft
30 MHz 4 dB/100ft
50 MHz 5.4 dB/100ft
100 MHz 8.2 dB/100ft
200 MHz 12.5 dB/100ft
400 MHz 18.9 dB/100ft
700 MHz 26.5 dB/100ft
900 MHz 30.8 dB/100ft
1000 MHz 32.8 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.3 ns/ft 78%
Voltage
UL Voltage Rating Voltage Rating [V]
300 V RMS 30 V RMS
300 V RMS (CL2)

Electrical Characteristics Notes

30 V RMS (UL AWM Style 1354); 300 V RMS (CL2)

Temperature Range

Non-UL Temp Rating

60°C

UL Temp Rating

60°C

Operating Temperature Range

-40°C To +60°C

Mechanical Characteristics

Bulk Cable Weight

55 lbs/1000ft

Max. Pull Tension

56 lbs

Min. Bend Radius/Minor Axis

3 in
Standards

NEC/(UL) Compliance

CL2

UL AWM Style Compliance

AWM 1354 (each coax), AWM 2688 (overall)

CPR Euroclass

Eca

RG Type

Ultra-miniature 59

Applicable Environmental and Other Programs

Environmental Space

Indoor (Not Riser or Plenum)

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

No

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.389 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
1521A 010500 Black Reel 500 ft 612825356547
1521A 0101000 Black Reel 1,000 ft 612825356530
