Product Number: 501PTZ
PTZ, RG-59 #20, #22-1pr, #18-2c, Shielded, CM, Siamese

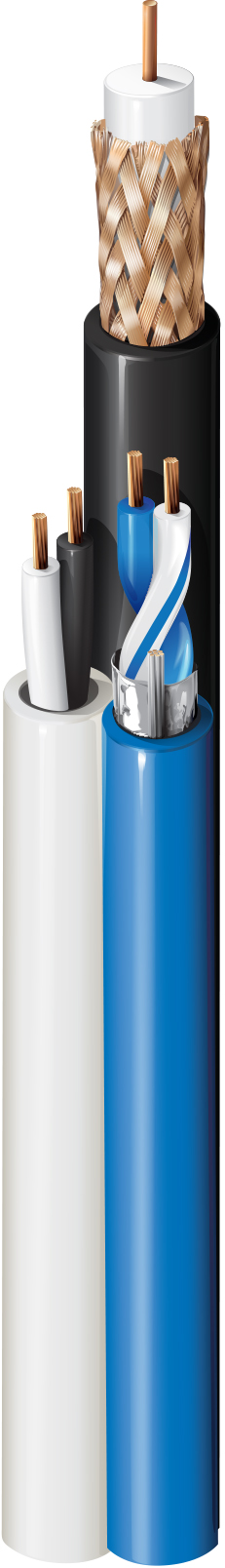

PTZ (CCTV + Control + Power) Cable, Rated-CM, 1-RG59 20 AWG solid bare copper with foam polyolefin, 95% bare copper braid, 1-22 AWG stranded bare copper pair with polyolefin insulation and Beldfoil® shield, 2-18 AWG stranded bare copper conductors with PVC insulation, Siamese with PVC jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom) |
|---|
Physical Characteristics (Overall)
Conductor
| Element | AWG | Stranding | Material | Nominal Diameter | No. of Conductors | No. of Coax |
|---|---|---|---|---|---|---|
| Coax(es) | 20 | Solid | BC - Bare Copper | 0.032 in | 1 | |
| Pair1 | 22 | 7x30 | BC - Bare Copper | 0.03 in | 2 | |
| Pair2 | 18 | 7x26 | BC - Bare Copper | 0.047 in | 2 |
|
Conductor Count |
5 |
|---|
Insulation
| Element | Material | Nominal Diameter |
|---|---|---|
| Coax(es) | PE - Polyethylene (Foam) | 0.145 in |
| Pair1 | PP - Polypropylene | 0.062 in |
| Pair2 | PP - Polypropylene |
|
Table Notes |
Gas Injected |
|---|
Color Chart
| Number | Color |
|---|---|
| Coax Core | White |
| Pair1 | Blue & White/Blue |
| Pair2 | Black & Red |
Inner Shield
| Element | Type | Material | Material Trade Name | Coverage [%] | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Coax(es) | Braid | Bare Copper (BC) | 95% | 22 | 7x30 | |
| Pair1 | Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | ||
| Pair2 | No Shield |
Inner Jacket
| Material |
|---|
| PVC - Polyvinyl Chloride |
| PVC - Polyvinyl Chloride |
| PVC - Polyvinyl Chloride |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| Banana Peel (No Overall Jacket) | .227 in |
| .177 in | |
| .158 in |
|
Table Notes |
Jacket Material is Same for All Components |
|---|
Outer Jacket 2
| Nominal Diameter |
|---|
| 0.419 in |
Electrical Characteristics
Conductor DCR
| Element | Nominal Conductor DCR | Nominal Inner Shield DCR |
|---|---|---|
| Coax(es) | 10 Ohm/1000ft | 3.5 Ohm/1000ft |
| Pair1 | 16 Ohm/1000ft | 12 Ohm/1000ft |
| Pair2 | 6.5 Ohm/1000ft |
Capacitance
| Element | Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|---|
| Coax(es) | 16.3 pF/ft | |
| Pair1 | 24 pF/ft | 47 pF/ft |
| Pair2 | 21.5 pF/ft |
Impedance
| Element | Nominal Characteristic Impedance |
|---|---|
| Coax(es) | 75 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 5 MHz | 0.65 dB/100ft |
| 10 MHz | 0.9 dB/100ft |
| 50 MHz | 1.9 dB/100ft |
| 100 MHz | 2.6 dB/100ft |
| 200 MHz | 3.6 dB/100ft |
| 400 MHz | 5 dB/100ft |
| 700 MHz | 7 dB/100ft |
| 900 MHz | 8 dB/100ft |
| 1000 MHz | 8.5 dB/100ft |
Delay
| Element | Max. Delay Skew | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|---|
| Coax(es) | 83 ns/100m | 1.22 ns/ft | 83% |
High Frequency
| Min. RL (Return Loss) [dB] |
|---|
| 24.5 dB |
Current
| Element | Max. Recommended Current [A] |
|---|---|
| Coax(es) | |
| Pair1 | 5 Amps per Conductor at 25ºC |
| Pair2 |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
Installation Temperature Range |
0°C To +75°C |
|---|---|
|
UL Temp Rating |
75°C |
|
Operating Temperature Range |
-10°C To +75°C |
|
Separation Temp Range |
0°C To +75°C |
Mechanical Characteristics
|
Bulk Cable Weight |
60 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
120 lbs |
Standards
|
NEC Articles |
Article 800 |
|---|---|
|
NEC/(UL) Compliance |
CMR |
|
CPR Euroclass |
Fca |
|
RG Type |
59 |
|
Other Specification |
Video coax: RG 59/U |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor (Not Riser or Plenum) |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
Yes |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1666 Vertical Shaft |
|---|---|
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|---|
|
Plenum Number |
601PTZ |
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
|---|
Product Notes
|
Notes |
RG59 CCTV + 1 STP22 AWG Control Grade + 2C 18 AWG CMR. Individually jacketed and color coded components, cabled around and each fused to a central binding spline. Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation. |
|---|
History
|
Update and Revision |
Revision Number: 0.367 Revision Date: 03-27-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.367 Revision Date: 03-27-2024 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 501PTZ 0001000 | Black, Gray, White | 612825155836 |
