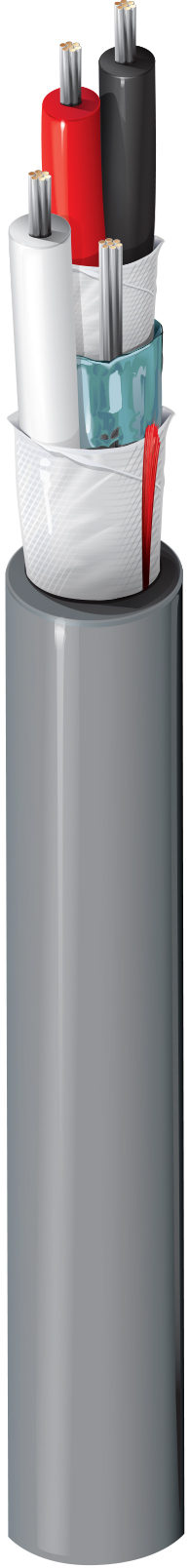

5501G1

Security & Sound, #22-1pr, #22-1c TC, Shielded Pair, CM, Water-Blocked

...
PTZ Cable, Rated-CM, 1-22 AWG tinned copper pair with PVC insulation and a Beldfoil® shield, 1-22 AWG tinned copper conductor with PVC insulation, overall water resistant tape and PVC jacket with ripcord
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG 7x30 TC - Tinned Copper
Conductor(s) 1 22 AWG 7x30 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC - Polyvinyl Chloride 0.01 in (0.25 mm) 0.051 in (1.3 mm) Black and Red
Conductor(s) PVC - Polyvinyl Chloride 0.01 in (0.25 mm) 0.051 in (1.3 mm) White
Inner Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
No Shield

Table Notes

Waterblocking tape

Waterblocking

Waterblock Tape

Outer Jacket
Separator Material Nom. Thickness Nom. Diameter Ripcord
Waterblocking Tape PVC - Polyvinyl Chloride 0.025 in (0.64 mm) 0.222 in Yes

Overall Cable Diameter (Nominal)

0.222 in

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Pair(s) 16.4 Ohm/1000ft 14.5 Ohm/1000ft (47.6 Ohm/km) 44.5 pF/ft (146 pF/m) 80.1 pF/ft (263 pF/m) 5 Amps per Conductor at 25ºC
Conductor(s) 17.9 Ohm/1000ft (58.7 Ohm/km) 5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
105°C -40°C To +105°C
Bend Radius
Stationary Min. Installation Min.
2.22 in (56.4 mm) 2.22 in

Max. Pull Tension

32.8 lbs (14.9 kg)

Bulk Cable Weight

21 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance

Flammability / Reaction to Fire

UL1685 UL Loading, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CM

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.313 Revision Date: 05-31-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
5501G1 0101000 Black 612825163237
5501G1 0081000 Gray 612825163220
