Product Number: YE00380
TELCO 1 PAIR 22AWG LSZH-C
TELCO 1 PAIR 22AWG/0.34mm² LSZH-C
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
For use in non safety critical circopperits; Indoor use only |
|---|

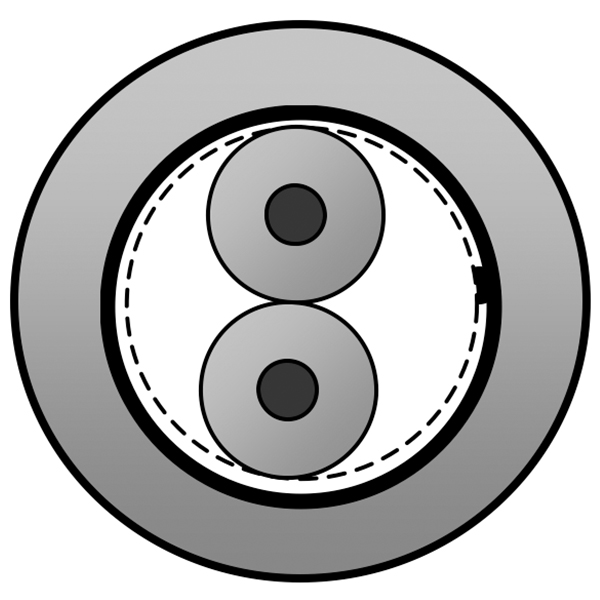

Physical Characteristics (Overall)
Conductor
| Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|
| Solid | TC - Tinned Copper | 0.63 mm | 1 |
|
Conductor Count |
2 |
|---|---|
|
Total Number of Pairs |
1 |
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PE - Polyethylene | 1.12 mm | 0.05 mm |
Color Chart
| Number | Color |
|---|---|
| Pair 1 | White & Blue |
Outer Shield
| Type | Material | Drainwire Material | Drainwire Diameter | Drainwire Position |
|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | TC - Tinned Copper | 0.5 mm | In contact with tape |
|
Table Notes |
Aluminum outside |
|---|
Outer Jacket
| Material | Nominal Diameter | Min. Wall Thickness | Ripcord |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 5.5 mm | 0.8 mm | Yes |
|
Table Notes |
Ripcord provided under sheath |
|---|
Construction and Dimensions
|
Min Elongation at Breakof Jacket |
100 % |
|---|---|
|
Min Tensile Strength of Jacket |
10 MPa |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR |
|---|
| 74.8 Ohm/km |
Capacitance
| Max. Capacitance Unbalance |
|---|
| 0.6 pF/m |
|
Min Insulation Resistance |
50 MOhm*km |
|---|
Temperature Range
|
Storage Temperature Range |
-40°C to +70°C |
|---|---|
|
Operating Temperature Range |
-15°C To +55°C |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
27.5 mm |
|---|
Standards
|
CPR Euroclass |
Eca |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Euroclass Eca |
|---|
Suitability
|
Suitability - Sunlight Resistance |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2 |
|---|---|
|
Other Flammability |
E4156 Part 2 |
History
|
Update and Revision |
Revision Number: 0.148 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.148 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| YE00380.02305 | Black | Reel | 305 m | 8719605112101 |
| YE00380.00500 | Violet | Reel | 500 m | 8719605112088 |
| YE00380.01500 | Violet | Reel | 500 m | 8719605112095 |
