Product Number: ASBM 4/LED 3-343

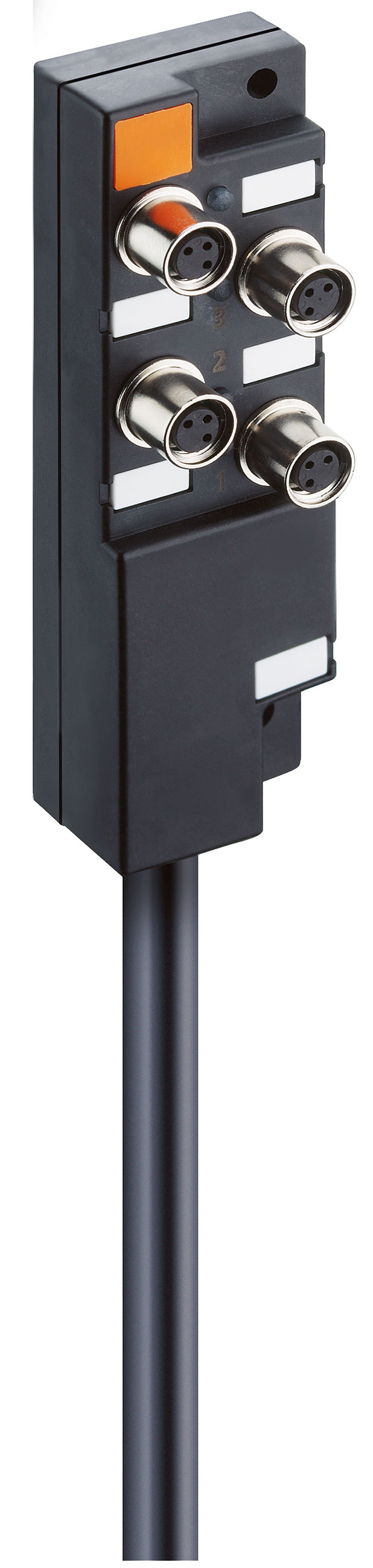

LioN-S passive, 4 ports, LED
LioN-S passive, 4 ports, LED
-
Availability:
Global
-
Global inventory:
Available
Specifications
Information
|
Product Sub Family |
LioN-S passive |
|---|---|
|
I/O Connection |
M8, 3-poles, A-coded |
|
Number of Ports |
4 |
|
I/O Wiring Configuration |
single I/O per port |
|
Control Cable Interface |
Open End |
General Data
|
Housing Material |
PBT + ASA |
|---|---|
|
Housing Color |
Black |
|
Protection Degree / IP Rating** |
IP67 |
|
Potted |
No |
|
Dimensions (W x H x D) |
30 mm x 25,5 mm x 100 mm |
|
Ambient Temperature (Operation)* |
-25 °C to 70 °C |
|
Pollution Degree |
3 acc. to EN 60664-1, VDE 0110-1 |
|
Contact Base Material |
CuSn |
|
Contact Bearer Material |
PA |
|
O-Ring Material |
FKM |
|
Fastening Torque (Fixing Screw) |
M4: 1 Nm |
|
Fastening Torque (I/O Connection) |
M8: 0.3 Nm |
Power Supply
|
Status Indicator (System Supply) |
LED green |
|---|---|
|
Actuator Supply Voltage (Nominal) |
24 V DC (SELV/PELV) |
|
Actuator Supply Voltage (Range) |
10 V DC to 30 V DC |
Digital Input Channels
|
Input Wiring |
2-, 3-, 4-wire |
|---|---|
|
Sensor Type |
PNP |
Digital Output Channels
|
Output Wiring |
2-, 3-wire |
|---|---|
|
Galvanically Isolated |
No |
Port Channels
|
Current per Connector |
max. 1,5 A |
|---|---|
|
Current per Module |
max. 1,5 A |
|
Status Indicator (Port) |
Status Indicator (Port) |
Safety & Environmental Compliance
|
CE |
Yes |
|---|---|
|
RoHS Compliant |
Yes |
|
China RoHS-Compliant |
Yes |
Approvals
|
UL |
cULus Listed, UL 508 |
|---|---|
|
UL-File |
E230848 |
|
CSA |
Yes, via UL |
Notes
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
System Power Supply Connection Note |
*do not connect / disconnect under voltage! |
|
Update and Revision |
Revision Number: 0.56 Revision Date: 03-04-2023 |
Information
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
System Power Supply Connection Note |
*do not connect / disconnect under voltage! |
|
Update and Revision |
Revision Number: 0.56 Revision Date: 03-04-2023 |
Part Numbers
| Item # | Item Description |
|---|---|
| 65349 | ASBM 4/LED 3-343/5 M |
| 65350 | ASBM 4/LED 3-343/10 M |
| 65351 | ASBM 4/LED 3-343/15 M |
