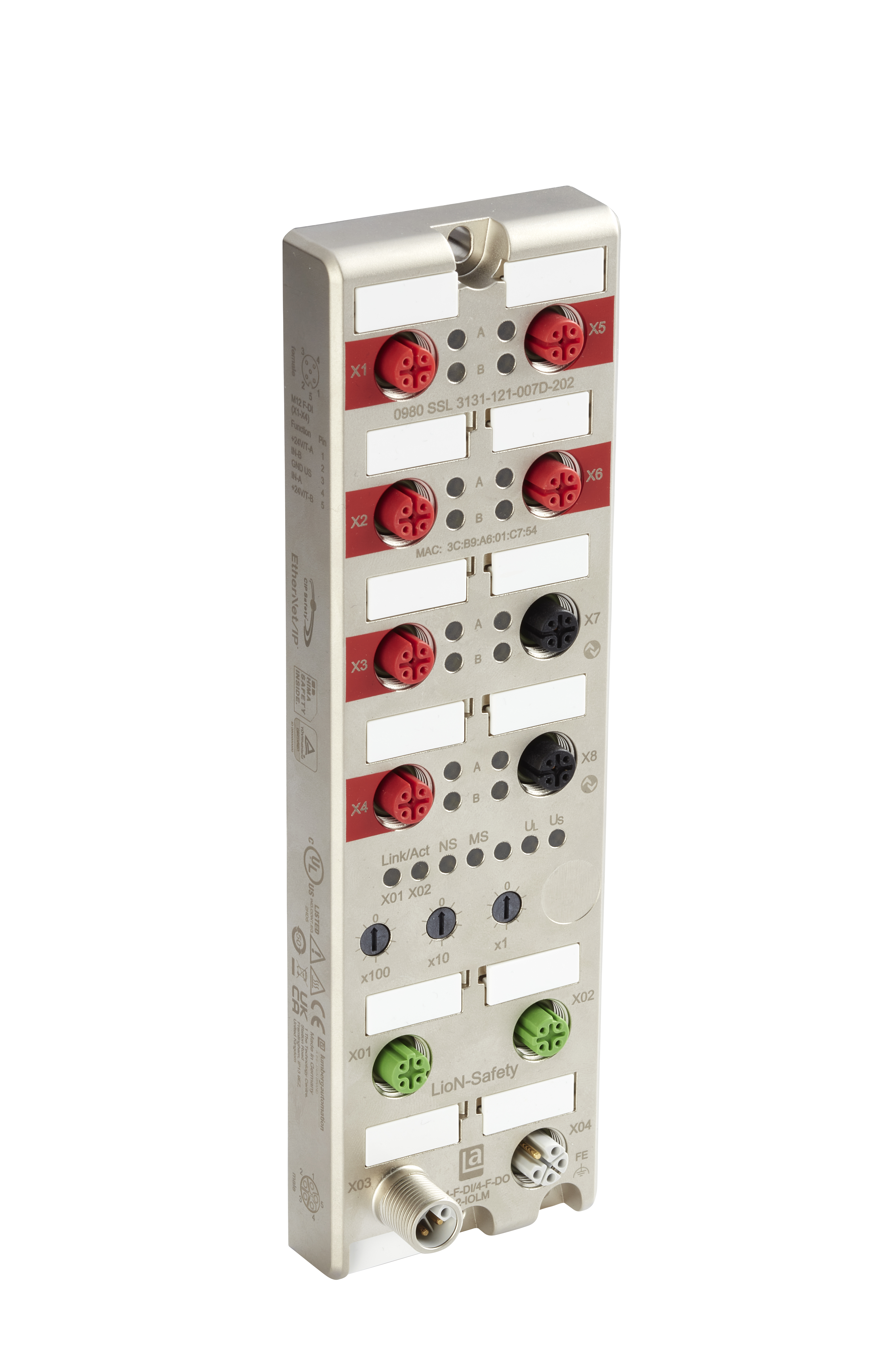

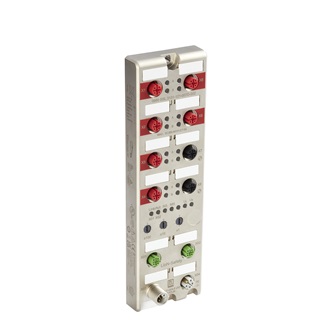

LioN-Safety 8/4-F-DI 4-F-DO 2-IOLM M12 – Ethernet/IP / CIP Safety
|
Product Family |
I/O Systems: Active - Standalone |
|---|---|
|
Product Sub Family |
LioN-Safety |
|
Item Description |
0980 SSL 3131-121-007D-202 |
|
Device Type |
FS I/O Device |
|
Protocol |
CIP Safety |
|
I/O Function |
8/4 FS DI, 4 FS DO, 2 IOLM |
|
Bus Connection |
M12 LAN, 4-poles, D-coded |
|
Power Connection (System Supply) |
M12 Power, 5-poles, L-coded |
|
I/O Connection |
M12, 5-poles, A-coded |
|
I/O Type |
Functional Safety Digital In-/Output |
|
Housing Material |
Metal, Zinc Die-cast |
|---|---|
|
Housing Plating |
Nickel, matt |
|
Housing Color |
Grey Metallic |
|
Protection Degree / IP Rating** |
IP65, IP67, IP69K |
|
Potted |
Yes |
|
Dimensions (W x H x D) |
60 mm x 31 mm x 200 mm |
|
Weight |
approx. 500 g |
|
Ambient Temperature (Operation)* |
-40 °C to 70 °C ( |
|
Ambient Temperature (Storage/Transport) |
-40 °C to 85 °C |
|
Permissible Humidity (Operation) |
5 % ... 98 % (For UL applications max. 80 %) |
|
Permissible Humidity (Storage/Transport) |
5 % ... 98 % (For UL applications max. 80 %) |
|
Air Pressure (Operation) |
70 kPa … 106 kPa (up to 3000 m above sea level) |
|
Air Pressure (Storage/Transport) |
70 kPa … 106 kPa (up to 3000 m above sea level) |
|
Flammabilty Class |
UL 94 (IEC 61010) |
|
Protection Class |
III, IEC 61140, EN 61140, VDE 0140-1 |
|
Pollution Degree |
3 acc. to EN 60664-1, VDE 0110-1 |
|
Vibration Resistance |
15 g / 5 -500 Hz |
|
Shock Resistance |
50 g / 11ms |
|
Mean Time To Failure (MTTF) |
84 years. acc. to EN ISO 13849-1 |
|
Contact Base Material |
M12, D-coded, CuSn, Gold-plated | M12 Power, L-coded, CuNi, Gold-plated |
|
Contact Bearer Material |
PA |
|
O-Ring Material |
FKM |
|
Mounting |
2 hole screw mounting. Use standard M4 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts. |
|
Fastening Torque (Fixing Screw) |
M4: 1 Nm |
|
Fastening Torque (Ground Connection (FE)) |
M4: 1 Nm |
|
Fastening Torque (Bus Connection) |
M12: 0.5 Nm |
|
Fastening Torque (Power Connection) |
M12: 0.5 Nm |
|
Fastening Torque (I/O Connection) |
M12: 0.5 Nm |
|
Included in Delivery |
Attachable Labels: 15x, Sealing Caps: 5x M12 |
|
SIL/ SIL CL (IEC 62061/ IEC 61508) |
up to 3 |
|---|---|
|
Performance Level IL (ISO 13849) |
up to e |
|
Category Cat. (ISO 13849) |
up to 4 |
|
Probability of failure per hour (PFH) |
1,43 E-9 |
|
Mission Time |
20 years |
|
Safety Reaction Time |
42ms |
|
Safety Digital Inputs |
8/4 |
|
Safety Digital Outputs |
4 |
|
Protocol (EtherNet/IP) |
EtherNet/IP |
|---|---|
|
Safety Communication |
CIP Safety |
|
Connection |
M12 LAN, 4-poles, D-coded |
|
Number of Connections |
2 |
|
Specification |
CIP V3.2x, EIP Adaption of CIP V1.2x |
|
Transmission Rate |
Fast Ethernet (10/100 Mbit/s), Full Duplex |
|
Transmission Method |
100 BASE-TX, with auto negotiation and auto crossing |
|
Cycle Time / Requested Packet Interval (RPI) |
min. 1 ms |
|
Addressing |
BootP, DHCP, Rotary Address Switches |
|
Address Switches Range |
0 to 255 dec |
|
Connection Types |
Exclusive Owner, Input Only, Listen Only |
|
CIP Msg Connection Limit |
6 |
|
CIP I/O Connection Limit |
3 |
|
Device Level Ring (DLR) |
Supported, beacon based |
|
Quick Connect (QC) |
Supported, ≤ 500 ms |
|
Supported Network Protocols (Other) |
ACD, ARP, BootP, DHCP, HTTP, IGMP, Ping, TCP/IP |
|
OPC UA |
Cyclic data read/write, Diagnosis data, Event data |
|---|---|
|
MQTT |
Cyclic data read/write, Diagnosis data, Event data |
|
REST API |
Cyclic data read/write, Diagnosis data, Event data |
|
CoAP |
Cyclic data read/write, Diagnosis data, Event data |
|
Protocol |
IO-Link Master |
|---|---|
|
Connection |
M12 5-poles, A-coded |
|
Number of Connections |
2 |
|
Specification |
v1.1.3 ready, IEC 61131-9 |
|
IO-Link Class |
Class A |
|
Transmission Rate / COM Mode |
COM1, COM2, COM3 |
|
Cycle Time / Update Rate |
400µs |
|
Parameter Storage |
supported |
|
Connection Module Supply Voltage |
M12 Power, 5-poles, L-coded |
|---|---|
|
Number of Connections |
2 |
|
Current Carrying Capacity of Connector |
max. 16 A |
|
Module Supply Voltage (Nominal) |
24 V DC (SELV/PELV) |
|
Module Supply Voltage (Range) |
18 V DC to 30 V DC |
|
Current Consumption (typ.) |
typ. 180mA (at 24 V DC) |
|
Reverse Polarity Protection |
Yes |
|
Status Indicator (System Supply) |
LED green |
|
Diagnostic Indicator |
LED red |
|
Connection Sensor Supply Voltage |
M12 Power, 5-poles, L-coded |
|
Current Carrying Capacity of Connector |
max. 16 A |
|
Sensor Supply Voltage (Nominal) |
24 V DC (SELV/PELV) |
|
Sensor Supply Voltage (Range) |
18 V DC to 30 V DC |
|
Reverse Polarity Protection |
Yes |
|
Status Indicator (Sensor Supply) |
LED green |
|
Diagnostic Indicator |
LED red |
|
Current Carrying Capacity of Connector |
max. 16 A |
|
Actuator Supply Voltage (Nominal) |
24 V DC (SELV/PELV) |
|
Actuator Supply Voltage (Range) |
18 V DC to 30 V DC |
|
Reverse Polarity Protection |
Yes |
|
Status Indicator (Actuator Supply) |
LED green |
|
Diagnostic Indicator |
LED red |
|
Number of IO-Link Master Channels |
max. 2, configurable |
|---|---|
|
Connection |
M12, 5-poles, A-coded |
|
IO-Link Class A Ports |
2x, X7 and X8 |
|
IO-Link Specification |
V1.1.3 |
|
Parameter Storage |
Supported |
|
Supported COM Modes |
4.8 kBaud (COM 1), 38.4 kBaud (COM 2), 230.4 kBaud (COM 3) |
|
Cycle Time / Update Rate |
min. 1 ms for all channels at 32 Byte IN / OUT |
|
Nominal Voltage |
24 V DC via US (system power supply) |
|
Nominal Current C/Q (Pin 4) |
500mA |
|
Nominal Current 1L+ (Pin 1) |
4A |
|
Perm. Conductor Length to Device |
≤ 20 m |
|
Status Indicator (IOL) |
LED green per channel |
|
Diagnostic Indicator |
LED red per port |
|
Number of Digital Input Channels |
up to 8 |
|---|---|
|
Connection |
M12, 5-poles, A-coded |
|
Number of Ports |
4x, X1 to X4 |
|
Channel Type |
Type 3 acc. to IEC 61131-2 |
|
Input Wiring |
2-, 3-, 4-wire |
|
Nominal Voltage |
24 V DC via US (module power supply) |
|
Nominal Current |
typ. 3 mA |
|
Sensor Current Supply |
max. 1500 mA per port |
|
Sensor Type |
PNP |
|
Input Voltage Range "0" signal |
-3 V DC …+5 V DC |
|
Input Voltage Range "1" signal |
11 V DC … 30 V DC |
|
Input Filter Time |
configurable |
|
Protective Circuit |
Electronicaly: Overload protection, short-circuit protection |
|
Diagnostic Indicator |
LED white or yellow per channel |
|
Number of Digital Output Channels |
4 |
|---|---|
|
Connection |
M12, 5-poles, A-coded |
|
Number of Ports |
4x, X5 and X6 |
|
Channel Type |
p-switching |
|
Output Wiring |
2-wire |
|
Nominal Voltage |
24 V DC via UL |
|
Output Current per Channel |
max. 2 A |
|
Output Current per Module |
max. 8 A |
|
Galvanically Isolated |
Yes |
|
Protective Circuit |
Electronicaly: Overload protection, short-circuit protection |
|
Overload Behavior |
Auto off and on switching / Manual restart |
|
Status Indicator (Outputs) |
LED white or yellow per channel |
|
Diagnostic Idicator |
LED red per channel |
|
US (System Supply Voltage) / FE |
32V DC (clamp voltage) |
|---|---|
|
US / UL (Actuator Supply Voltage) |
500 V DC |
|
UL / FE |
32V DC (clamp voltage) |
|
Bus connection / FE |
2000 V DC |
|
EMC Directive |
2014/30/EU |
|---|---|
|
EN 61000-4-2 Electrostatic Discharge (ESD) |
Criterion B; 4 kV contact discharge, 8 kV air discharge |
|
EN 61000-4-3 Electromagnetic Field |
Criterion A; Field intensity: 10 V/m |
|
EN 61000-4-4 Fast Transients (Burst) |
Criterion B, 2 kV |
|
EN 61000-4-5 Surge Voltage |
Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m |
|
EN 61000-4-6 Conducted immunity |
Criterion A; Test voltage 10 V |
|
EN 55022 Radio Interference Properties |
Class A |
|
EN 55032 Radio Interference Properties |
Class A |
|
CE |
Yes |
|---|---|
|
RoHS Compliant |
Yes |
|
China RoHS-Compliant |
Yes |
|
FS-Certification |
TÜV (Rheinland) IEC 61508, ISO 13849 |
|---|---|
|
UL |
cULus Listed, UL 61010-1 |
|
CSA |
Yes, via UL |
|
ODVA |
Yes |
|
IO-Link |
Yes |
|
Protection Degree / IP Rating Note |
*only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
System Power Supply Connection Note |
*do not connect / disconnect under voltage! |
