Product Number: BTL12-08T1-02TX-L

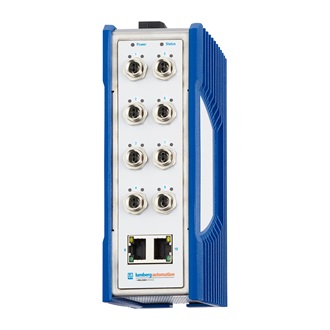

BEETLE Single Pair Ethernet Lite Managed Switch
Lite Managed SPE Switch with 8x M8 SPE-ports and 10Base-T1L and 2x RJ45 Fast Ethernet.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product description
|
Name |
BTL-1-L-5-1-6-W2-08T1-2-02TX-S-Z9-HH-HH |
|---|---|
|
Port type and quantity |
2 x 10/100BASE-TX 8 x 10BASE-T1L |
Displays
|
LEDs |
Power, Port State, Device Status, PoDL |
|---|
More Interfaces
|
Power supply/signaling contact |
1 x plug-in terminal block, 6-pin |
|---|
Network size - length of cable
|
Twisted pair (TP) |
0-100 m |
|---|---|
|
Single Pair (SP) |
0-1000 m |
Power requirements
|
Operating Voltage |
24 VDC (18 - 32 VDC) |
|---|---|
|
Power consumption |
1.4 W (without PoDL) |
Software
|
Switching |
VLAN (802.1Q), QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, CoS Queue Management, Queue-Shaping / Max. Queue Bandwidth, Unknown Multicast Filtering, Egress Interface Shaping, Ingress Storm Protection |
|---|---|
|
Management |
LLDP (802.1AB), Password change on first login, HTTP, Responsive GUI |
|
Diagnostics |
LEDs, Device Status Indication, Syslog, Link Speed and Duplex Monitoring, SPE cable diagnosis |
|
Configuration |
Web-based Management, OPC-UA |
|
Security |
Local User Management, MAC based ACL |
|
Miscellaneous |
PoDL (IEEE 802.3cg) |
|
Operating temperature |
-10-+60 °C |
Ambient conditions
|
Storage/transport temperature |
-40°C to + 70 °C |
|---|---|
|
Relative humidity (non-condensing) |
1-95 % |
|
Dimensions (WxHxD) |
61 x 163.6 x 114.7 mm |
|
Weight |
1016 g |
|
Mounting |
DIN Rail |
|
Protection class |
IP40 |
Scope of delivery and accessories
|
Accessories to Order Separately |
DataTuff SPE cables, SPE connectors, RPS power supply |
|---|---|
|
Scope of delivery |
Device, Terminal Block, Start-up Instructions, Saftey Instructions |
History
|
Update and Revision |
Revision Number: 0.31 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.31 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Type |
|---|---|
| 935800001 | BTL12-08T1-02TX-L |
