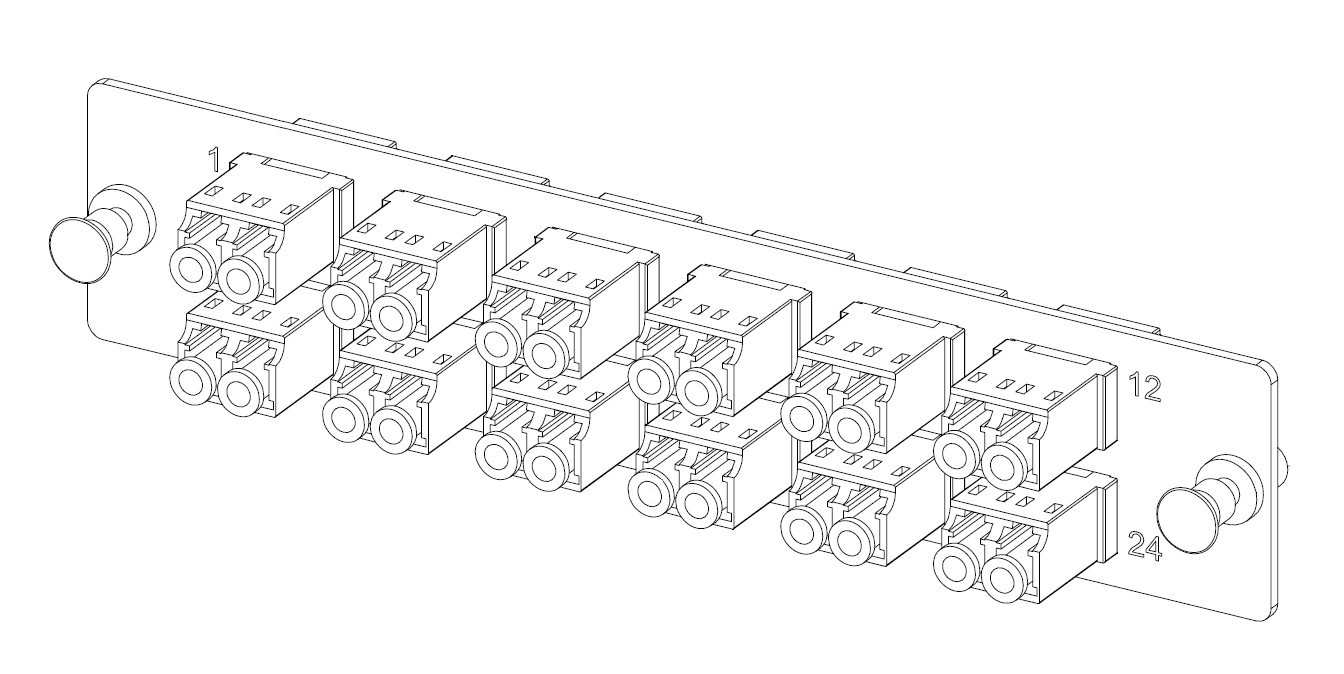

Product Number: AP Series FX Adapter Strip LC Duplex
AP Series FX Adapter Strip LC Duplex
AP Series FX Adapter Strip LC Duplex
-
Availability:
Asia Pacific
-
Global inventory:
Available
Specifications
Product Overview
|
Environmental Space |
Indoor |
|---|---|
|
Suitable Applications |
FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room |
Construction
|
Height |
32 mm |
|---|---|
|
Length |
155 mm |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
|
Front Connection |
Flush |
|---|---|
|
Termination Style |
Front |
Temperature Range
|
Operating Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
Product Material
Materials
| Description | Material |
|---|---|
| Strip | AL5025 |
| Connector Body | Plastic |
| Adapter Sleeve | Zirconia-Ceramic |
Standards
|
ISO/IEC Compliance |
ISO 2768-1 |
|---|
Related Part Numbers
|
Related Parts |
FiberExpress Rack Mount Patch Panel, FiberExpress Wall Mount Patch Panel |
|---|
Product Notes
|
Notes |
Adapter color is Blue for SM, Green for SM/APC; Beige for MM normal, Aqua for MM OM3 and Violet for MM OM4. |
|---|
History
|
Update and Revision |
Revision Number: 0.28 Revision Date: 06-04-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.28 Revision Date: 06-04-2024 |
|---|
Part Numbers
| Item # | Color | Port Count | Adapter Color |
|---|---|---|---|
| AP101731 | Black | 6 Port | Blue |
| AP101731APC | Black | 6 Port | Green |
| AP101743 | Black | 12 Port | Blue |
| AP101743APC | Black | 12 Port | Green |
