Product Number: FX UHD Patch Panel Housing 1U

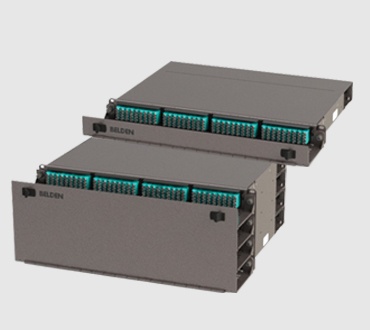

FX Ultra HD Patch Panel Housing 1U
FX Ultra HD 1U Patch Panel Housing, 4 Slots, Empty. Available in Titanium or Black finish.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Environmental Space |
Indoor |
|---|---|
|
Suitable Applications |
FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
|
Weight |
3.629 kg |
|---|---|
|
Height |
1.75 in |
|
Width |
19 in |
|
Depth |
16.75 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
|
Front Connection |
Static FX UHD / 1 inch Pullout FXU |
|---|
Temperature Range
|
Operating Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
Product Material
Materials
| Description | Material |
|---|---|
| Panel | Steel/Aluminum |
| Door | Aluminum |
| Patch Cord Tray | Steel |
| Cable Tray | Steel |
Standards
|
TIA/EIA Compliance |
EIA/ECA 310 |
|---|---|
|
MII Order #39 (China RoHS) |
EUP 50 |
Related Part Numbers
|
Included Parts |
Screws (12-24); Screws (10-32); Screws (8-32); Tie Wraps; Kurly locks; Velcro Straps; Identification Labels |
|---|
Product Notes
|
Packaging |
Individually packaged in a cardboard box |
|---|---|
|
Notes |
For more information, please refer to our web site at http://www.belden.com. Installation Guide: PX105539. |
History
|
Update and Revision |
Revision Number: 0.218 Revision Date: 02-12-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.218 Revision Date: 02-12-2025 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| AX105563 | Black | 611589153089 |
| AX104681 | Titanium | 611589082327 |
