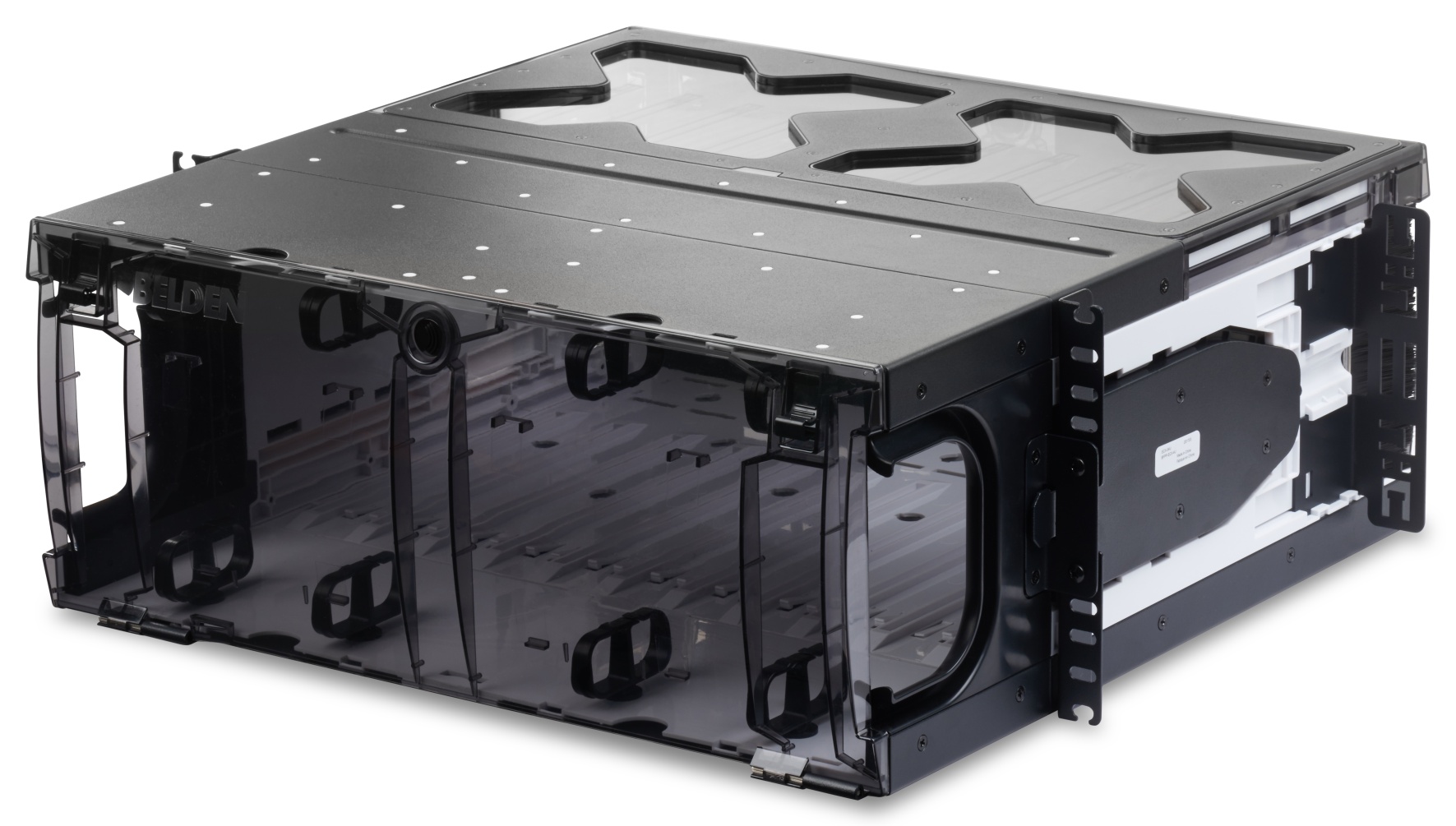

FX ECX 4U Patch Panel Housing

FX ECX 4U Patch Panel Housing 19" width

...
FX ECX 4U Patch Panel Housing. Holds 12 ECX adapter frames or cassettes.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Construction

Weight

11.980 lbs

Height

6.860 in

Width

19.000 in

Depth

17.570 in
Physical Specifications

Max Capacity

Holds 12 ECX adapter frames or cassettes

Mechanical Characteristics
Mechanical Tests
Description
Temperature Range

Operating Temperature Range

-10°C To +60°C

Storage Temperature Range

-40°C To +70°C

Product Material
Materials
Description Material
Housing Steel/Aluminum
Housing PC/ABS
Housing Polycarbonate
Standards

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Included Parts

Management clips (16X); Internal strain relief (2X); Intermediate strain relief (2X); Label card (2X); Blank frames (12X); Door lock opening cap (2X). Hardware kit contains: External strain relief (2X); cable tie 4in (12X); cable tie 7 1/2 in (4X); Velcro cable tie 8"in (8X); #12-24 machine screw Phillips (4X); #10-32 machine screw Phillips (4X)

Product Notes

Packaging

Individually packaged in a cardboard box.

Notes

For more information, please refer to our web site at http://www.belden.com. Installation Guide:PX106481.

History

Update and Revision

Revision Number: 0.202 Revision Date: 01-03-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
ECX-04U Black 611589218825
