Product Number: DCX-ZUTR-L

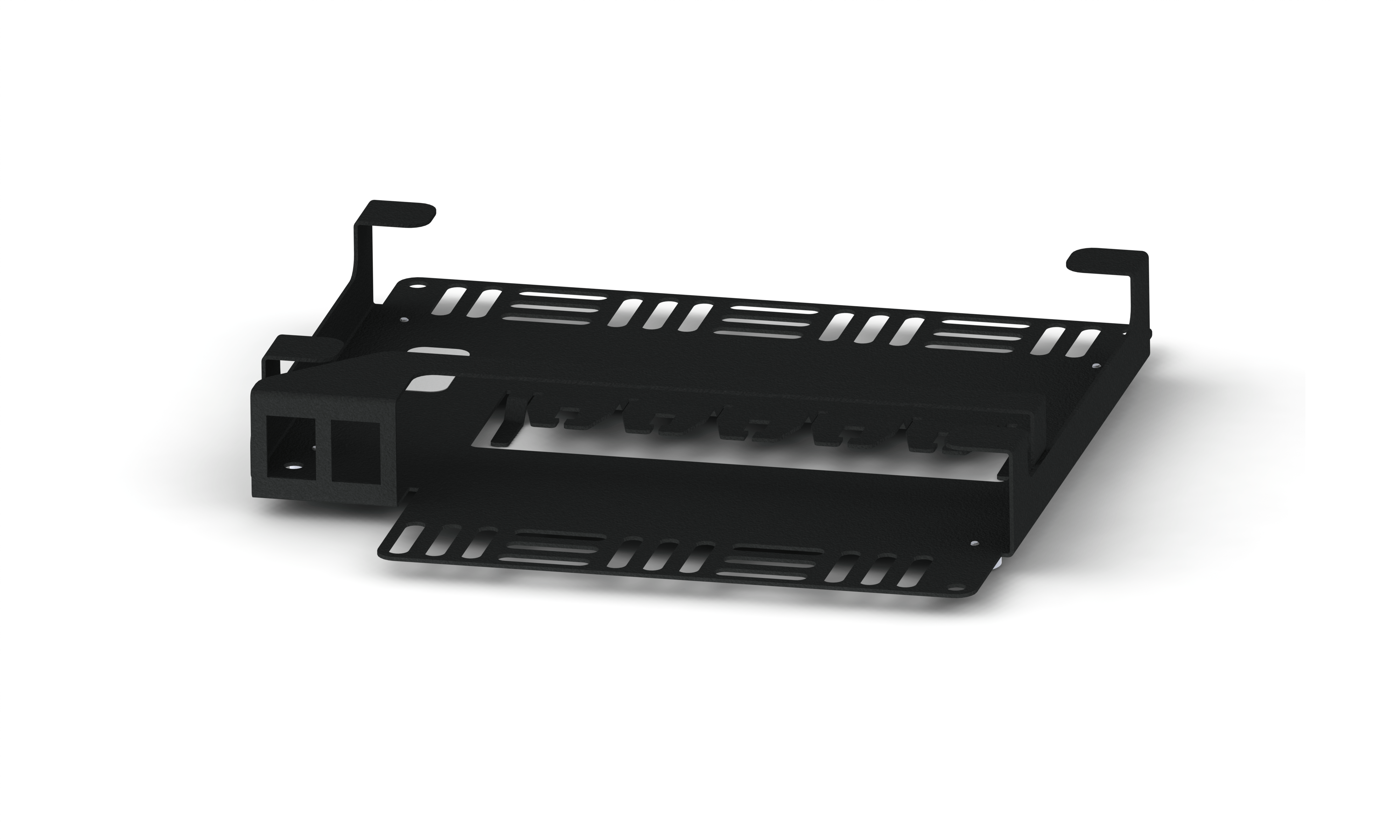

DCX 0U Magnetic Tray, Large
DCX Zero U Tray, Large, Holds 6 Cutouts (2 Base-12 Cassettes) with Magnets
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
|---|
Construction
|
Weight |
1.250 lbs |
|---|---|
|
Height |
1.530 in |
|
Width |
9.420 in |
|
Depth |
9.530 in |
Physical Specifications
|
Max Capacity |
2 Cassettes (Base-12) and 2 Copper Connectors |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
|
Operating Temperature Range |
-10°C to +60°C |
|---|---|
|
Storage Temperature Range |
-40°C to +70°C |
Product Material
Materials
| Description | Material |
|---|---|
| Panel | Steel |
Standards
|
TIA/EIA Compliance |
EIA/ECA 310 |
|---|---|
|
MII Order #39 (China RoHS) |
EUP 50 |
Related Part Numbers
|
Included Parts |
(2x) Velcro Cable Ties; (4x) Screws |
|---|---|
|
Related Parts |
FX DCX Cassettes/Adapter Frames |
Product Notes
|
Packaging |
Individually packaged in a cardboard box. |
|---|---|
|
Notes |
For more information, please refer to the Quick Start Guide PX107082 on our web site at http://www.belden.com |
History
|
Update and Revision |
Revision Number: 0.94 Revision Date: 12-12-2022 |
|---|
Information
|
Update and Revision |
Revision Number: 0.94 Revision Date: 12-12-2022 |
|---|
Part Numbers
| Item # | Color |
|---|---|
| DCX-ZUTR-L | Black |
