Product Number: CAT 6 Angled PP 48 1U
AX105362-CAT 6 Angled Patch Panel, 48 Port, 1U
Angled Patch Panel, 48-port, 1U with CAT6+ RJ45 Modular Jack
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
IBDN System CAT6+, TIA Category 6+ |
|---|
Physical Characteristics (Overall)
|
Height |
1.75 in |
|---|---|
|
Width |
19.000 in |
|
Depth |
10.190 in |
|
Port Count |
48 Port |
|
Front Connection |
Angled |
|
Packaging |
Individually packaged in a cardboard box. |
|
Weight |
2.600 lbs |
Connectors
Materials
| Description | Material |
|---|---|
| Panel | Steel |
Construction and Dimensions
|
Max Capacity |
48 connectors |
|---|
Temperature Range
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
Standards
|
Data Category |
Category 6 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
Bi-national Standard Listed |
|---|
Related Part Numbers
|
Related Parts |
Compatible with CAT6+, Patch Cord and CAT6+ Pre-Terminated Cable Assemblies |
|---|
Product Notes
|
Included Parts |

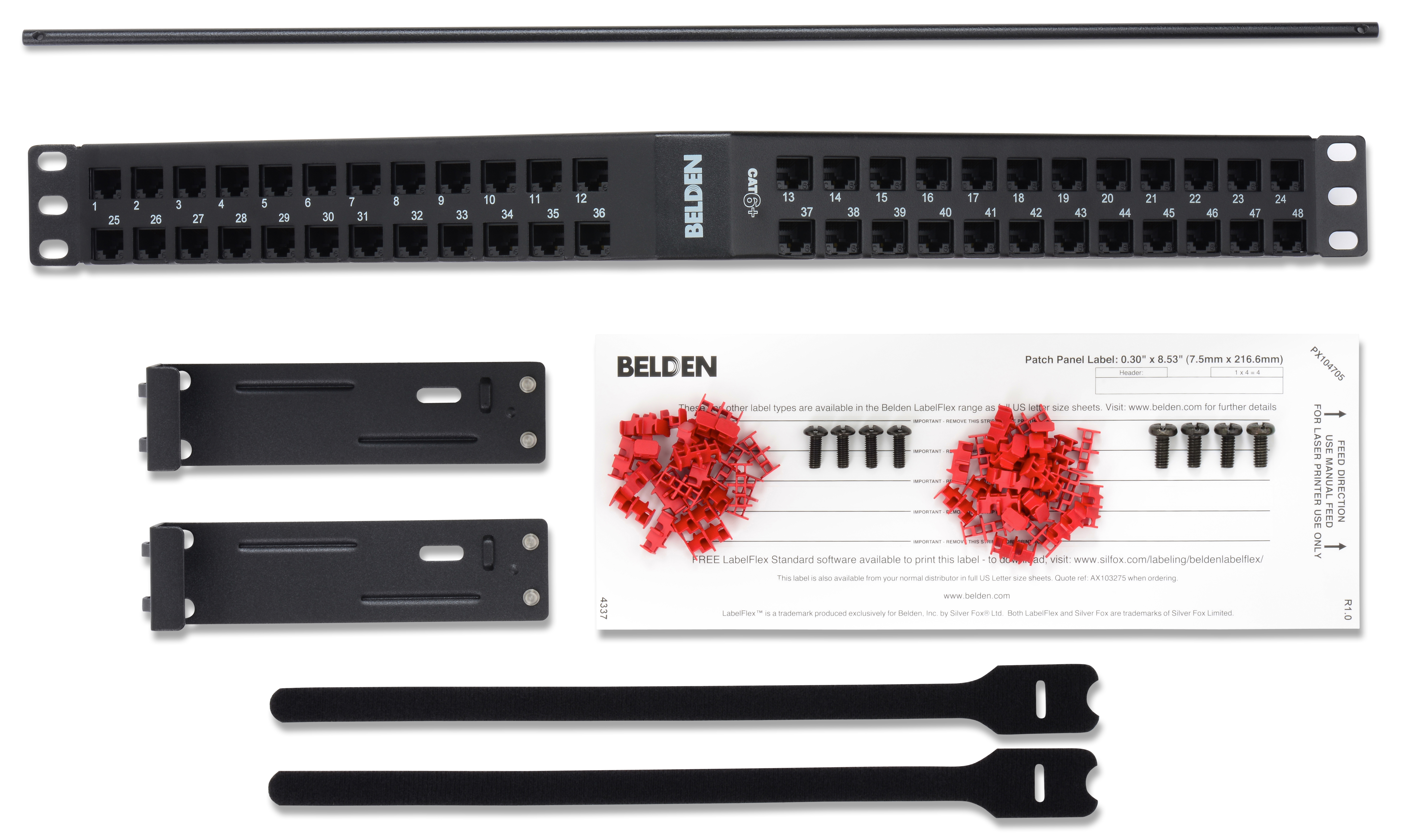

4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 Rear Cable Management Bracket; 1 Bar. |
|---|---|
|
Notes |
Refer to AX102283 for the Specifications of the Modular Jacks |
History
|
Update and Revision |
Revision Number: 0.262 Revision Date: 11-19-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.262 Revision Date: 11-19-2024 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | UPC |
|---|---|---|---|
| AX105362 | Black | 1U | 611589007498 |
