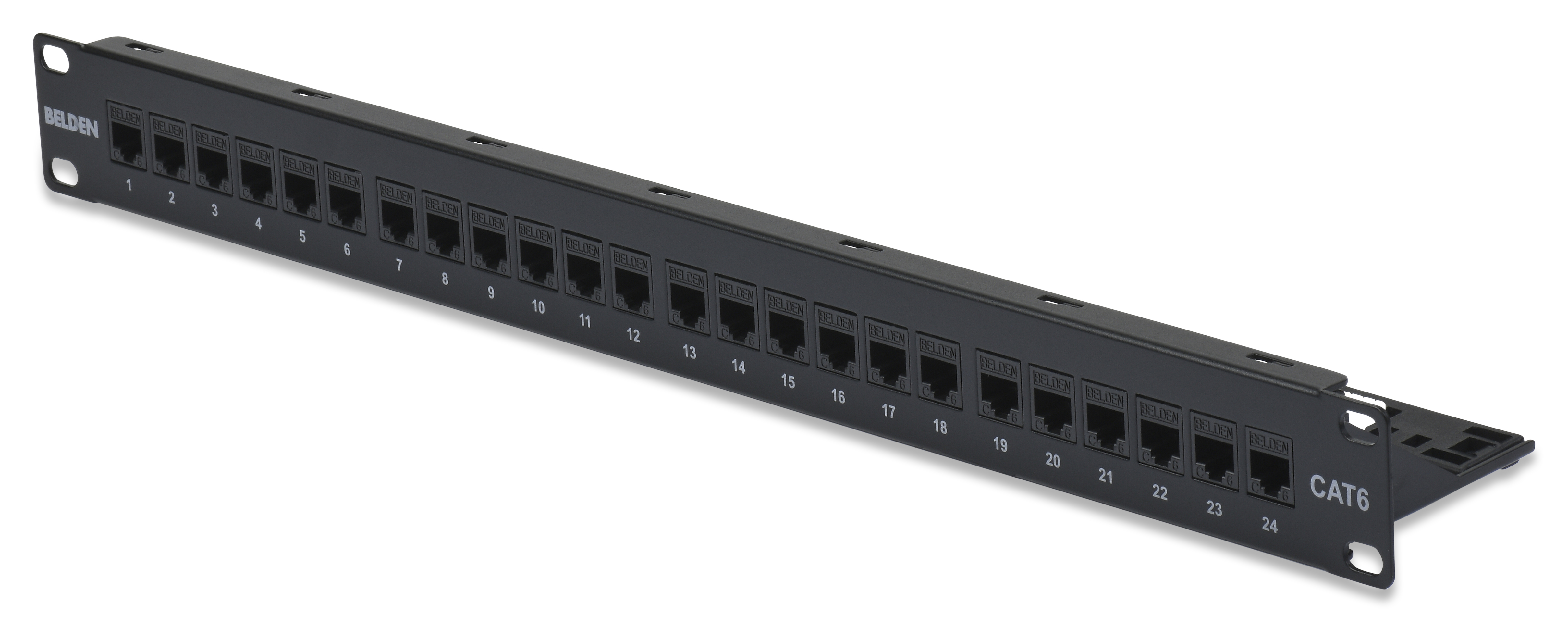

Product Number: CAT6 DataConnect Panel 24P
DC5PPF1U24-CAT6 DataConnect Patch Panel, UTP, 24 Port
CAT6 DataConnect Patch Panel, UTP, Flat, 24-Port, 1U (Preloaded)
-
Availability:
Americas
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Ethernet 10/ 100/ 1000BASE-T, 2.5G/ 5GBASE-T |
|---|
Physical Characteristics (Overall)
|
Height |
1.75 in |
|---|---|
|
Width |
19.000 in |
|
Depth |
2.960 in |
|
Port Count |
24 Port |
|
Front Connection |
Flush |
|
Packaging |
Individually packaged in a cardboard box. |
|
Weight |
2.008 lbs |
Connectors
Materials
| Description | Material | Color |
|---|---|---|
| Panel | Steel | Black |
| Management Bar | Steel/Plastic | Black |
Construction and Dimensions
|
Max Capacity |
24 connectors (preloaded) |
|---|
Electrical Characteristics
|
Dielectric Strength |
1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Termination Resistance |
2.5 mOhm |
Temperature Range
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
Mechanical Characteristics
|
Footprint/Type |
DataConnect |
|---|---|
|
Tool Compatibility |
Belden 110 Connecting Tool (AX100749), MediaFlex Termination Station (AX101852), Belden Rapid TerminationTool (AX105566) |
|
Plug /Jack Compatibility |
RJ45 |
|
Cable/Connector Retention |
11.25 lbs |
|
Connector/Hardware Retention |
20 lbs |
|
Plug/Connector Retention |
11.250 lbs |
Standards
|
UL Rating |
UL94V-0 |
|---|---|
|
ISO/IEC Compliance |
IEC 60603-7 |
|
Data Category |
Category 6 |
|
TIA/EIA Compliance |
ANSI/TIA 1096-A (formerly FCC Part 68-F) |
|
IEEE Compliance |
IEEE 802.3at type 1 and 2 (PoE) up to 30W, IEEE 802.3bt type 3 and 4 (PoE) up to 100W, CISCO (UPOE) up to 60W, Power over HDBaseTTM (POH) up to 100W |
|
Other Standards |
ANSI/TIA 1096-A (formerly FCC Part 68-F) |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
c(UL)us Listed, UL 1863, UL File E77103 |
|---|
Related Part Numbers
|
Related Parts |
DataConnect CAT5 Modular Jacks, DataConnect CAT5 Modular cord |
|---|
Product Notes
|
Included Parts |
4 Screws (12x24); 1 Printable Label Half-Sheet; 2 Velcro Straps; 1 Rear Cable Support Bar, 1 Installation Guide, 24 Protective Caps |
|---|---|
|
Notes |
For proper installation refer to Installation Guide PX106898 included with the product |
History
|
Update and Revision |
Revision Number: 0.39 Revision Date: 11-19-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.39 Revision Date: 11-19-2024 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | UPC |
|---|---|---|---|
| DC6PPF1U24BK | Black | 1U | 611589249218 |
