Product Number: KEYCONNECT MODULAR FURNITURE

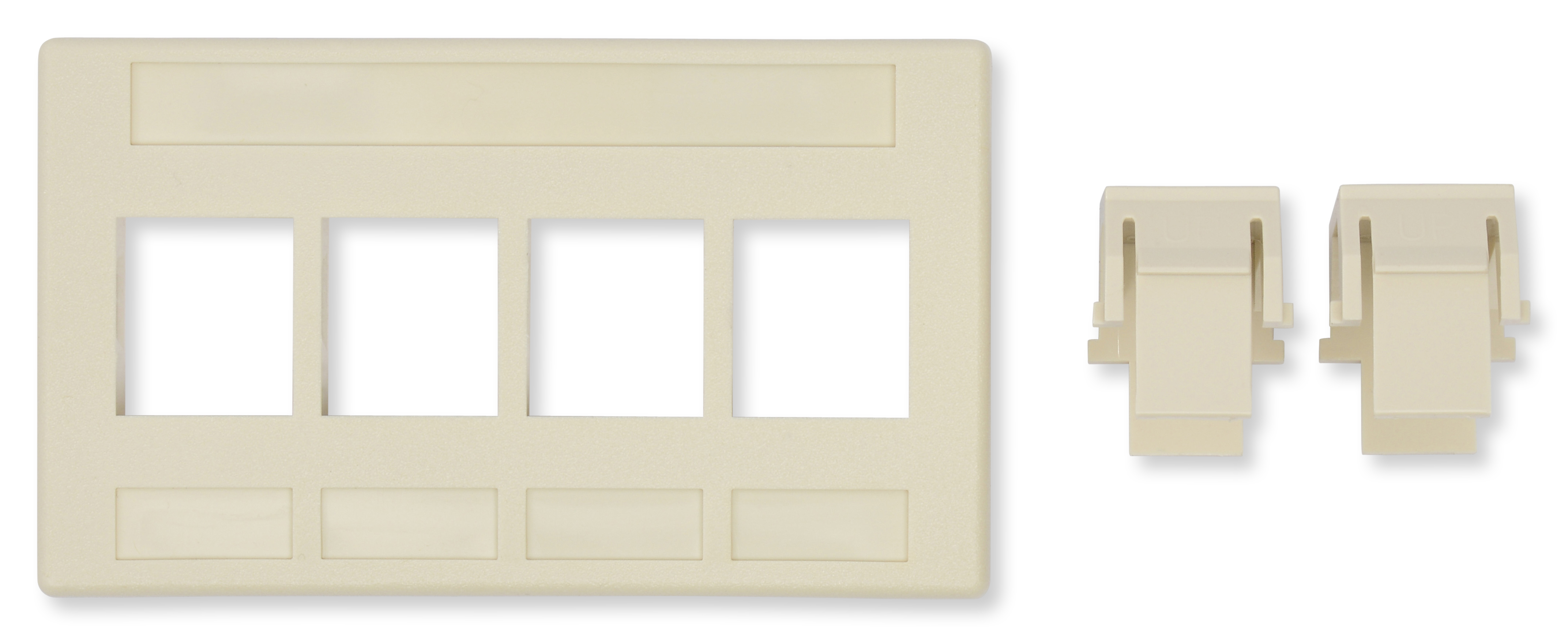

KeyConnect Modular Furniture Adapter, 3 or 4-Port
KeyConnect Modular Furniture Adapter, Compatible with Keyconnect UTP and Multimedia Modules
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400 and 1200. |
|---|
Physical Characteristics (Overall)
|
Height |
1.84 m |
|---|---|
|
Width |
3.12 |
|
Depth |
0.19 |
|
Front Connection |
Flush |
|
Packaging |
Individually packaged in a plastic bag |
Connectors
Materials
| Material |
|---|
| Plastic - UL94V-0 |
Temperature Range
|
Installation Temperature Range |
-10 to 60°C |
|---|---|
|
Storage Temperature Range |
-10 to 75°C |
|
Operating Temperature Range |
-10 to 60°C |
Mechanical Characteristics
|
Footprint/Type |
KeyConnect |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
Bi-national Standard Listed |
|---|
Related Part Numbers
|
Related Parts |
Compatible with 10GX, CAT6+ and CAT5E KeyConnect UTP and Multimedia Modules |
|---|
Product Notes
|
Included Parts |
installation sheet, blank |
|---|---|
|
Notes |
For proper installation refer to installation guide included with the product or visit our web site at http://www.belden.com. Wall opening: Minimum 2.67 X 1.35 in., Maximum 2.75 X 1.38 in. Wall thickness: Maximum 0.075 in. |
History
|
Update and Revision |
Revision Number: 0.167 Revision Date: 03-04-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.167 Revision Date: 03-04-2023 |
|---|
Part Numbers
| Item # | Color | Port Count |
|---|---|---|
| AX103925 | Almond | 3 Port |
| AX103926 | Almond | 4 Port |
| AX102292 | Black | 3 Port |
| AX102901 | Black | 4 Port |
