Product Number: KEYCONNECT STAINLESS DG FP

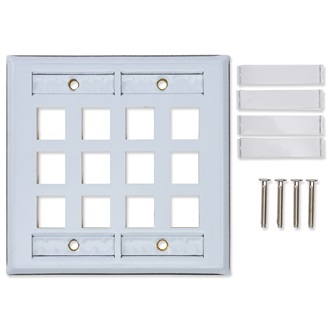

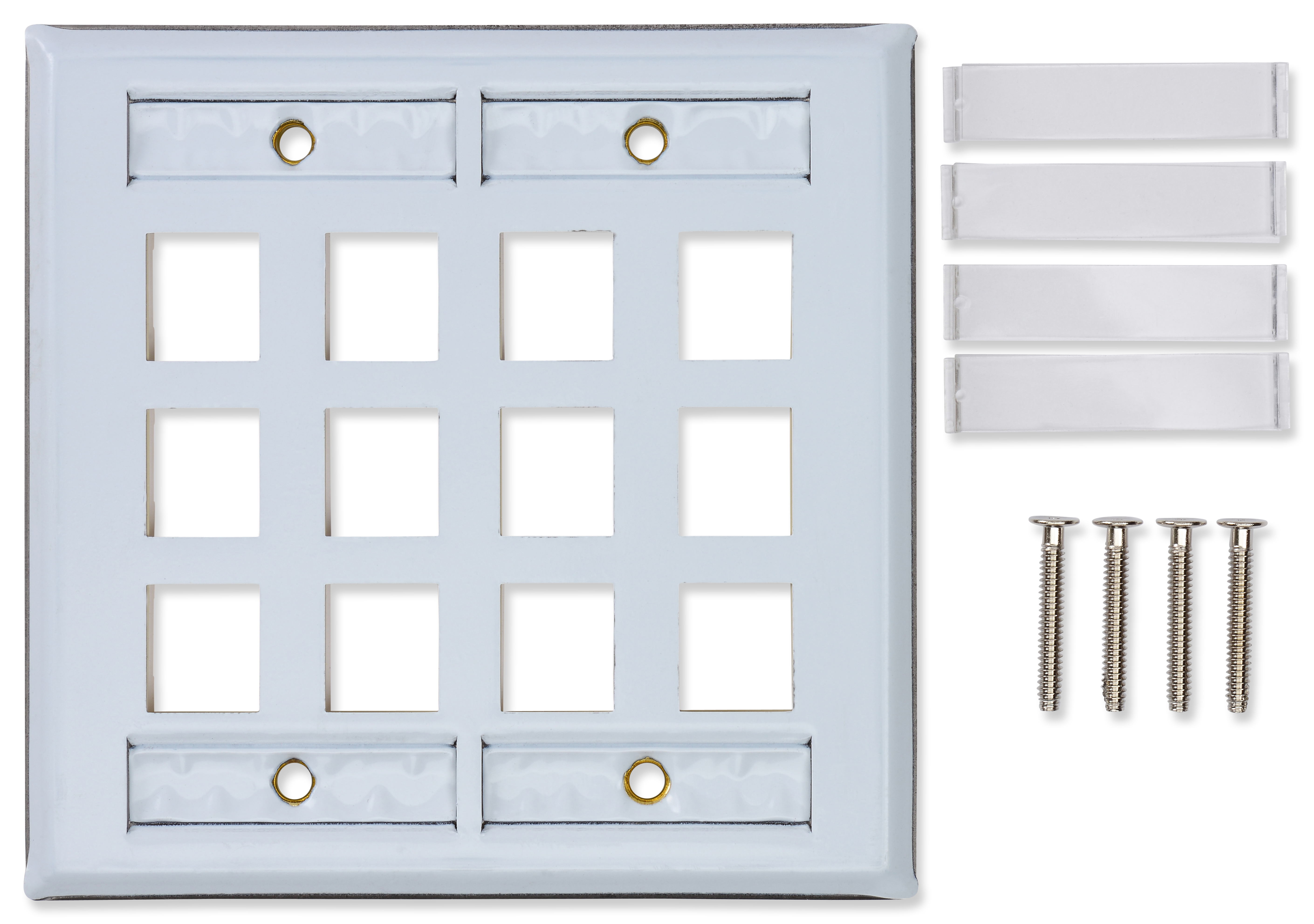

KeyConnect Stainless Steel, Double-Gang Faceplate
KeyConnect Stainless Steel, Double-Gang Faceplate, Compatible with KeyConnect style modular jacks
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400, 1200, fiber and coax |
|---|
Physical Characteristics (Overall)
|
Height |
4.5 m |
|---|---|
|
Width |
4.59 |
|
Depth |
0.26 |
|
Front Connection |
Flush |
|
Packaging |
Individually packaged in a plastic bag. |
|
Weight |
0.06 kg |
Connectors
Materials
| Material |
|---|
| Stainless Steel |
Temperature Range
|
Installation Temperature Range |
-10 to 60°C |
|---|---|
|
Storage Temperature Range |
-40 to 70°C |
|
Operating Temperature Range |
-10 to 60°C |
Mechanical Characteristics
|
Footprint/Type |
KeyConnect |
|---|---|
|
Connector/Hardware Retention |
20 lbs |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
Bi-national Standard Listed |
|---|
Related Part Numbers
|
Related Parts |
Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks and KeyConnect Multimedia Modules |
|---|
Product Notes
|
Included Parts |
6-32 screw |
|---|---|
|
Notes |
For proper installation refer to Installation Guide PX103826. Visit our web site at http://www.belden.com |
History
|
Update and Revision |
Revision Number: 0.169 Revision Date: 03-04-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.169 Revision Date: 03-04-2023 |
|---|
Part Numbers
| Item # | Color | Port Count |
|---|---|---|
| AX102011 | Stainless Steel | 4 Port |
| AX102012 | Stainless Steel | 6 Port |
| AX102013 | Stainless Steel | 12 Port |
| AX104234 | Stainless Steel | 12 Port |
