Product Number: MEDIAFLEX SVGA FEED THROUGH
SVGA Feed Through for MediaFlex

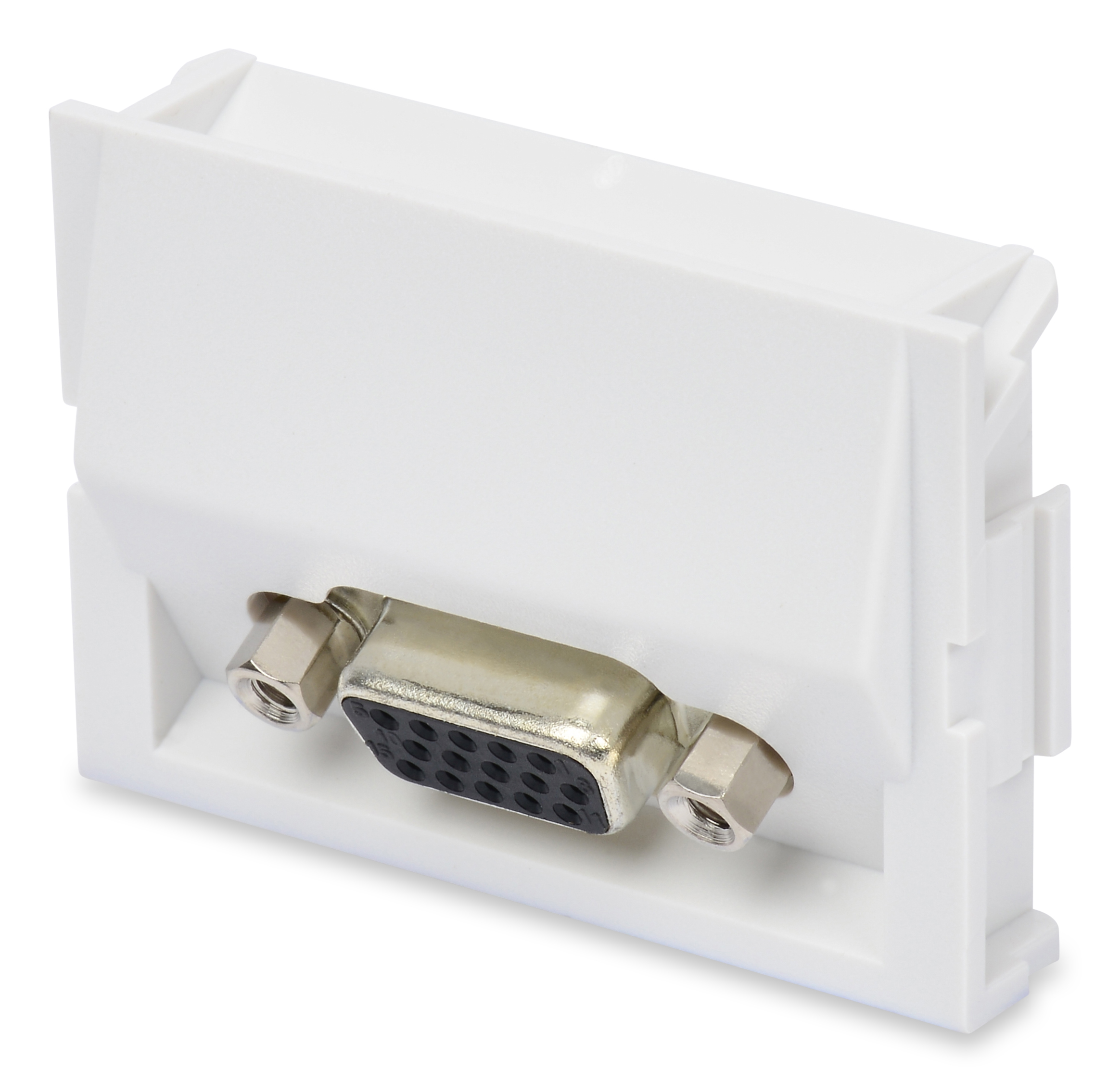

MediaFlex SVGA Feed Through, available in several colors.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Multimedia |
|---|
Physical Characteristics (Overall)
|
Height |
1.39 m |
|---|---|
|
Width |
2.05 |
|
Depth |
0.75 |
|
Packaging |
Individually packaged in a plastic bag. |
|
Weight |
0.05 kg |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Front Connection | Metal | SVGA FeedThhrough |
| Rear Connection | Metal | SVGA FeedThhrough |
| Insert | Plastic - UL94V-0 |
Temperature Range
|
Installation Temperature Range |
-10 to 60°C |
|---|---|
|
Storage Temperature Range |
-40 to 70°C |
|
Operating Temperature Range |
-10 to 60°C |
Mechanical Characteristics
|
Footprint/Type |
Mediaflex |
|---|---|
|
Tool Compatibility |
Release Tool (AX101185) |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
ACA, Bi-national Standard Listed |
|---|
Related Part Numbers
|
Related Parts |
Compatible with MediaFlex Faceplates |
|---|
Product Notes
|
Notes |
For proper installation refer to Installation Guide PX102063 available on our web site at http://www.belden.com |
|---|
History
|
Update and Revision |
Revision Number: 0.72 Revision Date: 03-04-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.72 Revision Date: 03-04-2023 |
|---|
Part Numbers
| Item # | Color |
|---|---|
| AX102335 | Almond |
| AX102337 | Black |
| AX102336 | Electric White |
| AX102581 | Ivory |
