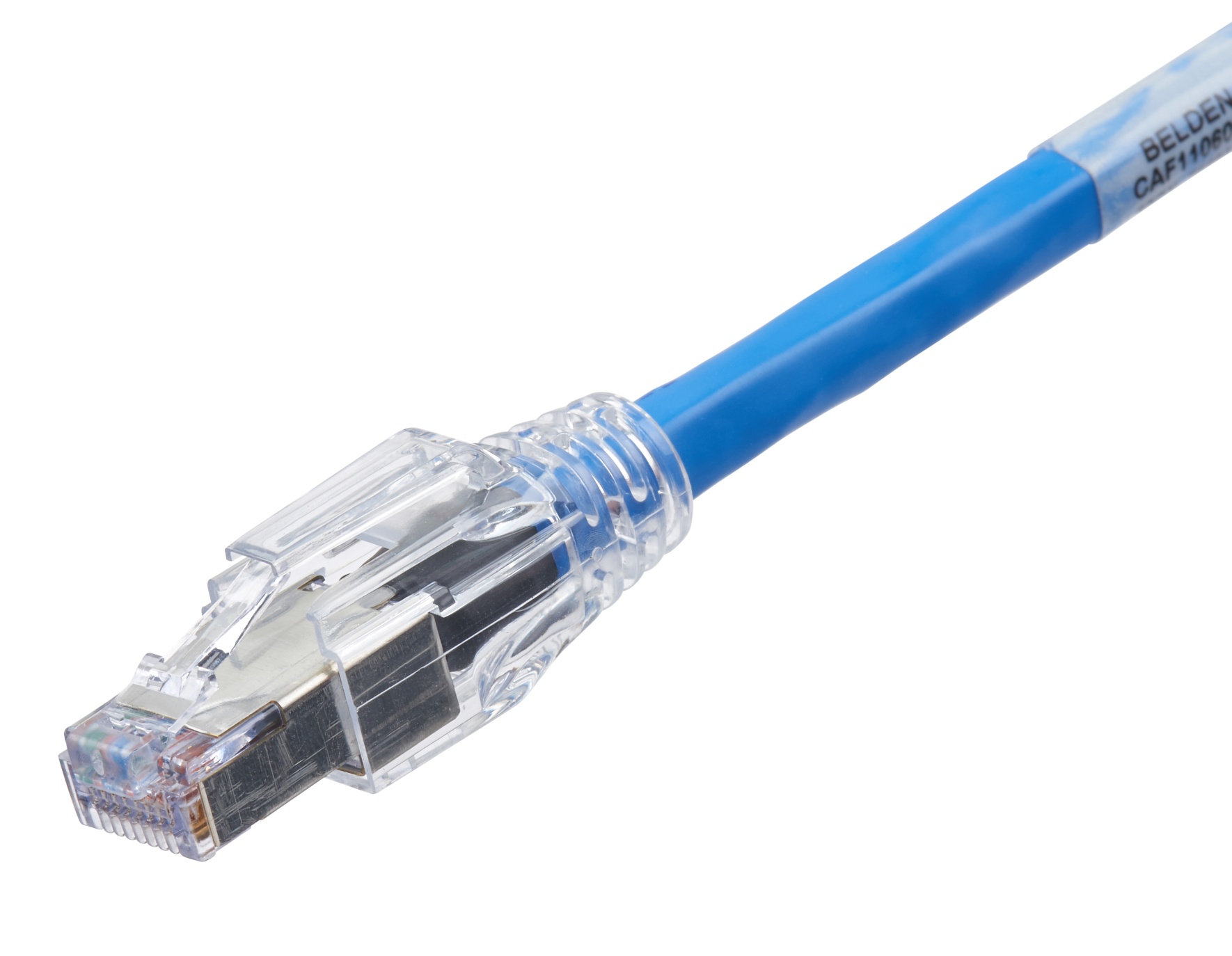

10GX F/UTP CMR Pigtails
|
Suitable Applications |
IBDN Shielded System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T |
|---|
|
Total Number of Pairs |
4 |
|---|
|
Overall Nominal Diameter |
0.275 in |
|---|---|
|
Packaging |
Individually packaged in a clear plastic bag. |
| Description | Material | Color |
|---|---|---|
| Boot | Lexan | Translucent |
| Conductor | BC - Bare Copper | |
| Front Connection | Blades Phosphor Bronze with 50u inch Gold over Nickel Plating | |
| Inner Jacket | PVC - Polyvinyl Chloride | |
| Insulation | PO - Polyolefin | |
| Outer Jacket | PVC - Polyvinyl Chloride |
|
Dielectric Strength |
1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
|
Min Bend Radius (Overall Cable) |
2.400 in |
|---|---|
|
Plug /Jack Compatibility |
RJ45 |
| Connection | Durabilities |
|---|---|
| Mated Connection | 750 Cycles |
|
UL Rating |
Riser |
|---|---|
|
Data Category |
Category 6A |
|
TIA/EIA Compliance |
Category 6A - TIA 568-C.2, Class EA - ISO/IEC 11801:2002 Ed.2 Amendment 2 |
|
Other Standards |
FCC Part 68, Subpart F, IEC 60603-7 |
|
Environmental Space |
Riser |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
|
Safety Listing |
c(UL)us Listed |
|---|
|
Related Parts |
10GX Shielded Modular Jacks and Couplers, 10GX Shielded Patch Panels, 10GX IDC Blocks |
|---|
|
Labeling |
Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length. |
|---|
|
Update and Revision |
Revision Number: 0.232 Revision Date: 05-10-2023 |
|---|
