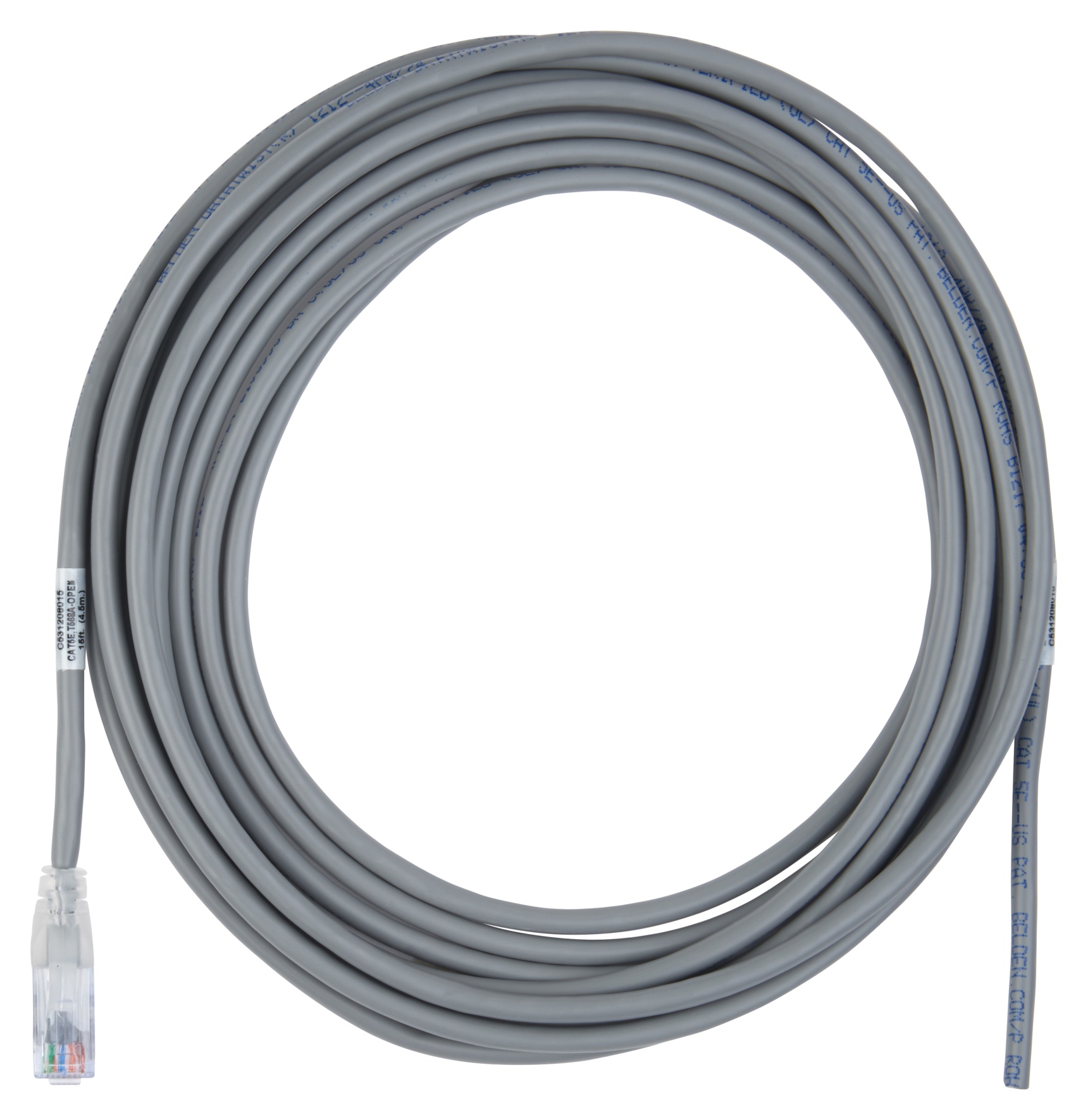

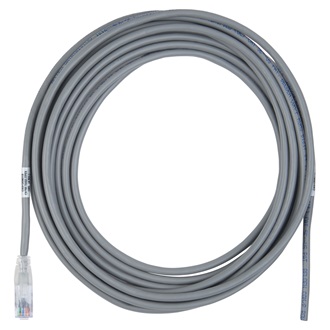

CAT5E UTP CMR Pigtails
Regions Available: Global
|
Suitable Applications |
IBDN System 1200, TIA Category 5E, ISO Class D, 1000BASE-T, 100BASE-T |
|---|
|
Total Number of Pairs |
4 |
|---|
|
Overall Nominal Diameter |
0.21 in |
|---|---|
|
Packaging |
Individually packaged in a clear plastic bag. |
| Description | Material | Color |
|---|---|---|
| Boot | Elastomer | Translucent |
| Conductor | BC - Bare Copper | |
| Front Connection | Blades Phosphor Bronze with 50u inch Gold over Nickel Plating | |
| Inner Jacket | PVC - Polyvinyl Chloride | |
| Insulation | PO - Polyolefin | |
| Outer Jacket | PVC - Polyvinyl Chloride |
|
Dielectric Strength |
1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
|
Min Bend Radius (Overall Cable) |
1.040 in |
|---|---|
|
Plug /Jack Compatibility |
RJ45 |
| Connection | Durabilities |
|---|---|
| Mated Connection | 750 Cycles |
|
UL Rating |
Riser |
|---|---|
|
Data Category |
Category 5e |
|
TIA/EIA Compliance |
Category 5E - TIA 568-C.2, Class D - ISO/IEC 11801:2002 Ed.2 Amendment 2 |
|
Other Standards |
FCC Part 68, Subpart F, IEC 60603-7 |
|
Environmental Space |
Riser |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
|
Safety Listing |
c(UL)us Listed |
|---|
|
Related Parts |
CAT5E Modular Jacks and Couplers, CAT5E Patch Panels, GigaBIX Connectors |
|---|
|
Labeling |
Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length. |
|---|
|
Update and Revision |
Revision Number: 0.147 Revision Date: 05-10-2023 |
|---|
| Item # | Color | Length |
|---|---|---|
| C531200025 | Black | 25 ft |
| C531206015 | Blue | 15 ft |
| C531206020 | Blue | 20 ft |
| C531206025 | Blue | 25 ft |
| C531206035 | Blue | 35 ft |
| C531206050 | Blue | 50 ft |
| C531206075 | Blue | 75 ft |
| C531206100 | Blue | 100 ft |
| C531306015 | Blue | 15 ft |
| C531306020 | Blue | 20 ft |
| C531306025 | Blue | 25 ft |
| C531306035 | Blue | 35 ft |
| C531306050 | Blue | 50 ft |
| C531306075 | Blue | 75 ft |
| C531306100 | Blue | 100 ft |
| C531208002 | Gray | 2 ft |
| C531208006 | Gray | 6 ft |
| C531208007 | Gray | 7 ft |
| C531208010 | Gray | 10 ft |
| C531208020 | Gray | 20 ft |
| C531208035 | Gray | 35 ft |
| C531208045 | Gray | 45 ft |
| C531208050 | Gray | 50 ft |
| C531208055 | Gray | 55 ft |
| C531208060 | Gray | 60 ft |
| C531208075 | Gray | 75 ft |
| C531208080 | Gray | 80 ft |
| C531208085 | Gray | 85 ft |
| C531208090 | Gray | 90 ft |
| C531208100 | Gray | 100 ft |
| C531208110 | Gray | 110 ft |
| C531208140 | Gray | 140 ft |
| C531308015 | Gray | 15 ft |
| C531308020 | Gray | 20 ft |
| C531308025 | Gray | 25 ft |
| C531308030 | Gray | 30 ft |
| C531308035 | Gray | 35 ft |
| C531308050 | Gray | 50 ft |
| C531308055 | Gray | 55 ft |
| C531308075 | Gray | 75 ft |
| C531308100 | Gray | 100 ft |
| C531205025 | Green | 25 ft |
| C531205050 | Green | 50 ft |
| C531202025 | Red | 25 ft |
| C531202050 | Red | 50 ft |
| C531302025 | Red | 25 ft |
| C531209015 | White | 15 ft |
| C531209020 | White | 20 ft |
| C531209025 | White | 25 ft |
| C531209035 | White | 35 ft |
| C531209050 | White | 50 ft |
| C531209075 | White | 75 ft |
| C531209100 | White | 100 ft |
| C531309015 | White | 15 ft |
| C531309020 | White | 20 ft |
| C531309025 | White | 25 ft |
| C531309035 | White | 35 ft |
| C531309050 | White | 50 ft |
| C531309075 | White | 75 ft |
| C531309100 | White | 100 ft |
| C531204025 | Yellow | 25 ft |
| C531204035 | Yellow | 35 ft |
| C531204050 | Yellow | 50 ft |
